Description
Extra Heavy-Duty
Durability
Double-Beveled, Reversible, and Hardened Cutting Edges for added durability and longevity.
Versatility
Choose optional manual or hydraulic angle, offset, and tilt adjustments to maneuver easily in the field.
Easy Connection
Parking stand featured on Heavy-Duty and Extra Heavy-Duty units for added convenience. Holds the unit upright and level to allow for an easier connection.
Request a Quote

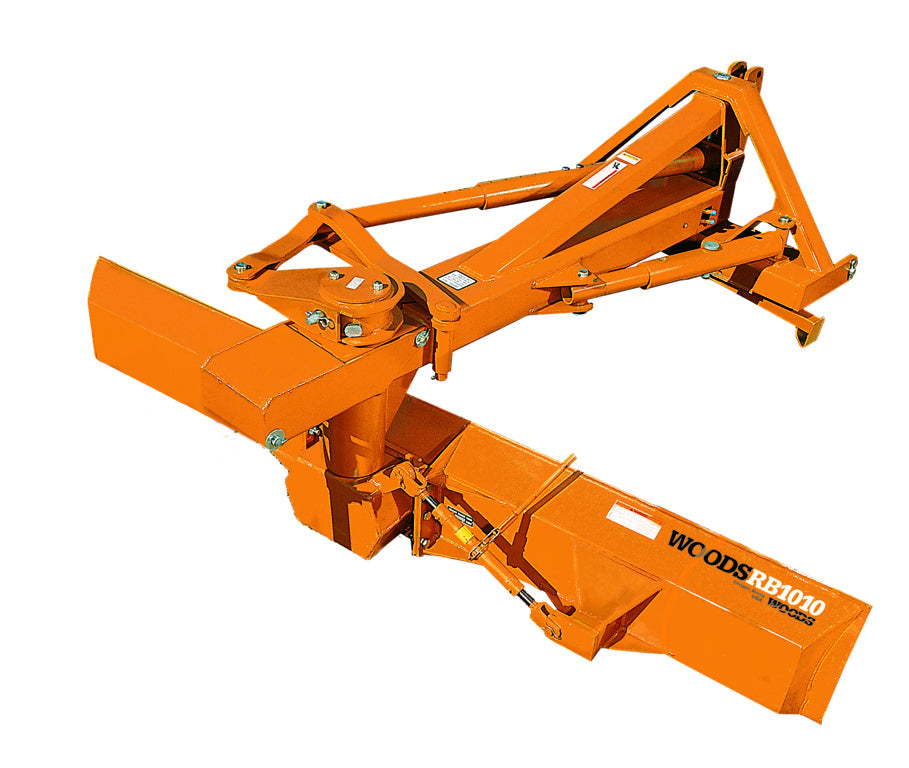

Woods RB1010
Thank you!
Your quote request has been received. We'll be in touch shortly.
Specifications
| Product Tier | Extra Heavy-Duty |
|---|---|
| Tractor Engine (HP) | 80-150 |
| Tractor Hitch | CAT 2 and CAT 3 |
| Working Width (in) | 119 |
| Moldboard Height (in) | 18 |
| Moldboard Thickness (in) | 0.25 |
| Approximate Weight (lbs) | 1,535 |
| Angle Adjustments (degrees) | up to 60 |
| Offset Adjustments (in) | up to 33 left or right |
| Tilt Adjustments (degrees) | up to 28 |
| Cutting Edge (in) | 0.50 x 6 |
| ASABE Quick-hitch Compatible | Yes |
| Parking Stand | Standard |
