Description
Professional
Easy Connection
Engineered Quick-Hitch Ready from the factory. No additional hardware is required to use your quick hitch, so you can get in the field and get to work.
Easy Maintenance
EZ-Change™ Blade System allows blade change in five steps with a 3/4″ wrench. No impact gun or torch required.
Unmatched Gearbox PROTECTION
10-year warranty including parts, labor, and seals. Gearbox also features Woods Exclusive Cool-Flow™ Lubrication System and Triple Seal™ Gearbox Protection. See how it works.
Request a Quote

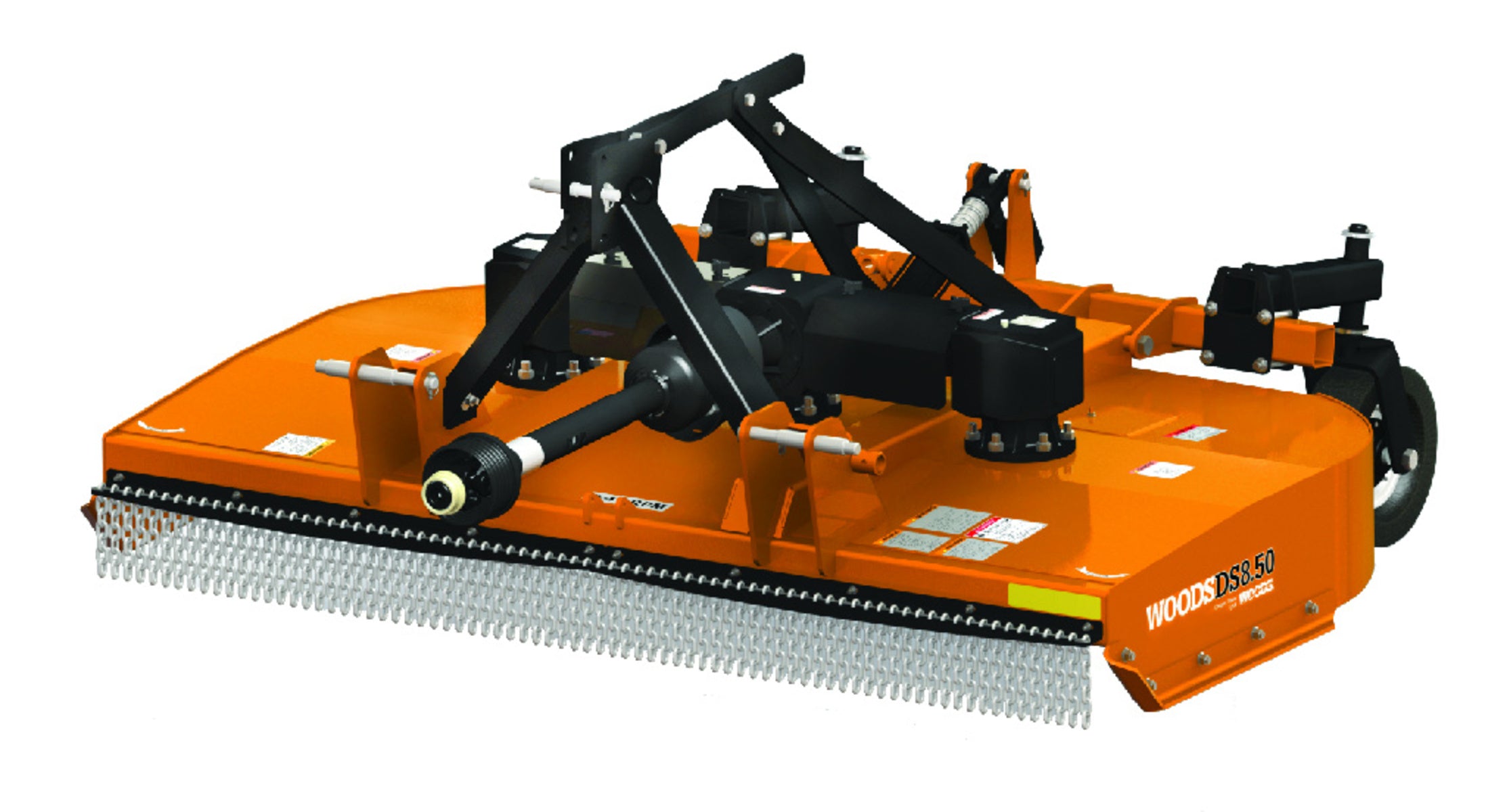

Woods DS8.50
Thank you!
Your quote request has been received. We'll be in touch shortly.
Specifications
| Product Tier | Professional |
|---|---|
| Tractor PTO (Minimum HP) | 40 |
| Tractor PTO Speed (rpm) | 540 or 1,000 |
| Hitch | pivoting clevis |
| Hydraulic Variable Offset (in) | N/A |
| Cutting Width (in) | 96 |
| Cutting Capacity Diameter (in) | 3 |
| Adjustable Cutting Height (in) | 2 – 12 |
| Blade Tip Speed (fpm) | 14,886 at 540 rpm |
| Blade Dimensions (in) | .5 x 4 |
| Deck Side Depth | Thickness (in) | 13 deep, .135 thick |
| Weight (lbs) | 2,205 |
| Wheel Selection | Laminated, severe-duty new ag; foam filled new ag, 15″ rims |
| Gearbox Rating | 205 center, 160 spindle *Gearbox horsepower ratings listed are based on field testing. |
| Optional Dual-Wheels | Yes |
| Quick-hitch Compatible | Yes |
| Gearbox Warranty | 10 years |
| Structure Warranty | 2 years |
| Driveline w/Slip Clutch | CAT 6 CV |
