Description
Professional
Tackle Tough Conditions
Optional mud scrapers prevent clogging for increased productivity in challenging conditions.
Prepare Optimal Seed Bed
Our unique tapered frame design balances individual disc gangs and only requires removing a single pin for easy disc angle adjustments. Quickly change your disc angle for more or less aggressive tillage to match your ideal seed bed.
Request a Quote

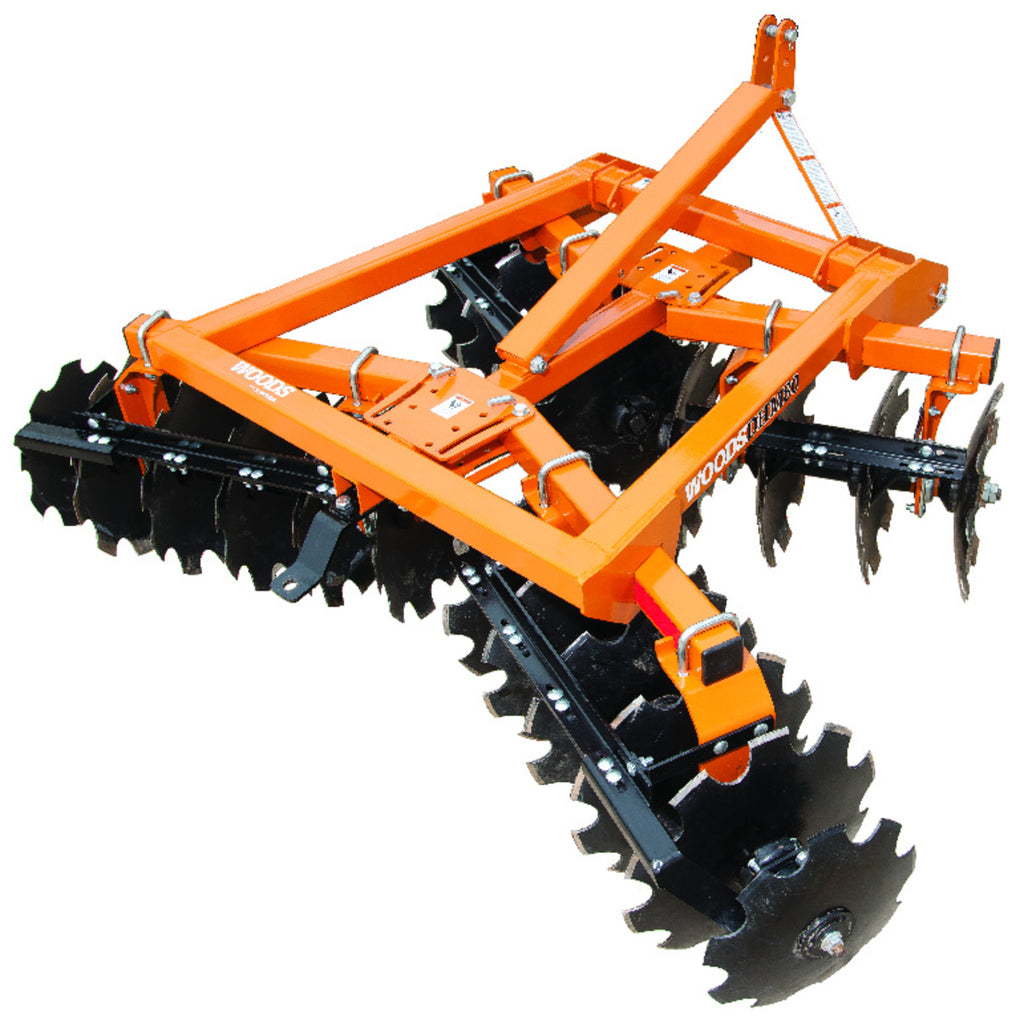

Woods DHM96
Thank you!
Your quote request has been received. We'll be in touch shortly.
Specifications
| Product Tier | Professional |
|---|---|
| Tractor Engine (HP) | 55-85 |
| Tractor Hitch | CAT 1 and 2 |
| Width (in) | 96 |
| Average Weight (lbs) - depending on blade type | 960 |
| Disc Blade Type | Notched; or combination smooth and notched |
| Average Weight Distribution per Blade (lbs) | 44 |
| Disc Diameter (in) | 20 |
| Disc Quantity | 22 |
| Disc Spacing (in) | 9 front, 7.5 rear |
| Gang Axle Diameter (in) | 1-1/8 square |
| Frame Construction (in) | 3 x 3 tube |
| Quick-hitch Compatible | Yes |
