Description
Professional
Save Seed
Get an exact seed rate before planting with Woods Exclusive Seed Calibration System. No wasted seed. No guesswork.
Save Time
Woods Exclusive system for one-pass planting allows you to prep your seed bed, plant your seed at different depths, and culti-pack for optimal seed to soil contact.
Plant with Precision
Choose between cool season or legume seed boxes. Select the right tillage tool for your project, and plant up to two types of seed at two depths simultaneously.
ATV/UTV Compatible
Optional tow kit allows you to plant with your ATV or UTV.
Request a Quote

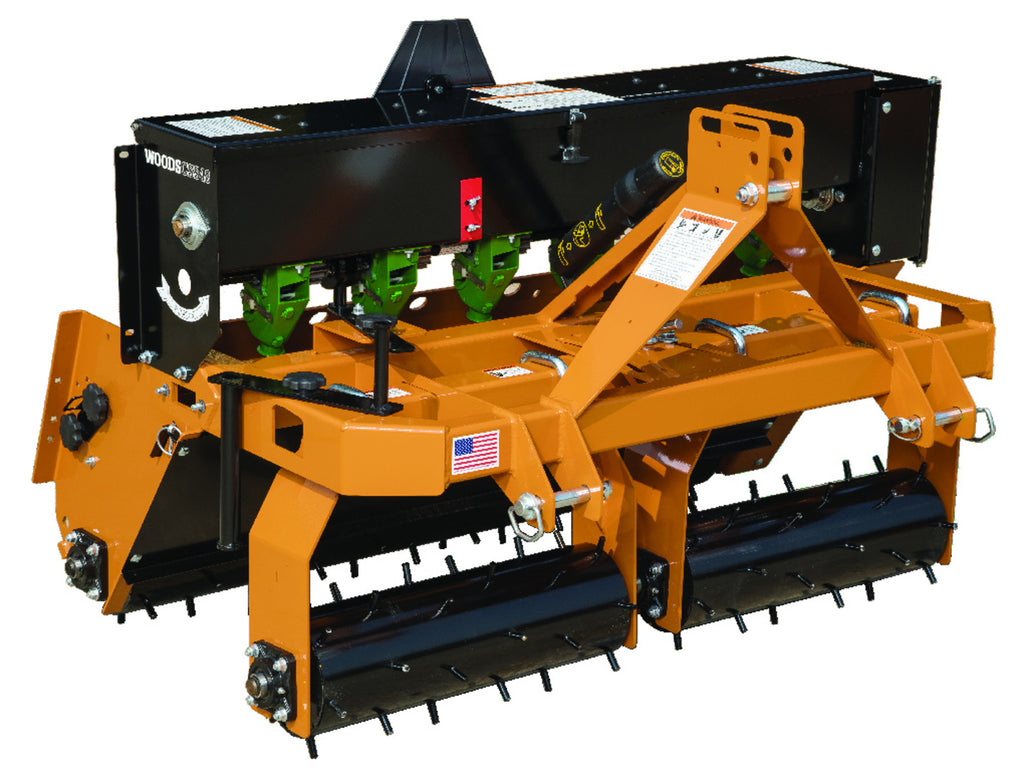

Woods CSS48
Thank you!
Your quote request has been received. We'll be in touch shortly.
Specifications
| Product Tier | Professional |
|---|---|
| Tractor Engine (HP) | 15-35 |
| Tractor Hitch | CAT 1 / limited CAT 1 |
| ATV/UTV Engine Size (cc) | Minimum 350 |
| Working Width (in) | 48 |
| Overall Width (in) | 57 |
| Weight with Seed, Depending upon Configuration (lbs) | 395-679 |
| Drive Type | Ground-driven spiked roller |
| Number of Seed Boxes Available | 1 or 2 |
| Seed Metering | 6 seed cups |
| Seed Box Ratio | 5.1:1 or 14.4:1 |
| Cool Season Seed Box with Agitator | Standard |
| Cool Season Seed Box Capacity (bushel) | 1 |
| Legume Seed Box | Optional |
| Legume Seed Box Capacity (bushel) | 1 |
| Front Tool Choices | 6 – 16 in notched disc blades or spiked roller |
| Calibration Tray | Standard |
| Crank Handle | Standard |
| Spring-loaded Trailing Cultipacker | Optional |
| Speed Ranges | Turf seed range 0-700 lbs/acre (cool season); food plot range 0-30 lbs/acre (legume) |
| Options | Fast/slow chain drive, Quick Hitch bushings, mud scrapers, seed stop plates, highway lights, tow kit |
| Quick Hitch Compatible | Add hitch pin bushings to make CAT 1 quick-hitch compatible |
| Woods C® | Compact/Subcompact |
