Description
Professional
The model is available in our 80 Year Anniversary Limited Edition Matte Black
#1 In Cut Quality
Enabled by deep cutting decks, high-lift blades and our exclusive baffling design. Read Study *Rated #1 in cut quality by rotary cutter owners and operators in a double-blind study of major brands in the category.
Easy Maintenance
EZ-Change™ Blade System allows blade change in five steps with a 3/4″ wrench. No impact gun or torch required. A large blade access window at the top of the deck let’s you easily access blades for simple maintenance. Features our new shimless and greaseable design.
Easy Connection
The Woods Exclusive Smartlift™ System holds your 80lb PTO driveline allowing you to easily connect and disconnect from the tractor.
Unmatched Gearbox PROTECTION
10-year gearbox warranty including parts, labor, and seals. Woods Exclusive Triple Seal™ Gearbox Protection and Cool-Flow™ Lubrication System to cool the gearbox, prevent leaks, and reduce downtime. See how it works.
Request a Quote

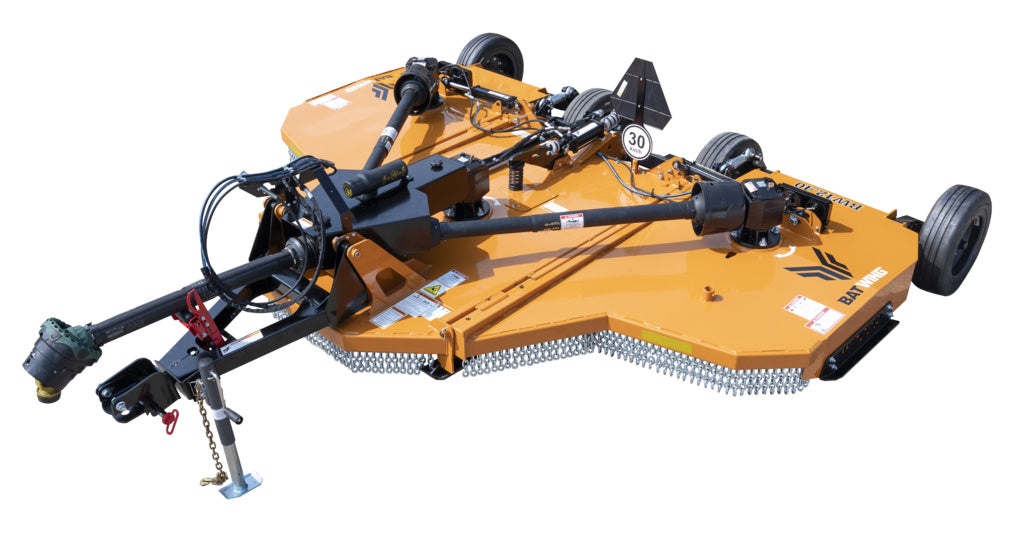

Woods BW12.40
Thank you!
Your quote request has been received. We'll be in touch shortly.
Specifications
| Product Tier | Professional |
|---|---|
| Tractor PTO HP | 40-120 |
| Adjustable Cutting Height (in) | 2 to 12 |
| Cutting Capacity Diameter (in) | 2.5 |
| Cutting Width (ft) | 12 |
| Blade Tip Speed (fpm) | 15,523 center / 15,459 wing |
| Blade Size (in) | .5 x 4 |
| Weight / Tongue Weight (lbs) | 3,050 / 1,055 |
| Transport Width (in) | 101 |
| Hydraulics Wing Flex (degrees) | 90 up, 22 down |
| Side Skirt (in) | 11 deep, 7 ga thick |
| Stump Jumper Type | Oval |
| Deck Thickness (in) | 10 ga |
| Wheel Type | 21 inch laminated, 21 inch Severe-duty ag, 21 inch Severe-duty ag foam-filled, 25.5 inch Severe-duty ag, 25.5 inch Severe-duty ag foam-filled |
| Suspension | Spring on center section |
| Driveline Rating | CAT 4 CV main, CAT 4 wing |
| Gearbox Rating (HP) | 160 splitter / 100 center and wing |
| Output Shaft Size (in) | 2 |
| Structure Warranty | 2 years |
| Gearbox Warranty (yrs) | 10 |
| Options | Dual-wheels on center deck |
