Description
Professional
#1 In Cut Quality
Enabled by deep cutting decks, high-lift blades, and new features like Woods Exclusive Level Lock™ Technology that ensures a more level cut height across rugged terrain. Read Cut Quality Study.
Easy Maintenance
EZ-Change™ Blade System allows blade change in five steps with a 3/4″ wrench. No impact gun or torch required.
Easy Connection
The Woods Exclusive Smartlift™ System holds holds your 80lb PTO driveline allowing you to easily connect and disconnect from the tractor.
Unmatched Gearbox PROTECTION
10-year warranty including parts, labor, and seals. Gearbox also features Woods Exclusive Cool-Flow™ Lubrication System and Triple Seal™ Gearbox Protection. See how it works.
Request a Quote

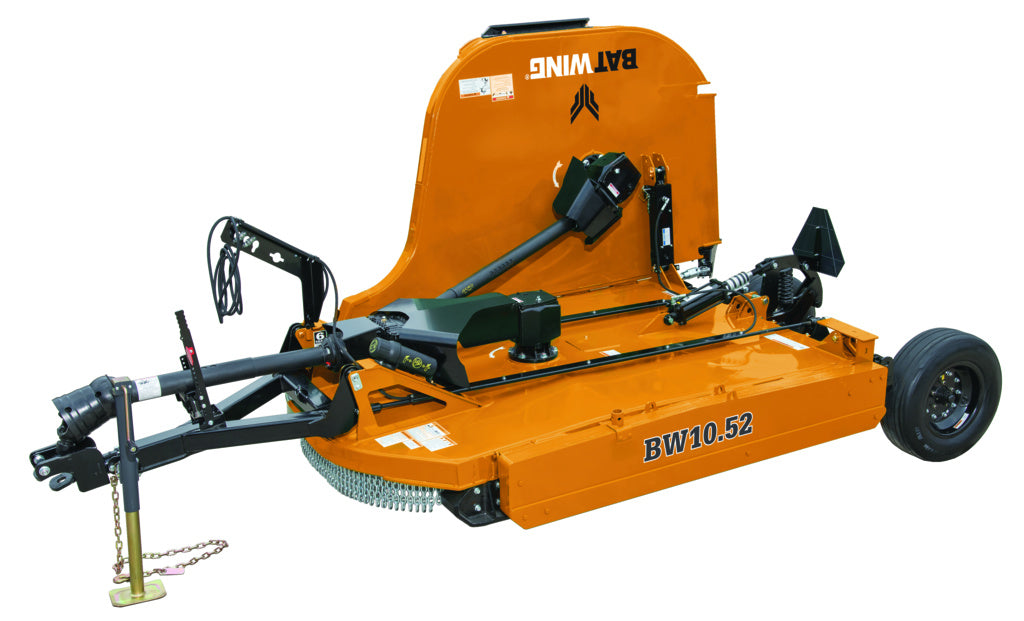

Woods BW10.52
Thank you!
Your quote request has been received. We'll be in touch shortly.
Specifications
| Product Tier | Professional |
|---|---|
| Tractor PTO HP | 45-200 |
| Tractor PTO (rpm) | 540 or 1,000 |
| Hitch Type | Swivel clevis hitch |
| Adjustable Cutting Height (in) | 2 to 15 |
| Cutting Capacity Diameter (in) | 3 |
| Cutting Width (ft) | 10 |
| Cutting Area Shielding | Single or Double Chain |
| Blade Tip Speed (fpm) | 15,526 (wing), 15,904 (center) at 540 rpm 15,708 (wing), 15,422 (center) at 1,000 rpm |
| Blade Size (in) | .5 x 4 |
| Weight; varies with tires and options (lbs) | 3,950-4,725 |
| Tongue Weight (lbs) | 1,935 |
| Transport Width (in) | 93 |
| Hydraulics Wing Flex (degrees) | 90 up, 22 down |
| Side Skirt (in) | .25 thick x 13 deep |
| Stump Jumper Type | Oval |
| Deck Thickness (in) | 0.135 |
| Wheel Type | 21 in. laminated, 25 in. severe-duty Ag, 25 in. severe-duty Ag foam-filled, 27 in. severe-duty Ag foam-filled, 29 in. used aircraft |
| Driveline Rating | CAT 6 CV main, CAT 4 wing |
| Gearbox Rating (hp) | 210 splitter / 200 center and wing |
| Gearbox Warranty (yrs) | 10 |
| Output Shaft Size (in) | 2 dia |
| Options | Double row chain shielding, Dual wheels, Towing Eye |
| Structure Warranty | 2 years |
