Description
Standard Plus
#1 In Cut Quality
Uses the same cutting technology as our #1-rated BW12.40 and BW15 series Batwing® cutters. Enabled by deep cutting decks, high-lift blades, and our exclusive baffling design.
Easy Maintenance
EZ-Change™ Blade System allows blade change in five steps with a 3/4″ wrench. No impact gun or torch required.
Optional Easy Connection Kit
The Woods Exclusive SmartLift™ System and hydraulic hose holder are available with an optional Easy Connection Kit. The SmartLift™ System holds holds your 80lb PTO driveline allowing you to easily connect and disconnect from the tractor.
Unmatched Gearbox PROTECTION
10-year warranty including parts, labor, and seals. Gearbox also features Woods Exclusive Cool-Flow™ Lubrication System and Triple Seal™ Gearbox Protection. See how it works.
Request a Quote

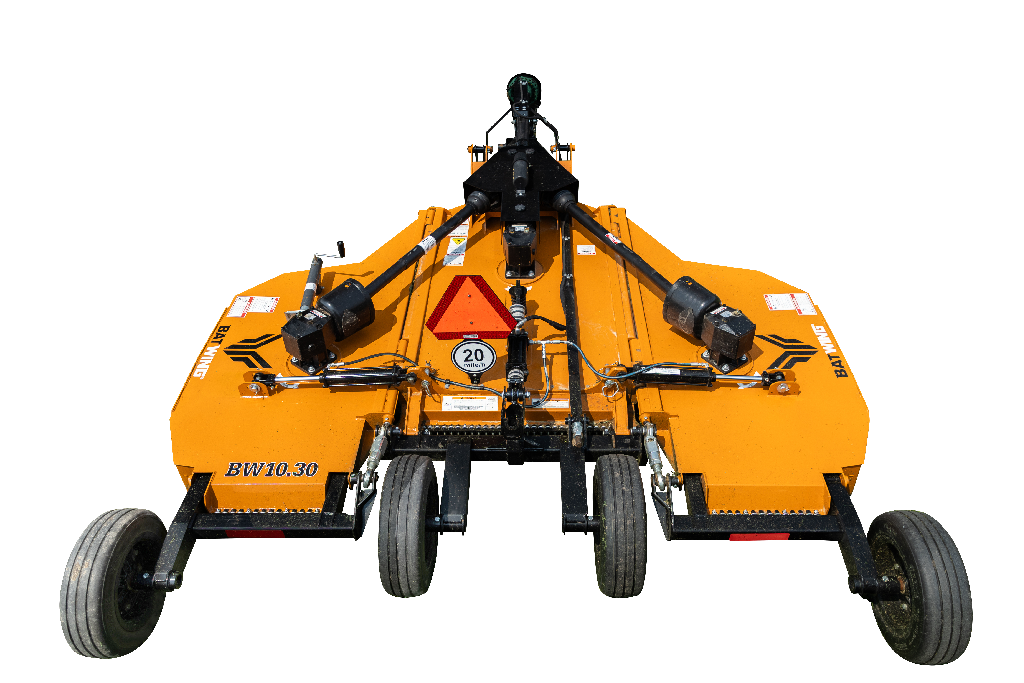

Woods BW10.30
Thank you!
Your quote request has been received. We'll be in touch shortly.
Specifications
| Product Tier | Standard Plus |
|---|---|
| Tractor PTO HP | 25-60 |
| Adjustable Cutting Height (in) | 2 to 12 |
| Cutting Capacity Diameter (in) | 1.5 |
| Cutting Width (ft) | 10 |
| Blade Tip Speed (fpm) | 13,100 center / 15,800 wing |
| Blade Size (in) | .5 x 4 High Lift |
| Weight/Tongue Weight (lbs) | 2,173 / 745 |
| Transport Width (in) | 82 |
| Hydraulics Wing Flex (degrees) | 90 up, 22 down |
| Side Skirt (in) | 10 deep, 7 ga thick |
| Stump Jumper Type | Oval |
| Deck Thickness (in) | 11 ga |
| Wheel Type | 21” laminated, 21” used aircraft, 21” Severe-duty ag, 21” Severe-duty ag foam-filled |
| Driveline Rating | CAT 4 CV main, CAT 3 wing |
| Gearbox Rating (hp) | 160 splitter / 75 center and wing |
| Gearbox Warranty (yrs) | 10 |
| Output Shaft Size (in) | 1.57 dia |
| Options | Easy Connection Kit with an adjustable hydraulic hose holder and SmartLift™ System. Highway Lighting Kit. |
| Structure Warranty | 2 years |
