Description
Heavy-Duty
Greater Visibility
Curved-boom design allows you to dig with greater visibility and control.
Fits Many Tractors
Subframe kits and three-point mounts available for many tractor models.
Industry-leading 2-year Tractor Protection
Peace of mind with an unmatched 2-year tractor warranty when a properly installed Woods subframe is purchased from Woods.
Request a Quote

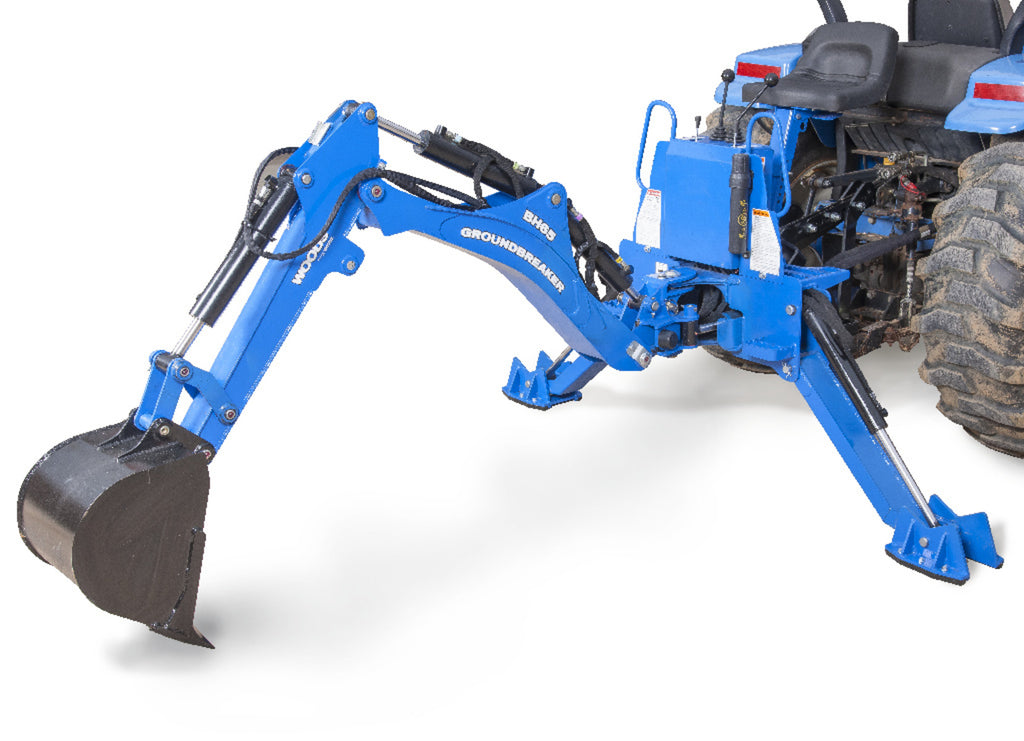

Woods BH65
Thank you!
Your quote request has been received. We'll be in touch shortly.
Specifications
| Product Tier | Heavy-Duty |
|---|---|
| Tractor PTO HP | 15-30 |
| Digging Depth - 2' Flat Bottom (in | ft) | 78, 6.5 |
| Digging Depth - 8 ft Flat Bottom (in) | 52 |
| Reach from Swing Pivot (in) | 102 |
| Loading Height (in) | 60 |
| Loading Reach (in) | 33.5 |
| Transport Height (in) | 66.5 |
| Transport Length (in) | 42 |
| Approx. Weight - Frame Only (lbs) | 695 |
| Swing Arc (degrees) | 150 |
| Stabilizer Spread - Up (transport) (in) | 52 |
| Stabilizer Spread - Down (operating) (in) | 83 |
| Relief Pressure (psi) | 2,030 |
| Bucket Digging Force (lbs) | 2,800 |
| Dipperstick Digging Force (lbs) | 1, 590 |
| Bucket Rotation (degrees) | 180 |
| Trenching Bucket Widths (in) | 9, 12, 16 |
| Thumb | Optional mechanical |
| Flip-Over Stabilizer Pads | Standard |
| Stabilizer Street Pads | Optional |
| Ditching Bucket | N/A |
| Cemetery / Bellhole Bucket | N/A |
| Warranty | 2 year limited, including the tractor |
| Woods C® | Compact/Subcompact |
