Description
Standard Plus
Greater Durability
Woods Exclusive Z-shaped, high-strength steel bumper is twice as thick as competitive models for backing over tough brush.
Easy Maintenance
EZ-Change™ Blade System allows blade change in five steps with a 3/4″ wrench. No impact gun or torch required.
Easy Connection
Quick-Hitch Ready from the factory. No additional hardware is needed to use your quick hitch.
Unmatched Gearbox PROTECTION
10-year warranty including parts, labor, and seals. Gearbox also features Woods Exclusive Cool-Flow™ Lubrication System and Triple Seal™ Gearbox Protection. See how it works.
Request a Quote

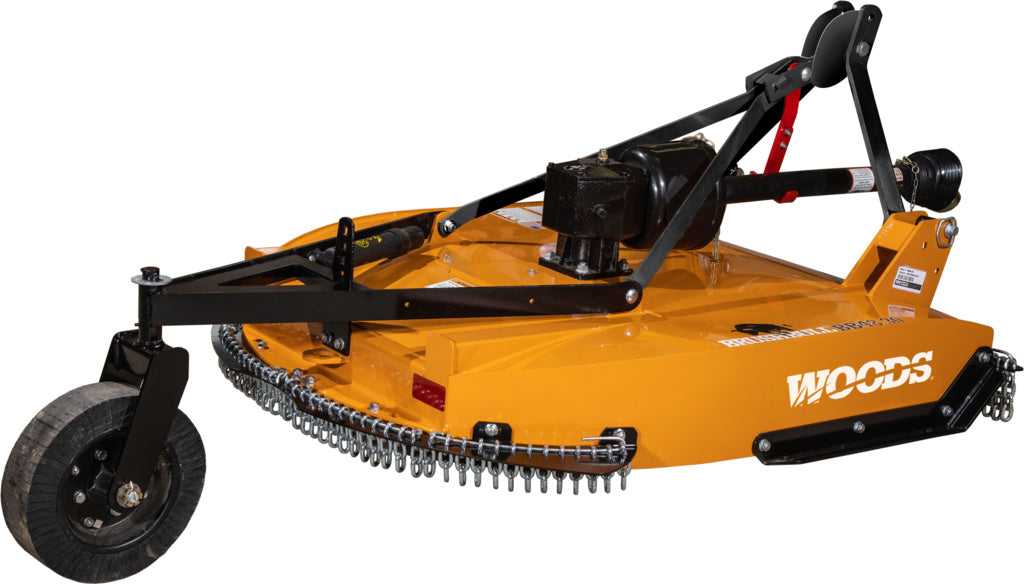

Woods BB48.30
Thank you!
Your quote request has been received. We'll be in touch shortly.
Specifications
| Product Tier | Standard Plus |
|---|---|
| Tractor PTO 540 rpm (HP) | 15-50 |
| Hitch | CAT 1 clevis |
| Adjustable Cutting Height (in) | 1 to 9 |
| Cutting Capacity Diameter (in) | 2 |
| Cutting Width (in) | 48 |
| Blade Tip Speed (fpm) | 13,000 |
| Blade Size (in) | .50 x 4 |
| Blade Carrier | Oval stump jumper |
| Deck Thickness (in) | 0.105 |
| Side Frame Depth / Thickness (in) | 10.5 / .135 |
| Frame and Deck Support (in) | 3 x 3 Tube |
| Weight w/ Chain Shielding (lbs) | 635 |
| Output Shaft Diameter (in) | 1.57 |
| Gearbox HP | 65 |
| Transport Width (in) | 55 |
| Overall Length (in) | 86 |
| Deck Construction | Smooth top, sloped |
| Blade Dimensions (in) | 1/2 x 4 |
| Tractor PTO Speed (rpm) | 540 |
| Quick-Hitch Ready | Yes |
| Driveline Protection | Slip-clutch |
| Skid Shoes | Full-length, replaceable |
| Rear Bumper | Z-channel |
| Gearbox Warranty | 10 year limited |
| Structure Warranty | 2 years |
