Description

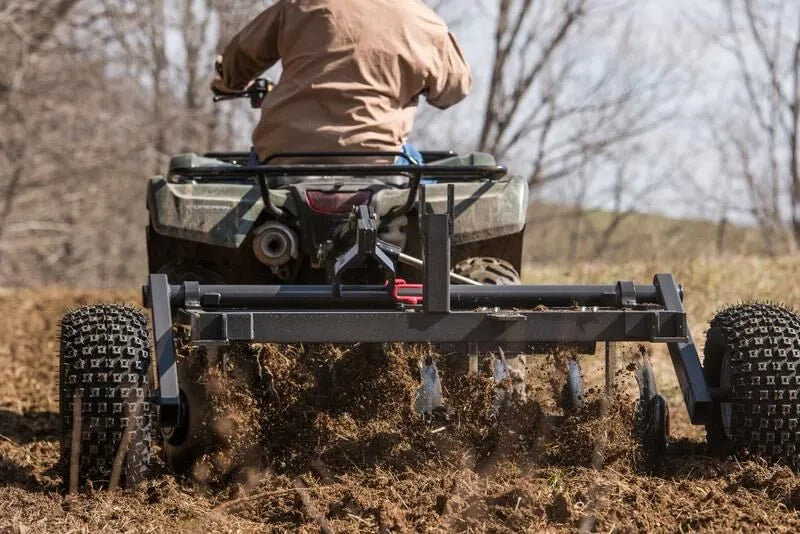

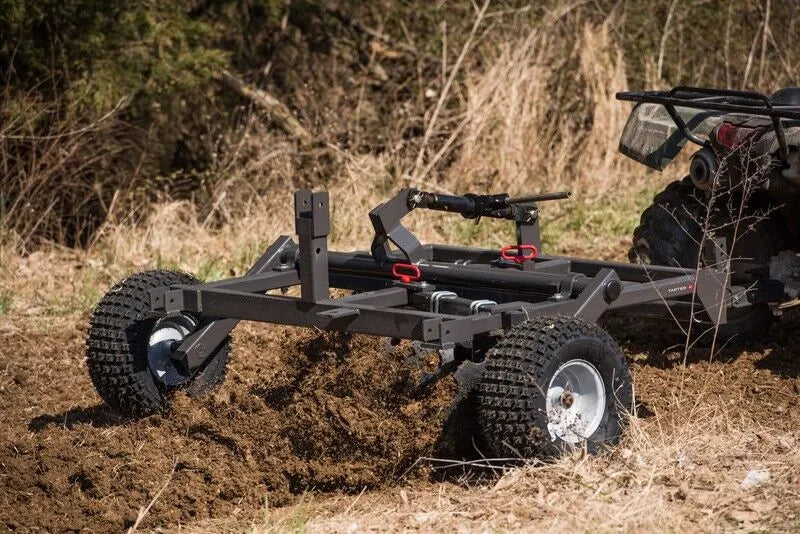

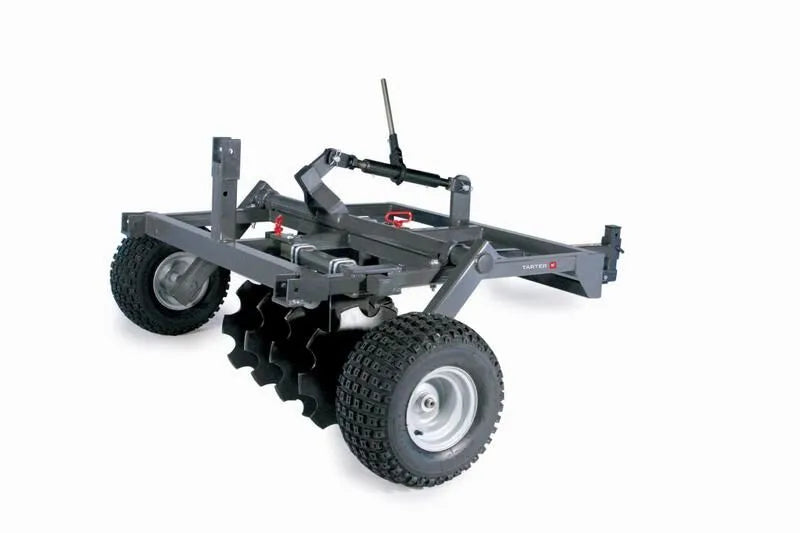

The durable, corrosion-resistant 8-blade disc harrow cuts through and breaks up even the most compacted soil. Adjustable depth and disc angles leaves you in control. The eight 16” scalloped blades provide a 42” to 44” cutting width. A tubular steel frame with 13” 4-ply tubeless tires rotate out of the way when tilling and makes it easy to tow along paths or roadways. Note: Requires a 2” ball for hookup.
Request a Quote
Tarter 8-Blade Disc Harrow
Thank you!
Your quote request has been received. We'll be in touch shortly.
Specifications
Ball Hitch: 2 in.
Working Width: 48 in.
Number Of Disc Blades : 8 disc (4 per gang)
Disc Blade Types: Adjustable 16 in., 3.175 mm notched
Disc Blade Spacing: 7.5 in.
Disc Axle Bearing Type: Replaceable sealed, 2 per gang
Gang Angle: 4 hole adjustment (0, 7.5, 15, 22.5 degree)
Gang Tube : 2x2 square tubing
Part: ATVTD8
Length: 61 in.
Width: 76 in.
Iconic Cffv 6306 Approx Weight: 430 lbs
Iconic Cffv 6306 Height: 30 in.
Color: GRAY
Working Width: 48 in.
Number Of Disc Blades : 8 disc (4 per gang)
Disc Blade Types: Adjustable 16 in., 3.175 mm notched
Disc Blade Spacing: 7.5 in.
Disc Axle Bearing Type: Replaceable sealed, 2 per gang
Gang Angle: 4 hole adjustment (0, 7.5, 15, 22.5 degree)
Gang Tube : 2x2 square tubing
Part: ATVTD8
Length: 61 in.
Width: 76 in.
Iconic Cffv 6306 Approx Weight: 430 lbs
Iconic Cffv 6306 Height: 30 in.
Color: GRAY
