Description

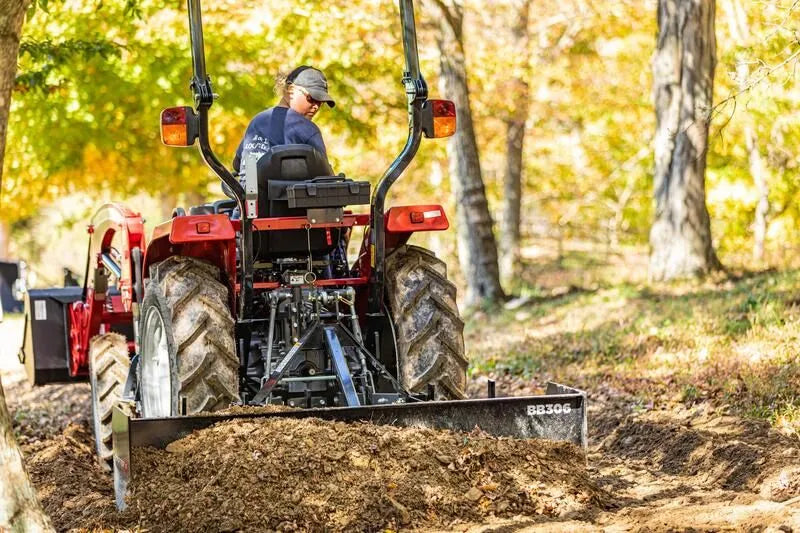

The Tarter 300 Series Box Blade features a stronger A-frame design than the 100 and 200 series models and is perfect for collecting gravel and smoothing over rough spots. It’s the perfect tool to solve problems with ruts, washouts, and potholes; plus, it’s great for leveling driveways. Put your tractor in reverse and use the rear blade to push around dirt and gravel.

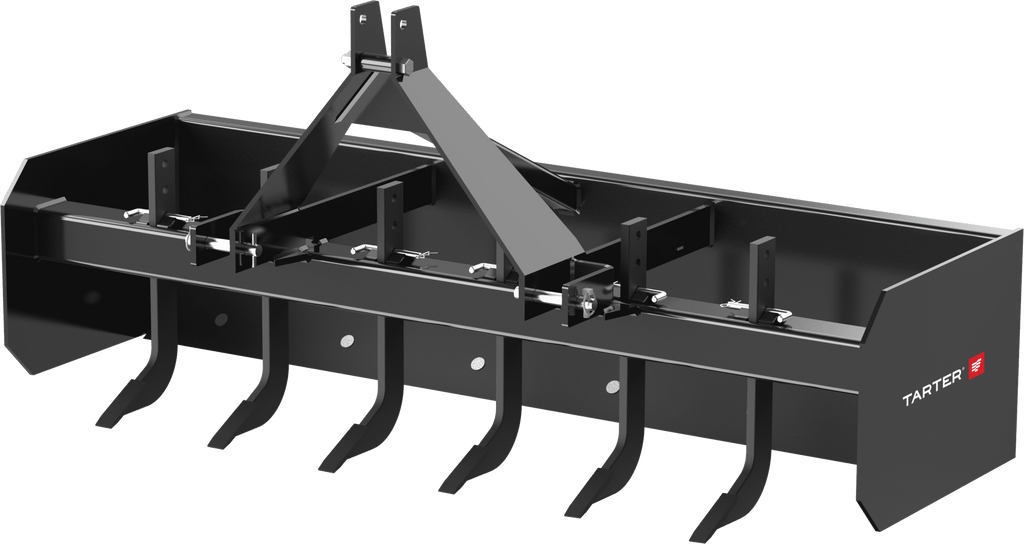

This implement is equipped with six 4 position heavy duty ripper shanks to break up the toughest ground. The heavy duty shank beam is 4″ square tube with 1/4″ thick walls that provides rigidity to the 0.313″ side plates. A 16.95″ moldboard height gives this box blade plenty of capacity.
Cat 1 and Quick Hitch compatible and ideally suited to tractors 20-50 HP. Also available in a 7’ model.
Request a Quote

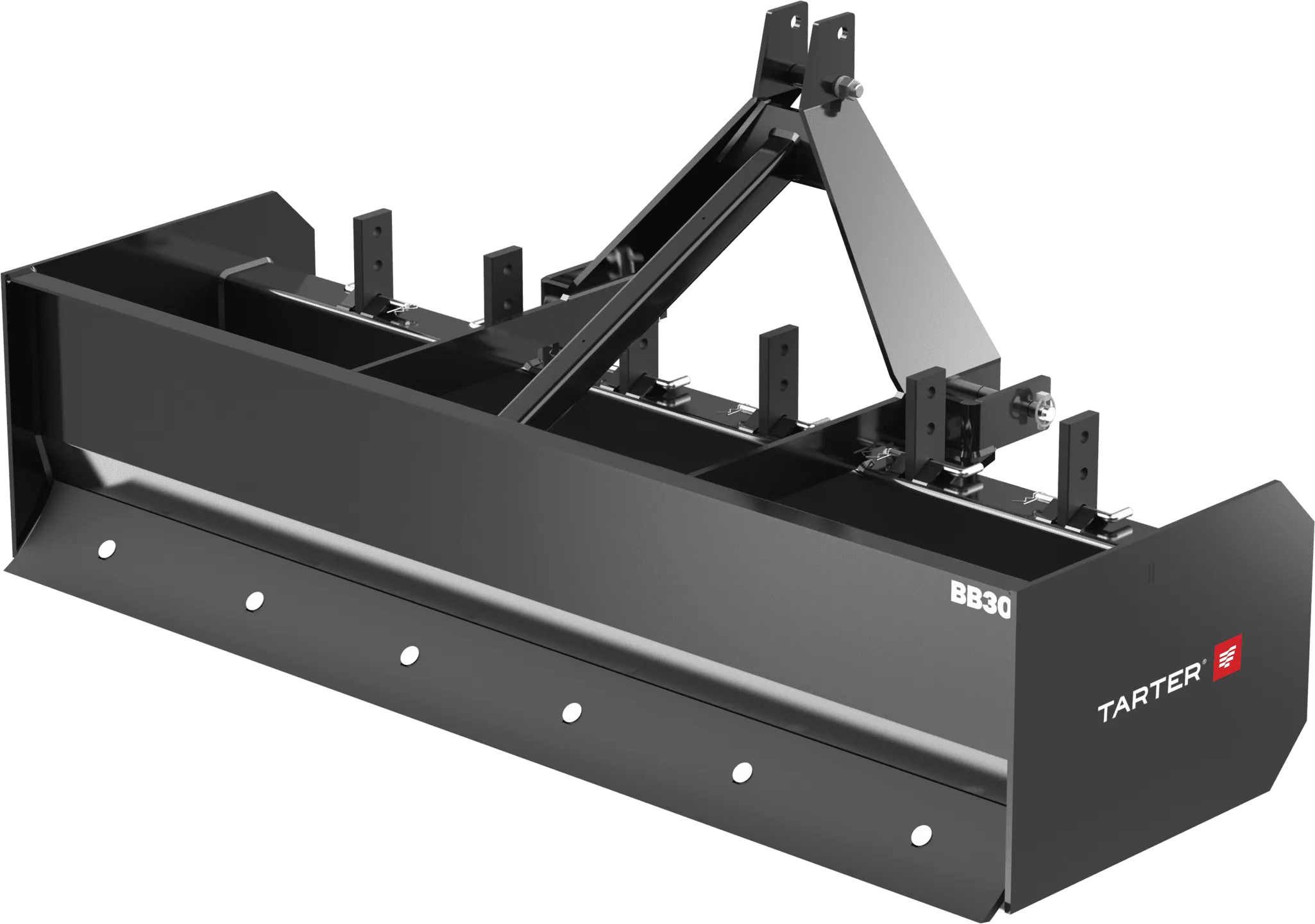

Tarter 300 Series 6 ft. Box Blade
Thank you!
Your quote request has been received. We'll be in touch shortly.
Specifications
Hitch Type : Cat 1
Working Width: 73.5 in.
Moldboard Height: 16.95 in.
Side Panels: 0.313 in. thick
Depth Of Bucket: 22 in.
Number Of Shanks: 6
Vertical Shank Position: 4 position (1.5 in. increments from 2.7 in. above side plates to 1.8 in. below)
A-frame Material: Formed and Welded Steel
Cutting Edges: 2- 0.375 in. x6 in. high carbon heat treated blades (replaceable)
Shank Beam : 4 in. square tubing 0.25 in. thick
Warranty: 1 Year
Part: BB306BL
Iconic Cffv 6306 Approx Weight: 459 lbs
Iconic Cffv 6306 Height: 34.16 in.
Color: BLACK
Quick Hitch Compatible: Yes
Related Content: 1
