Description
Tarter’s 5 ft. Land Grader is designed with two parallel grading blades positioned at a 10 degree angle. Both 0.375″x6″ high carbon heat-treated blades are reversible and replaceable. It features adjustable skid shoes and boasts a heavier frame construction than previous models.
This 5 ft. land grader is Cat 1 and quick hitch compatible and ideally suited to tractors 25-50 HP.
Also available as a 6′ model.
Request a Quote

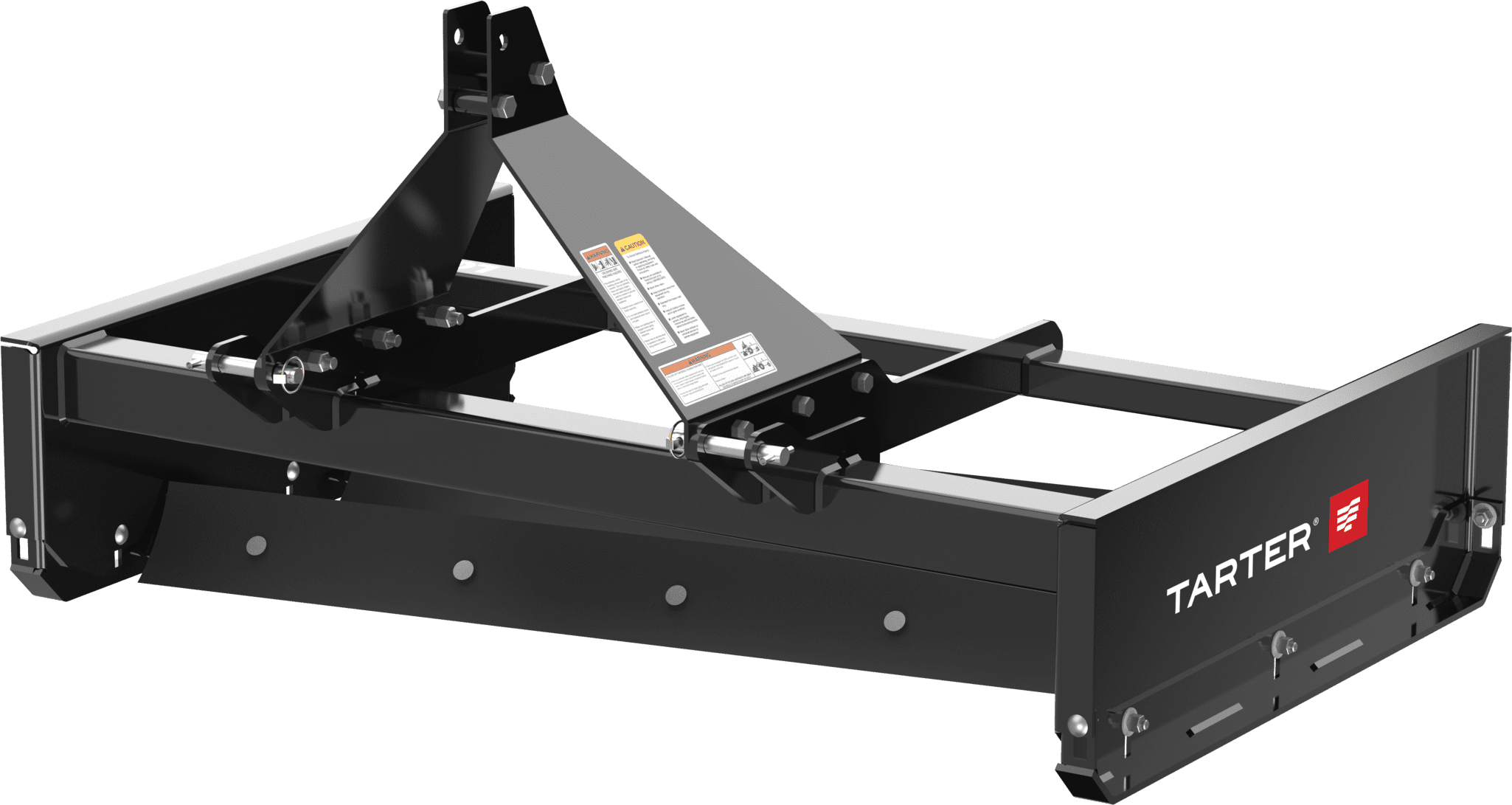

Tarter 200 SERIES 5 FT. LAND GRADER
Thank you!
Your quote request has been received. We'll be in touch shortly.
Specifications
Tractor Horsepower: 25-50
Hitch Type : Cat 1
Working Width: 60 in.
Cutting Edges: 2
Part: LG215BL
Length: 48 in.
Width: 65 in.
Iconic Cffv 6306 Approx Weight: 430 lbs
Iconic Cffv 6306 Height: 35 in.
Quick Hitch Compatible: Yes
Warranty: 1 Year
Height To Hitch Pins: 16 in.
Side Panel Length: 44 in.
Side Panel Height: 14.5 in.
Side Panel Thickness: .25 in. with Formed Edges
Adjustable Skid Shoe Thickness: .375 in.
Main Front Beam: 4 in. x 4 in. x .25 in. Tubing
Cutting Edge Features: Reversible and Replaceable, .375 in. x 6 in. High Carbon Heat Treated Blades
Cutting Edge Placement: Two Parallel Grading Blades Positioned at 10 Degree Angle
Skid Shoe Adjustment: Infinitely Adjustable Blade Depth from 0 to 1.5 in. via Skid Shoes
Hitch Style: Clevis with Pin
