Description
If you have gardening or food plot projects, the 100 Series 4 ft. Rotary Tiller quickly cultivates, aerates, and stirs up the soil to prep your land properly for seed or planting.
Adjustable skid shoes allow for tilling depths up to 7″ after multiple passes, and the reversible tine rotation option breaks up the toughest soil. A cast iron top gearbox and formed steel side gearbox house forged and hardened steel gears.
With a heavy-duty slip clutch, there’s less worry about damaging the PTO if the implement jams on a rock or foreign object. If you do though the self-sharpening, heat-treated cutting tines are durable, yet replaceable.
The Tarter 100 Series 4 ft. Rotary Tiller is Cat 1 and Quick Hitch compatible, ideally suited to tractors 15-35 PTO HP.
Request a Quote

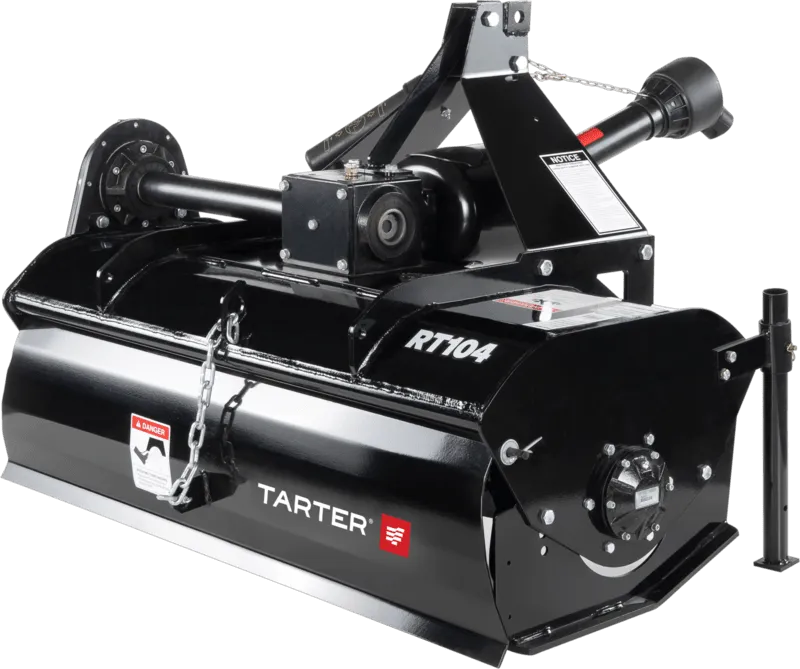

Tarter 100 Series 4 ft. Rotary Tiller
Thank you!
Your quote request has been received. We'll be in touch shortly.
Specifications
Hitch Type : Limited Cat 1
Working Width: 46.5 in.
Working Depth: 7 in.
Driveline: 540 RPM Slip Clutch Protection
Number Of Flanges On Rotor : 6
Number Of Tines Per Flange: 4
Rotor Rotation: Reversible (FWD/ REV)
Rotor Shaft Speed: 211 rpm @ 540 rpm PTO
Skid Shoes: adjustable (0.4 in., 1.4 in.,2.4 in.)
Top Gearbox Construction: Cast Iron Housing, Precision Forged Steel Gears
Side Drive Construction: Formed Steel Housing, Hardened Steel Gears
Top Gearbox Lubrication: EP 80-90W gear oil
Side Drive Lubrication: EP 80-90W gear oil
Warranty: 1 Year
Part: RT104BL
Width: 51.5 in.
Iconic Cffv 6306 Approx Weight: 470 lbs
Color: BLACK
Quick Hitch Compatible: Yes
