Description

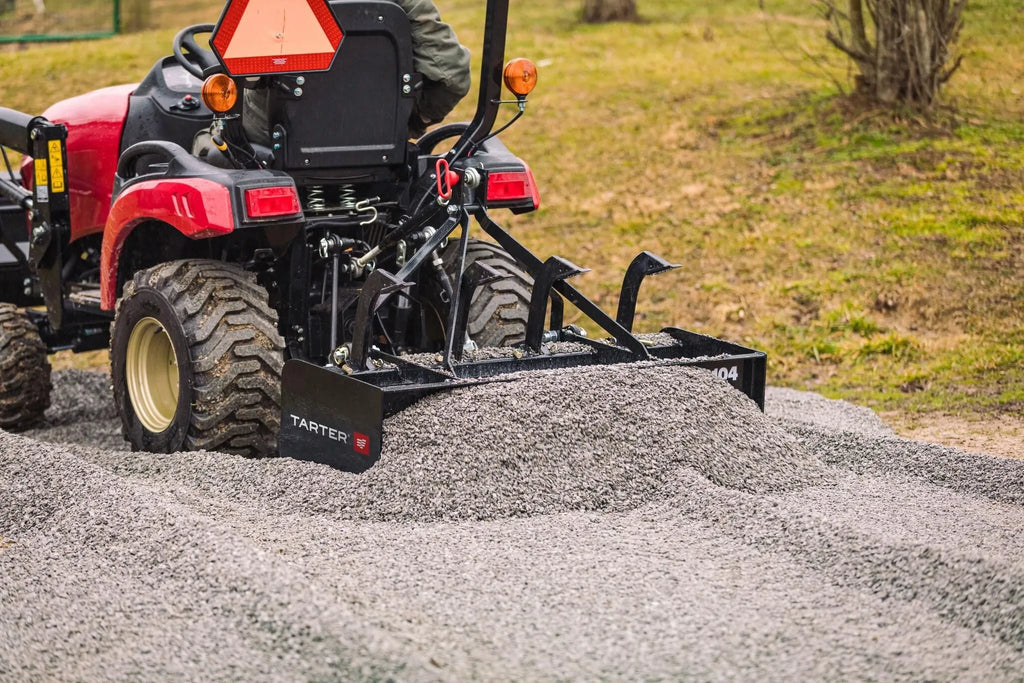

The 100 Series4 ft. Box Blade is the go-to implement for working gravel, topsoil, mulch, and manure. This 4-foot implement can break up tough ground and smooth or level out rough spots.

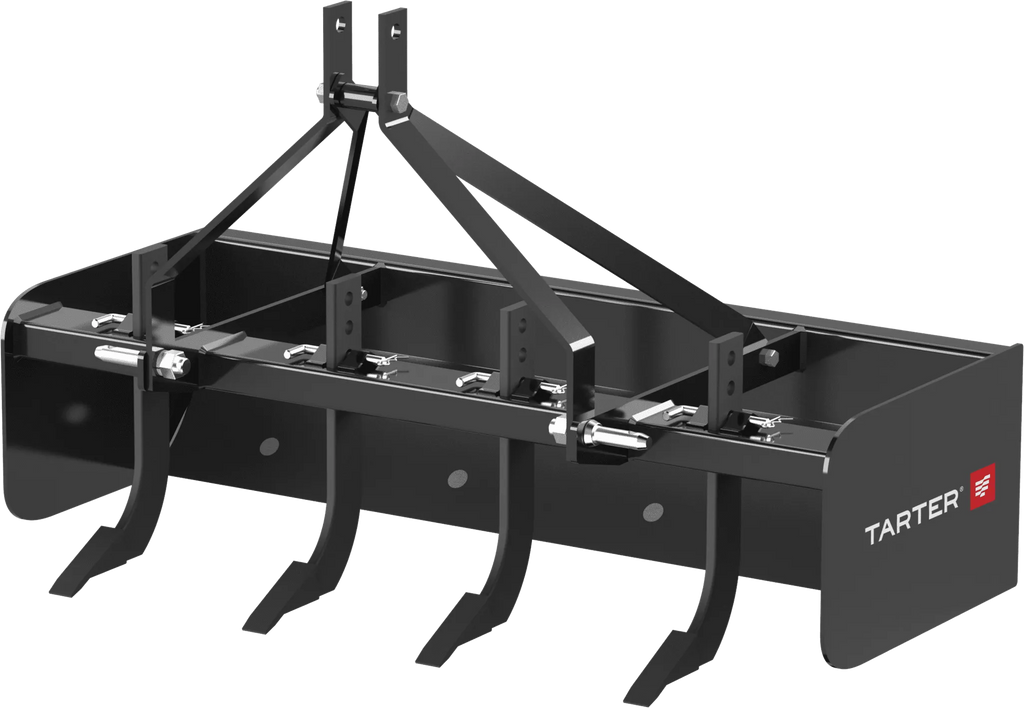

The 4 ripper shanks on the 2×4 in. steel shank beam can be adjusted to three depth levels.
Both front and rear blades are 6 in. high and replaceable.
The 18 in. box depth and 12.75 in. moldboard height gives you plenty of capacity.
The 4 ft. Box Blade is Cat 1 and Quick Hitch compatible and ideally suited to tractors 15-28 HP.
Request a Quote

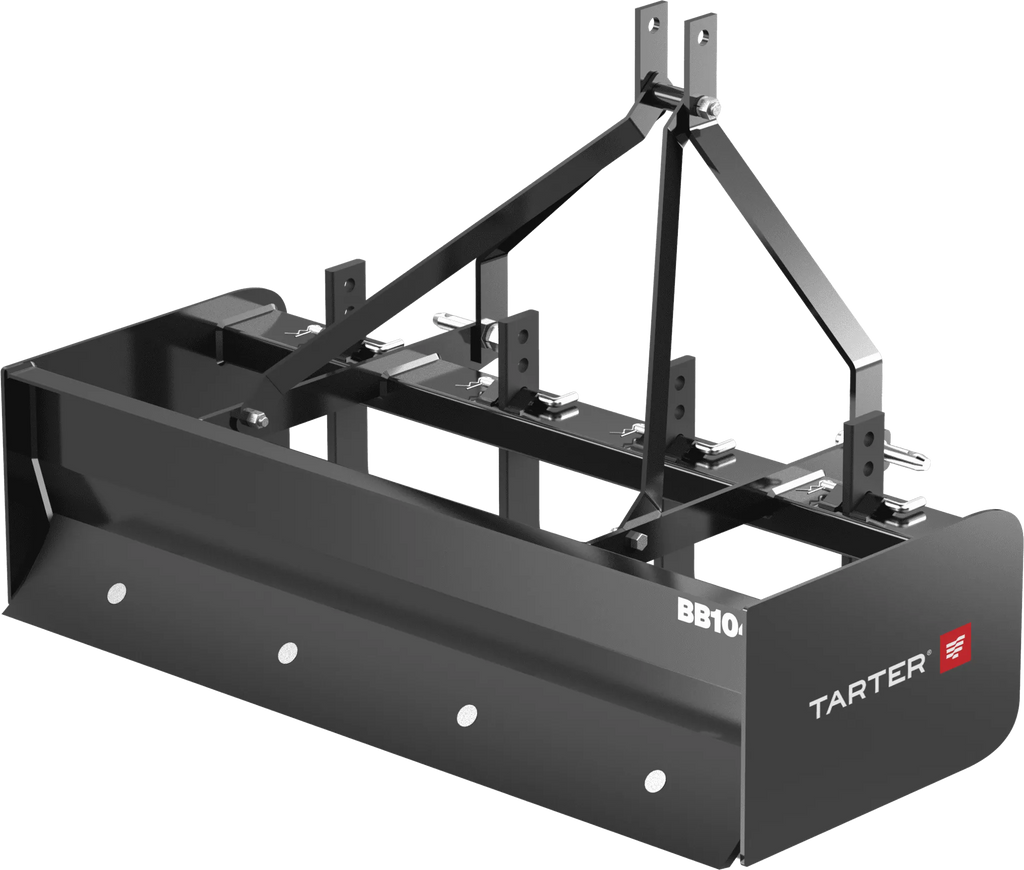

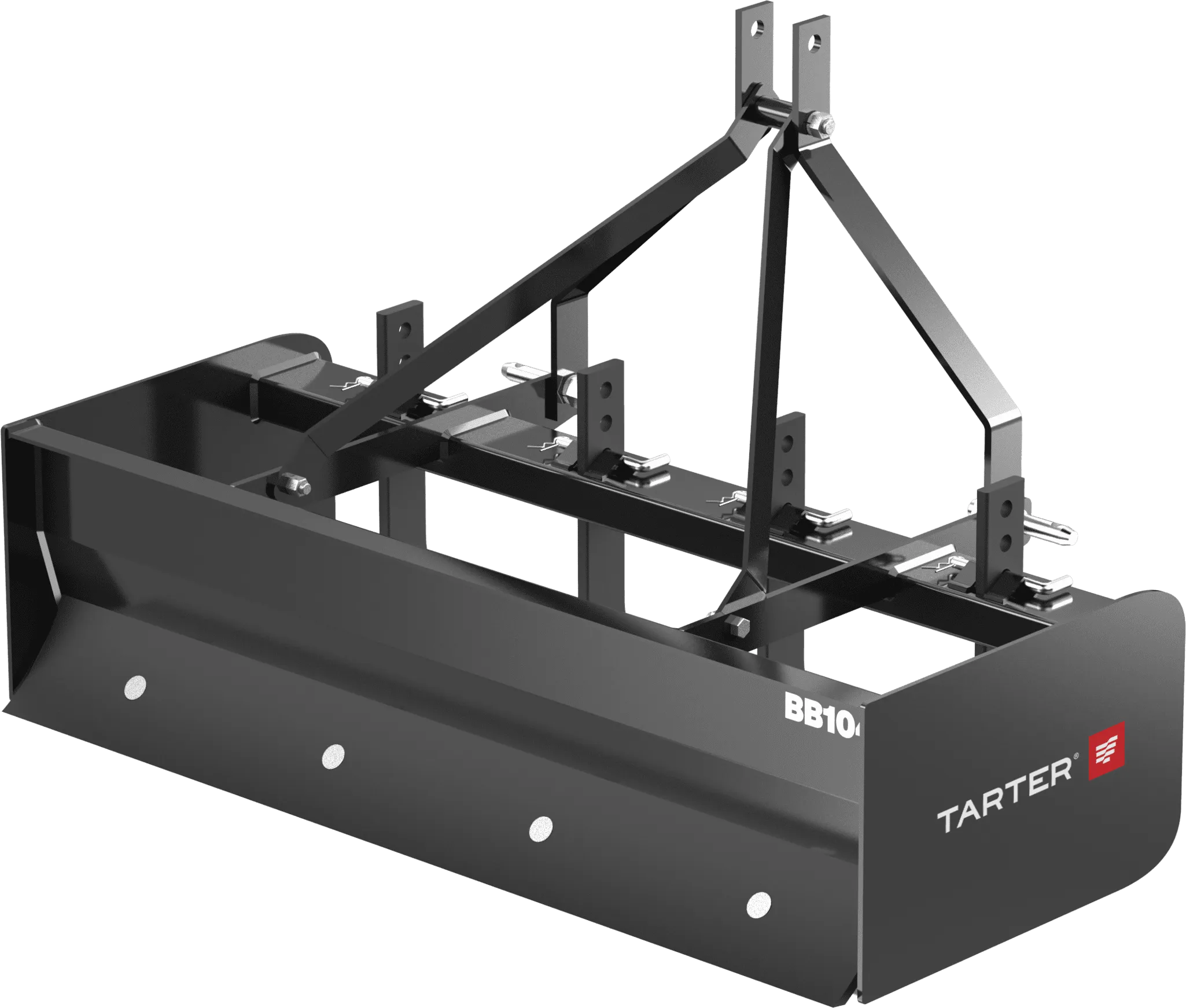

Tarter 100 Series 4 ft. Box Blade
Thank you!
Your quote request has been received. We'll be in touch shortly.
Specifications
Tractor Horsepower: 15-28
Hitch Type : Limited Cat 1
Working Width: 49.25 in.
Moldboard Height: 12.75 in.
Side Panels: 0.25 in. thick
Depth Of Bucket: 18 in.
Number Of Shanks: 4
A-frame Material: 0.375 in. steel
Cutting Edges: 2- 0.375 in. x6 in. high carbon heat treated blades (replaceable)
Shank Beam : 2 in. x4 in. rectangle tubing 0.25 in. thick
Warranty: 1 Year
Part: BB104BL
Iconic Cffv 6306 Approx Weight: 245 lbs
Iconic Cffv 6306 Height: 31 in.
Color: BLACK
Quick Hitch Compatible: Yes
