Description

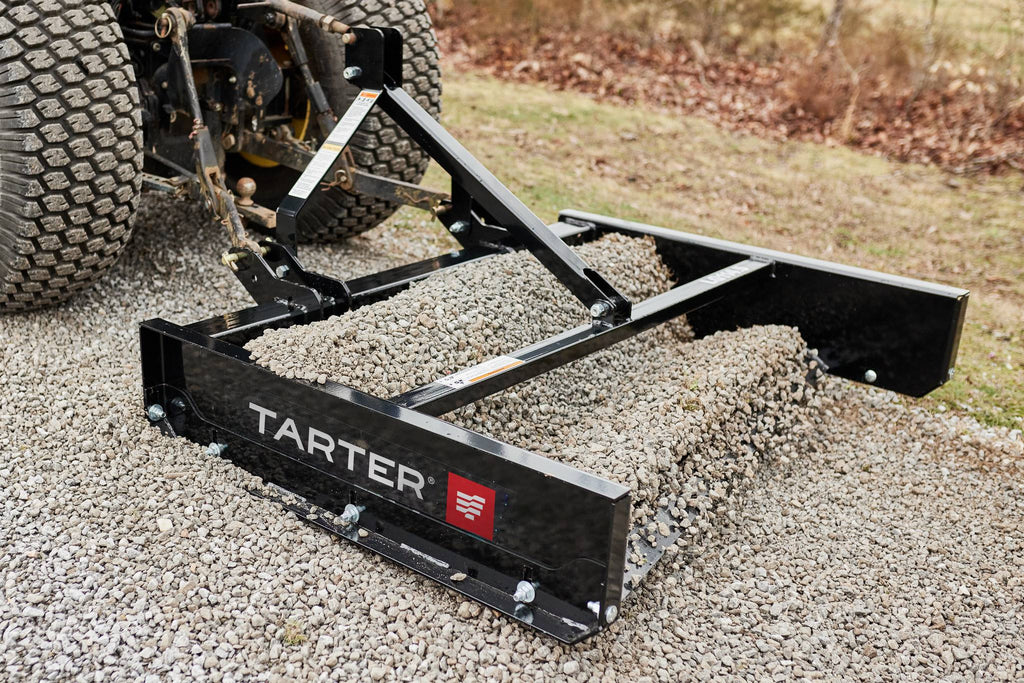

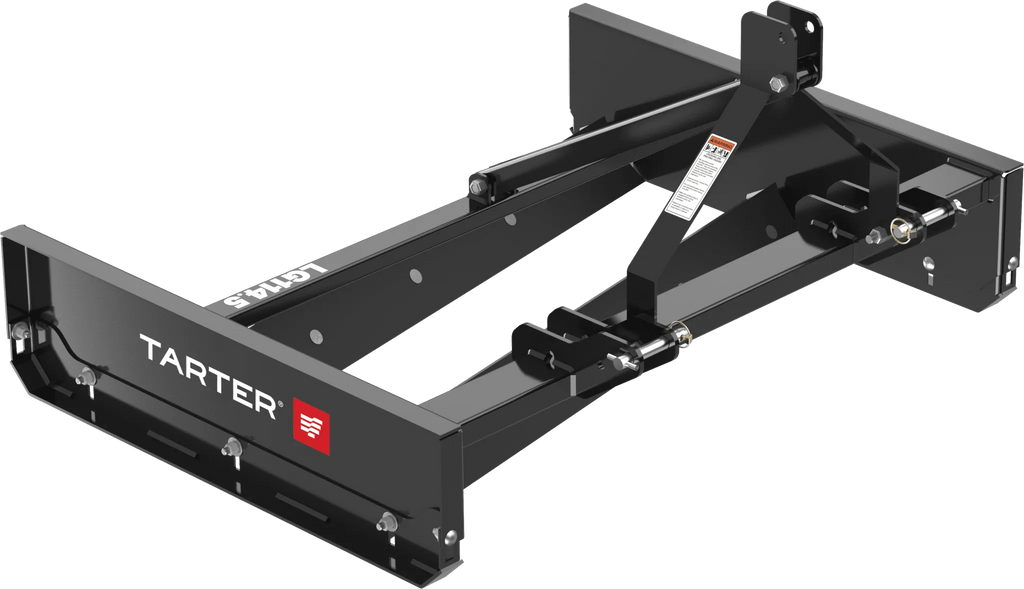

Tarter’s 4.5′ Land Grader has a Limited Category 1 hitch that fits most sub-compact tractors. It features adjustable skid shoes and updated angle and spacing of the dual cutting blades for enhanced material flow. The updated design also boasts a heavier frame construction than previous models. All Tarter Land Graders come with two 0.375″x6″ high carbon heat-treated blades that are reversible and replaceable.
Request a Quote

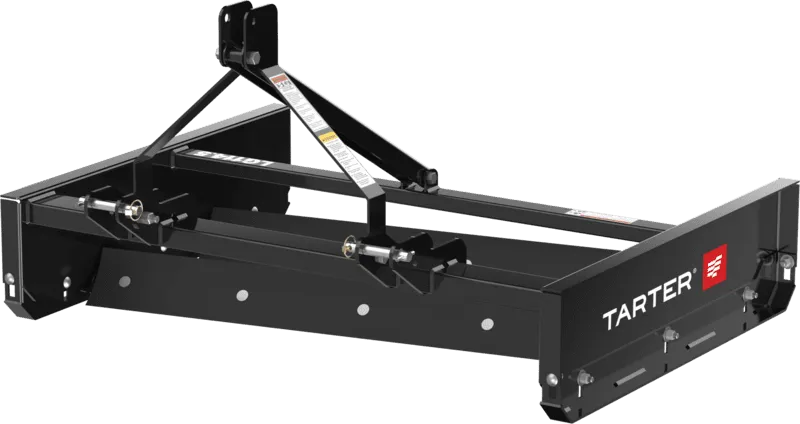

Tarter 100 SERIES 4 1/2 FT. LAND GRADER
Thank you!
Your quote request has been received. We'll be in touch shortly.
Specifications
Tractor Horsepower: 18-30
Hitch Type : Cat 1 Limited
Working Width: 54 in.
Cutting Edges: 2
Part: LG114.5BL
Length: 48 in.
Width: 58 in.
Iconic Cffv 6306 Approx Weight: 278 lbs
Iconic Cffv 6306 Height: 33 in.
Quick Hitch Compatible: Yes
Warranty: 1 Year
Height To Hitch Pins: 14 in.
Side Panel Length: 44 in.
Side Panel Height: 12 in.
Side Panel Thickness: .18 in. with Formed Edges
Adjustable Skid Shoe Thickness: .25 in.
Main Front Beam: 2 in. x 4 in. x .25 in. Tubing
Cutting Edge Features: Reversible and Replaceable, .375 in. x 6 in. High Carbon Heat Treated Blades
Cutting Edge Placement: Two Parallel Grading Blades Positioned at 10 Degree Angle
Skid Shoe Adjustment: Infinitely Adjustable Blade Depth from 0 to 1.5 in. via Skid Shoes
Hitch Style: Clevis with Pin
