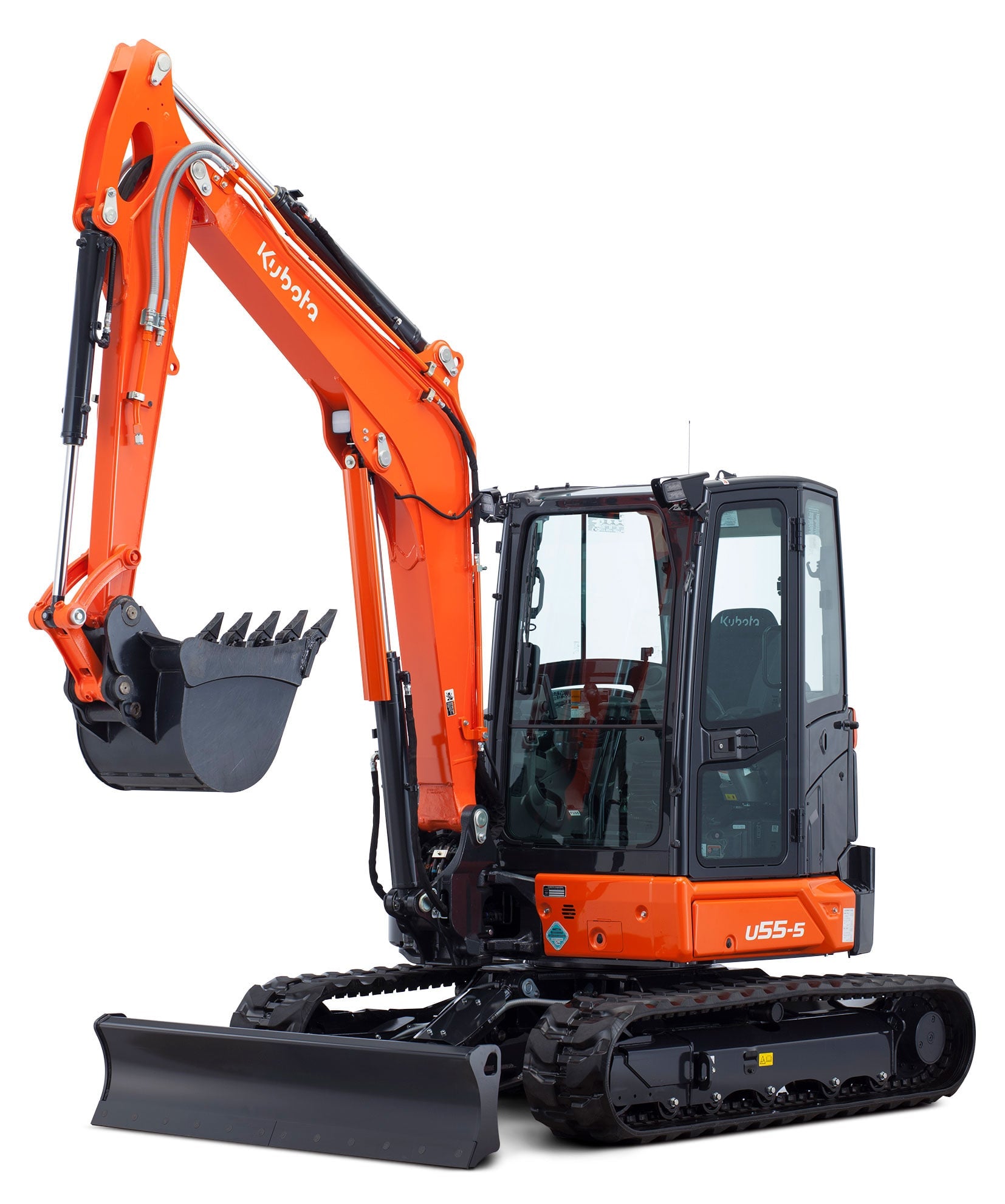

Kubota U55-5
Thank you!
Your quote request has been received. We'll be in touch shortly.
Specifications
- Engine Model Kubota V2607-CR-E5
- Horsepower (gross) 47.6
- Displacement (cu. in.) 159.6
- Overall Length, ft (mm) 17ft 1in (5435)
- Overall Height, ft (mm) 8ft in (2550)
- Overall Width, ft (mm) 6ft 5in (1960)
- Min. Ground Clearance, in (mm) 12.2in (310)
- Crawler Length, ft (mm) 8ft 2in (2500)
- Pump Capacity, GPM (LPM) 14.8 (56.1) Variable x 2 / 9.8 (37.0) Gear x 1
- Auxiliary Hydraulics Flow Rate, GPM (LPM) 19.8 (75) / 9.8 (37)
- Bucket Breakout Force, lbs (kgf) 10172 (4614)
- Arm Breakout Force, lbs (kgf) 5869 (2662)
- Traveling Speed: High, mph (kph) 3.0 (4.8)
- Traveling Speed: Low, mph (kph) 1.7 (2.8)
- Ground Contact Pressure psi, kgf (cm2) Rubber: 4.6 (0.32) / 4.6 (0.33), Angle blade rubber: 4.7 (0.33) / 4.8 (0.34), Angle blade steel: 4.7 (0.33) / 4.7 (0.33)
- Blade Width, ft (mm) 6ft 5.2in (1960)
- Blade Height, in (mm) 16.1in (410), Angle Blade (in/mm): 16.7in (425)
- Hydraulic Oil Reservoir / System, gal (l) 11.1 (41.9) / 20.3 (77)
- Fuel Reservoir, gal (l) 17.4 (66)
- Operating Weight, lbs (kg) Rubber: 12247 (5555) / 12456 (5650), Angle blade rubber: 12721 (5770) / 12930 (5865), Angle blade steel: 13007 (5900) / 13217 (5995)
