Description
You're work day just got easier, with the Kubota U48-5. Rated at 40.4 horsepower and featuring a 9,304-pound bucket breakout force, this Kubota compact excavator assists you in the toughest jobs on the lot. The optional keyless start, rear view camera and KubotaNOW telematics are ready to help you achieve success. Factor in an optional hydraulic angle blade and the U48-5 is ready to help you break new ground and get the job done! Kubota is the world’s #1 selling compact excavator for 20 years.*
Request a Quote

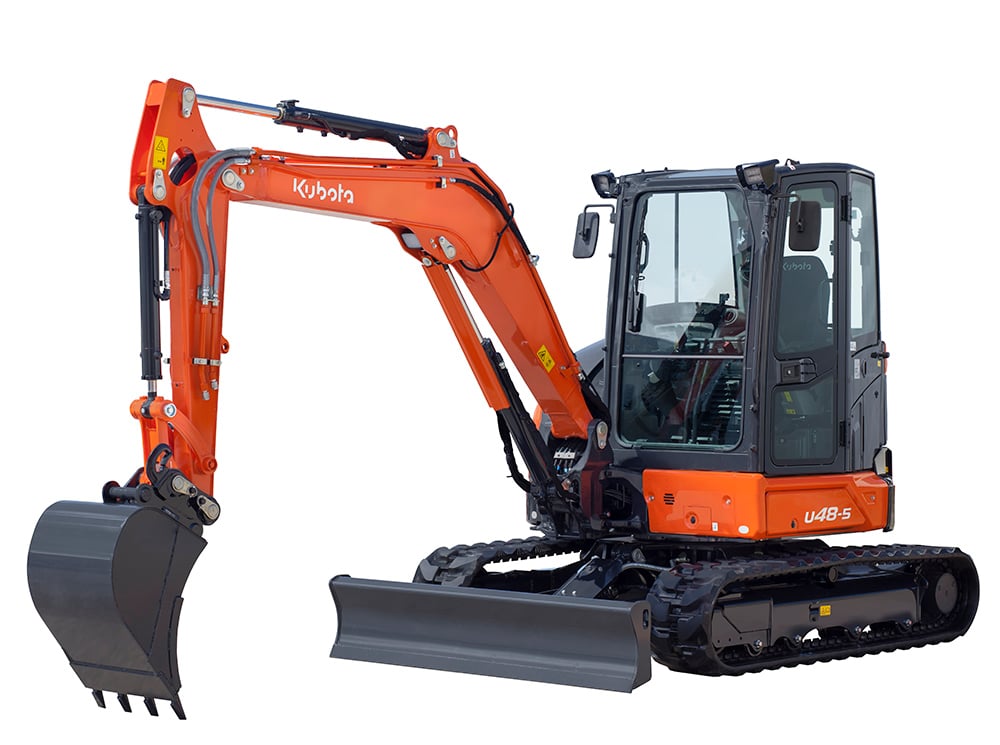

Kubota U48-5
Thank you!
Your quote request has been received. We'll be in touch shortly.
Specifications
- Engine Model D1803-CR-TE5-BH3
- Horsepower (gross) 40.4
- Displacement (cu. in.) 111.4
- Overall Length, ft (mm) 17ft 7in (5355)
- Overall Height, ft (mm) 8ft 4in (2550)
- Overall Width, ft (mm) 6ft 5in (1960)
- Min. Ground Clearance, in (mm) 12in (305)
- Crawler Length, ft (mm) 8ft 2in (2500)
- Pump Capacity, GPM (LPM) 31.4 (118.8)
- Auxiliary Hydraulics Flow Rate, GPM (LPM) 17.2 (65.0) / 9.8 (37)
- Bucket Breakout Force, lbs (kgf) 9304 (4220)
- Arm Breakout Force, lbs (kgf) 5304 (2406)
- Traveling Speed: High, mph (kph) 3.0 (4.9)
- Traveling Speed: Low, mph (kph) 1.7 (2.8)
- Ground Contact Pressure psi, kgf (cm2) Rubber: 4.0 (0.284) / 4.1 (0.289), Angle blade rubber: 4.2 (0.296) / 4.3 (0.302), Steel: 4.1 (0.290) / 4.2 (0.295), Angle blade steel: 4.3 (0.302) / 4.4 (0.307)
- Blade Width, ft (mm) 6ft 5in (1960)
- Blade Height, in (mm) 16in (410) / Angle blade: 1ft 5in (425)
- Hydraulic Oil Reservoir / System, gal (l) 10.6 (40) / 20.1 (76)
- Fuel Reservoir, gal (l) 17.4 (66.0)
- Operating Weight, lbs (kg) Operating Weight, lbs (kg): Rubber: 10848 (4920) / 11057 (5015), Angle blade rubber: 11322 (5135) / 11531 (5230), Steel: 11134 (5050) / 11342 (5145), Angle blade steel: 11608 (5265) / 11818 (5360)
