Description
With a wide range of attachments and 23.3 horsepower at its disposal, the Kubota U35-4 Compact Excavator is here to help you. Not only is the compact excavator built with extreme durability, the operator’s station is designed for the ultimate operator experience as well. Nimble enough for confined spaces and sturdy enough for variable terrain, your U35-4 is ready to help you rule the jobsite and unlock your fullest potential. Kubota is the world’s #1 selling compact excavator for 20 years.*
Request a Quote

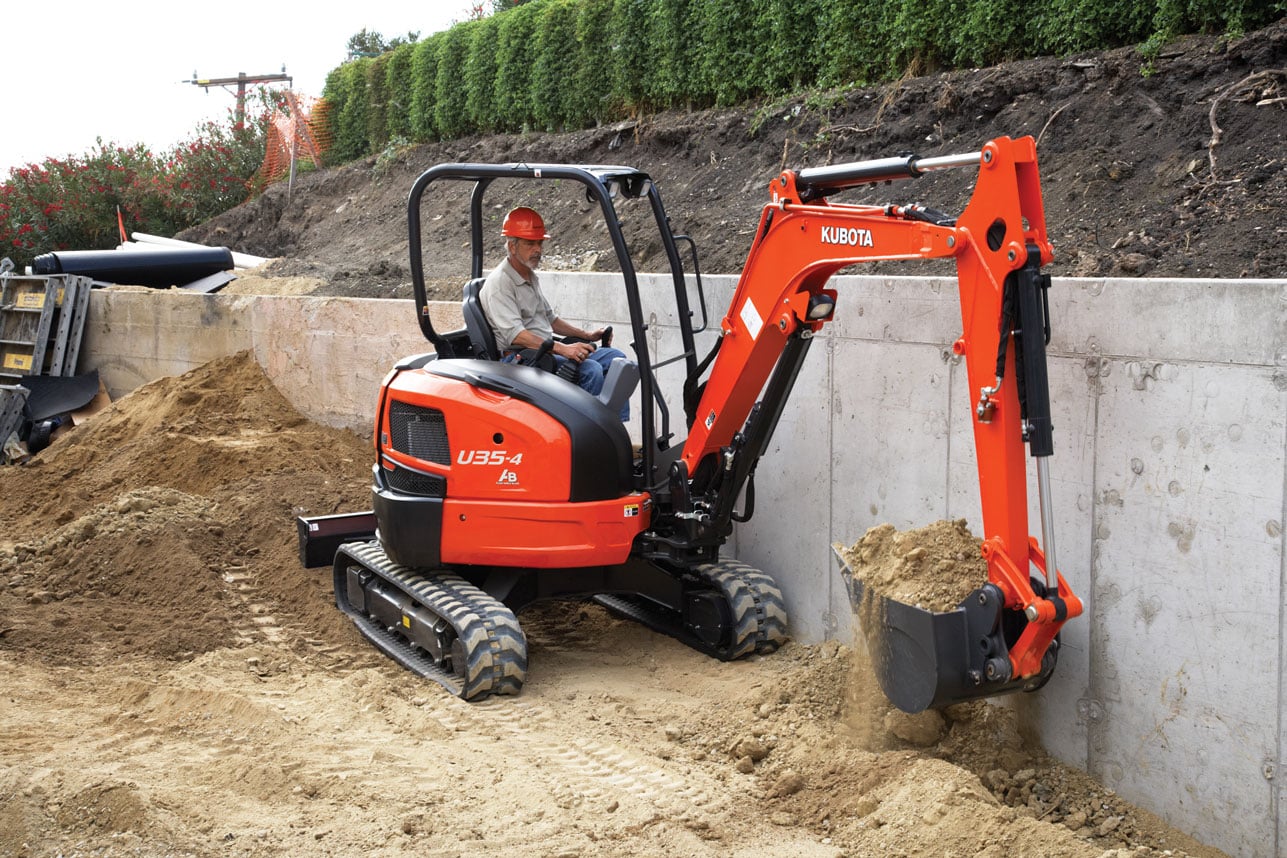

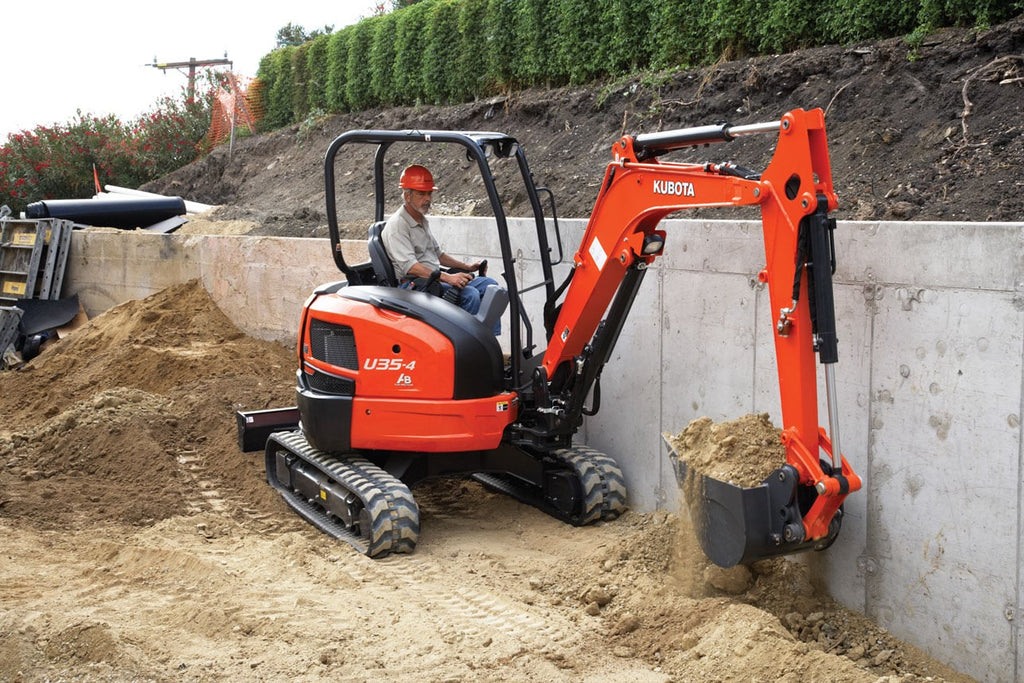

Kubota U35-4 Angle Blade
Thank you!
Your quote request has been received. We'll be in touch shortly.
Specifications
- Engine Model Kubota D1703M-DI-E4
- Horsepower (gross) 23.3
- Displacement (cu. in.) 100.5
- Overall Length, ft (mm) 15 ft 7 in (4749)
- Overall Height, ft (mm) 8 ft 1.2 in (2470)
- Overall Width, ft (mm) 5 ft 6.9 in (1700)
- Min. Ground Clearance, in (mm) 11.34 (288)
- Crawler Length, ft (mm) 6 ft 10 in (2084)
- Pump Capacity, GPM (LPM) 10.5 (39.6.) x 2 / 5.5 (20.9) x 1
- Auxiliary Hydraulics Flow Rate, GPM (LPM) 15.8 (60)
- Bucket Breakout Force, lbs (kgf) 7924 (3594)
- Arm Breakout Force, lbs (kgf) 4451 (2019)
- Traveling Speed: High, mph (kph) 1.9 (3.0)
- Traveling Speed: Low, mph (kph) 2.9 (4.6)
- Ground Contact Pressure psi, kgf (cm2) Rubber: 4.89 (0.34) / 5.08 (0.36) Steel: 5.00 (0.35) / 5.19 (0.36), Angle blade rubber: 5.10 (0.36) / 5.19 (0.36) Angle blade steel: 5.21 (0.37) / 5.40 (0.38)
- Blade Width, ft (mm) 5 ft 6.9 in (1700)
- Blade Height, in (mm) 13.5 in (343), Angle Blade: 1 ft 3.2 in (385)
- Hydraulic Oil Reservoir / System, gal (l) 11.8 (44.6) / 16.1 (61)
- Fuel Reservoir, gal (l) 12.4 (46.9)
- Operating Weight, lbs (kg) Rubber: 8129 (3687) / 8451 (3833), Steel: 8325 (3776) / 8647 (3922), Angle blade rubber: 8478 (3845) / 8800 (3991), Angle blade steel: 8674 (3934) / 8996 (4080)
