Description
The U17-5 replaces the U17 with a wide range of performance and comfort features. Keeping all the features you loved from the previous model like variable tracks and standard two-speed, all while adding a standard thumb bracket, increasing the operator space, and moving the auxiliary controls to your hands, makes the U17-5 the perfect machine to get your next job done. The U17-5 also comes standard with KubotaNOW Telematics, giving you access to the critical information you need at all times. Kubota is the world’s #1 selling compact excavator for 20 years.*
Request a Quote

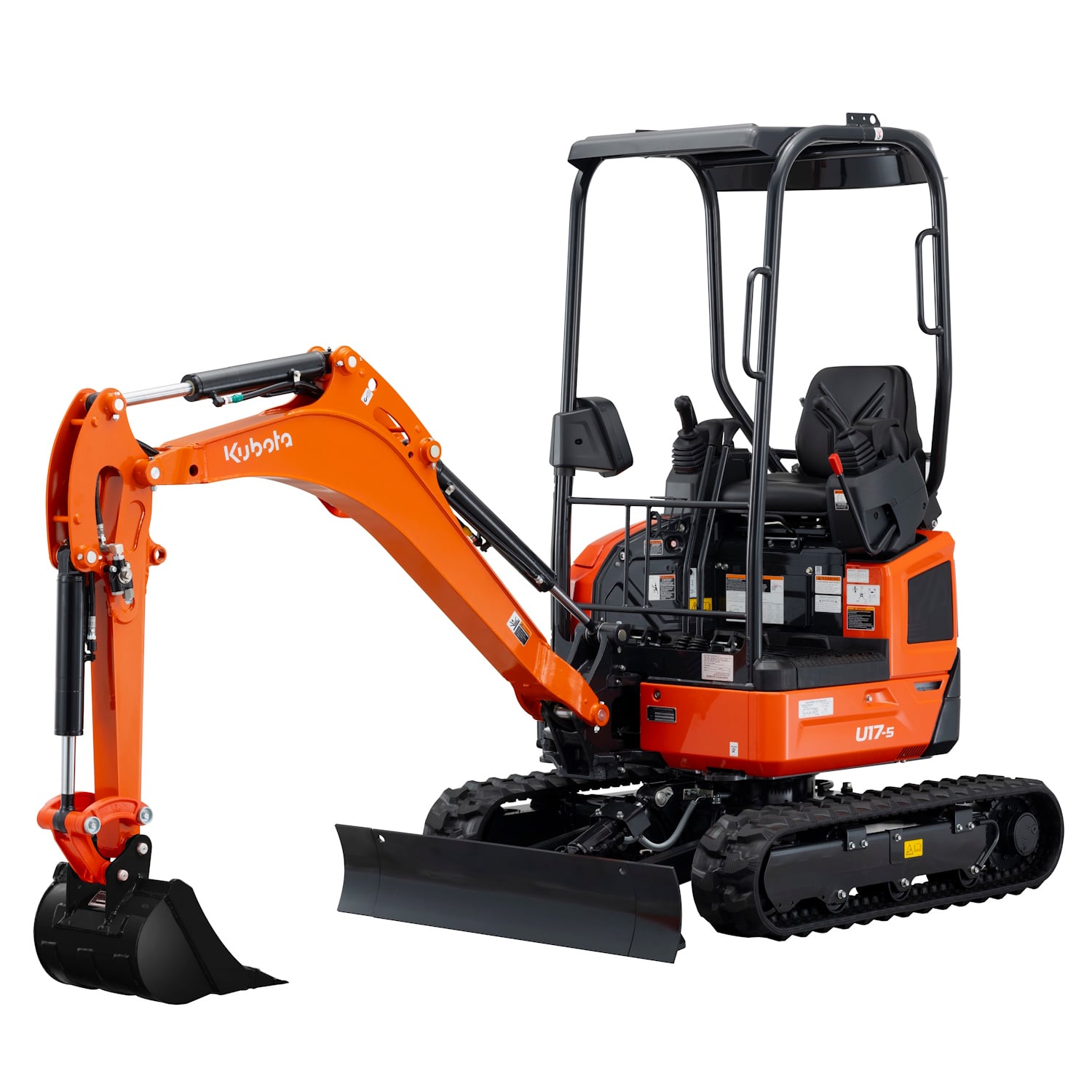

Kubota U17-5
Thank you!
Your quote request has been received. We'll be in touch shortly.
Specifications
- Engine Model Kubota D902-E4-BH-6EU
- Horsepower (gross) 16.1
- Displacement (cu. in.) 54.8
- Overall Length, ft (mm) 11 ft 7.7 in (3550)
- Overall Height, ft (mm) 7 ft 9.3 in (2370)
- Overall Width, ft (mm) 3 ft 3.4 in (1000) / 4 ft 3.2 in (1300)
- Min. Ground Clearance, in (mm) 6.1in (155)
- Crawler Length, ft (mm) 5 ft 2.2 in (1580)
- Pump Capacity, GPM (LPM) 4.6 (17.3)
- Auxiliary Hydraulics Flow Rate, GPM (LPM) 7.3 (27.7)
- Bucket Breakout Force, lbs (kgf) 15.8 kN (1609)
- Arm Breakout Force, lbs (kgf) 8.7 kN (887.2)
- Traveling Speed: High, mph (kph) 2.7 (4.4)
- Traveling Speed: Low, mph (kph) 1.4 (2.3)
- Ground Contact Pressure psi, kgf (cm2) 4.0 (0.29)
- Blade Width, ft (mm) 4 ft 3.2 in (1300) / 3 ft 3 in (990)
- Blade Height, in (mm) 10.2 in (260)
- Hydraulic Oil Reservoir / System, gal (l) 3.4 (13) / 5.8 (21.8)
- Fuel Reservoir, gal (l) 5.3 (13)
- Operating Weight, lbs (kg) 3902 (1770)
