Description
Tough job? Tight spaces? The Kubota U17 Compact Excavator is here to save the day. Standard two speed travel ensures you’re in total control of your excavator and a variable width undercarriage allows for maneuverability through narrow areas such as doors or gates. You’ll make ample use of the U17’s 16.1 horsepower rating, all while operating in comfort. Kubota is the world’s #1 selling compact excavator for 20 years.*
Request a Quote

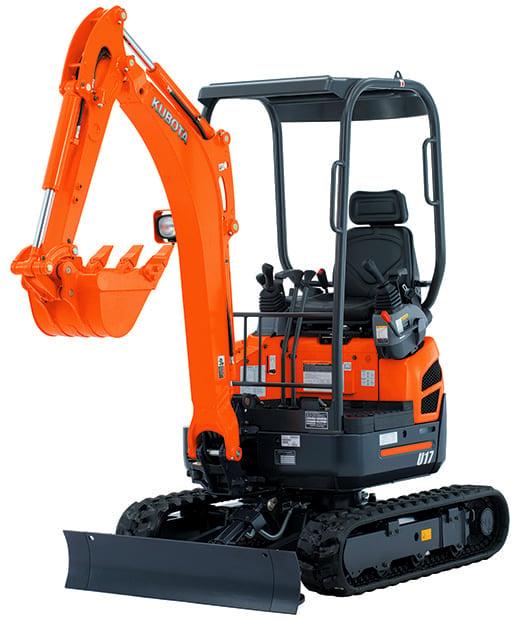

Kubota U17
Thank you!
Your quote request has been received. We'll be in touch shortly.
Specifications
- Engine Model Kubota D902-E4
- Horsepower (gross) 16.1
- Displacement (cu. in.) 54.8
- Overall Length, ft (mm) 11 ft 7 in (3545)
- Overall Height, ft (mm) 7 ft 8 in (2340)
- Overall Width, ft (mm) 3 ft 3 in (990) / 4 ft 1 in (1240)
- Min. Ground Clearance, in (mm) 5.9in (150)
- Crawler Length, ft (mm) 5 ft 2 in (1585)
- Pump Capacity, GPM (LPM) 4.57 (17.3) × 2 / 2.75 (10.4) × 1
- Auxiliary Hydraulics Flow Rate, GPM (LPM) 7.32 (27.7)
- Bucket Breakout Force, lbs (kgf) 3417.2 (1550)
- Arm Breakout Force, lbs (kgf) 1918 (870)
- Traveling Speed: High, mph (kph) 1.4 (2.2)
- Traveling Speed: Low, mph (kph) 2.6 (4.0)
- Ground Contact Pressure psi, kgf (cm2) 3.8 (0.27)
- Blade Width, ft (mm) 4 ft 1 in (1240) / 3 ft 3 in (990)
- Blade Height, in (mm) 10.3 in (260)
- Hydraulic Oil Reservoir / System, gal (l) 5.02 (19)
- Fuel Reservoir, gal (l) 5.02 (19)
- Operating Weight, lbs (kg) 3703 (1680)
