Description
The Kubota U10-5 highlights a 10’ digging height and 5’ 11” digging depth, an incredible offering inside its ultra-compact frame. Kubota’s reputation for durability and operator comfort shine through in the U10-5. The U10-5 is also equipped with adjustable track range and standard two-speed for increased control. Kubota is the world’s #1 selling compact excavator for 20 years.*
Request a Quote

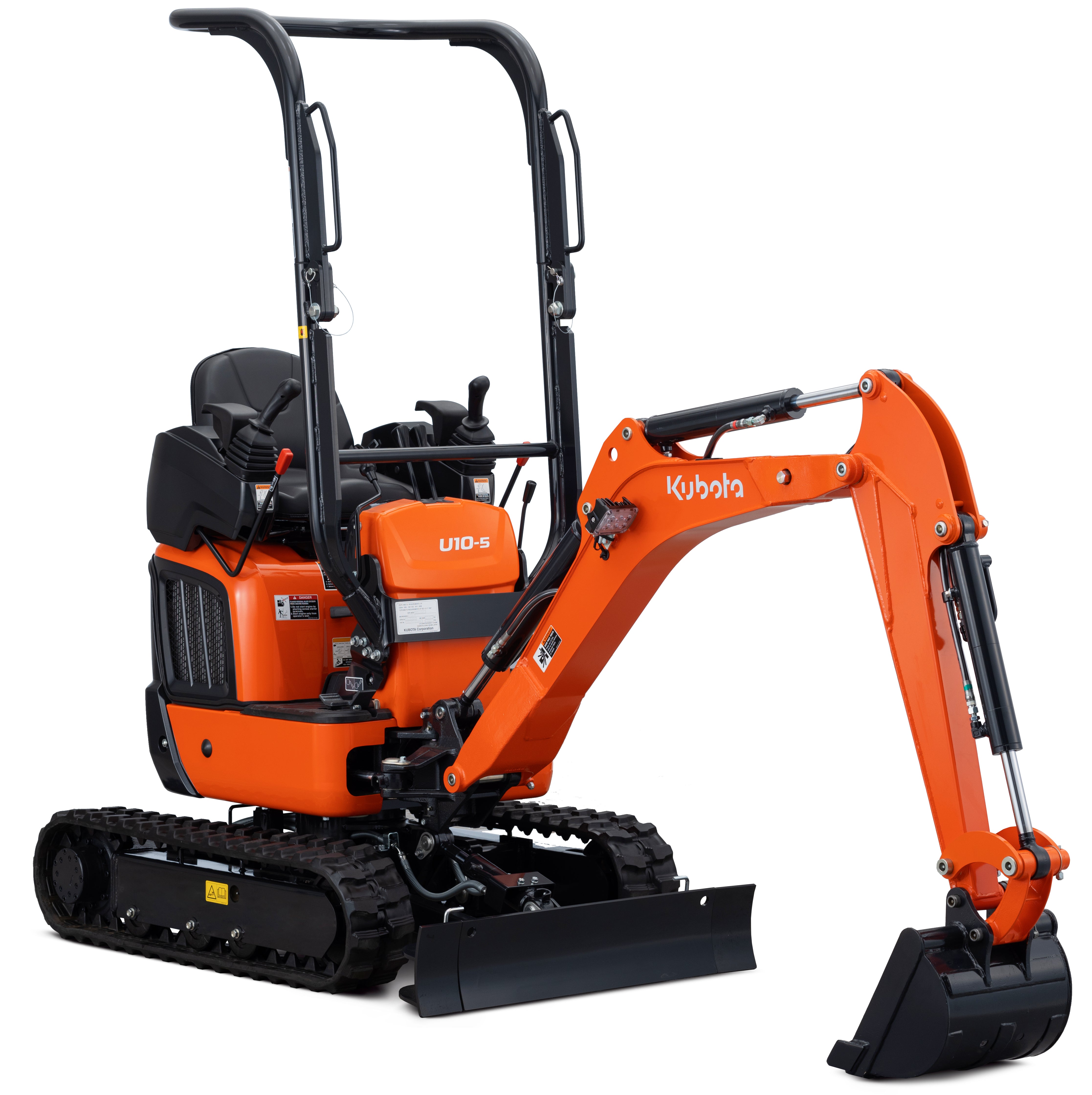

Kubota U10-5
Thank you!
Your quote request has been received. We'll be in touch shortly.
Specifications
- Engine Model Kubota D722-E4
- Horsepower (gross) 10.3
- Displacement (cu. in.) 43.8
- Overall Length, ft (mm) 9ft 9in (2980)
- Overall Height, ft (mm) 7ft 5in (2260)
- Overall Width, ft (mm) 3ft 3in (990) / 2ft 6in (750)
- Min. Ground Clearance, in (mm) 5.5in (140)
- Crawler Length, ft (mm) 4ft 5in (1340)
- Pump Capacity, GPM (LPM) 2.8 (10.5) x 2
- Auxiliary Hydraulics Flow Rate, GPM (LPM) 5.5 (21.0)
- Bucket Breakout Force, lbs (kgf) 2337 (1060)
- Arm Breakout Force, lbs (kgf) 1214 (550.6)
- Traveling Speed: High, mph (kph) 2.5 (4.0)
- Traveling Speed: Low, mph (kph) 1.2 (2.0)
- Ground Contact Pressure psi, kgf (cm2) 4.2 (0.30)
- Blade Width, ft (mm) 3ft 3in / 2ft 6in (990 / 750)
- Blade Height, in (mm) 7.9in (200)
- Hydraulic Oil Reservoir / System, gal (l) 3.3 / 4.5 (12.6 / 17.1)
- Fuel Reservoir, gal (l) 3.2 (12.0)
- Operating Weight, lbs (kg) 2646 (1200)
