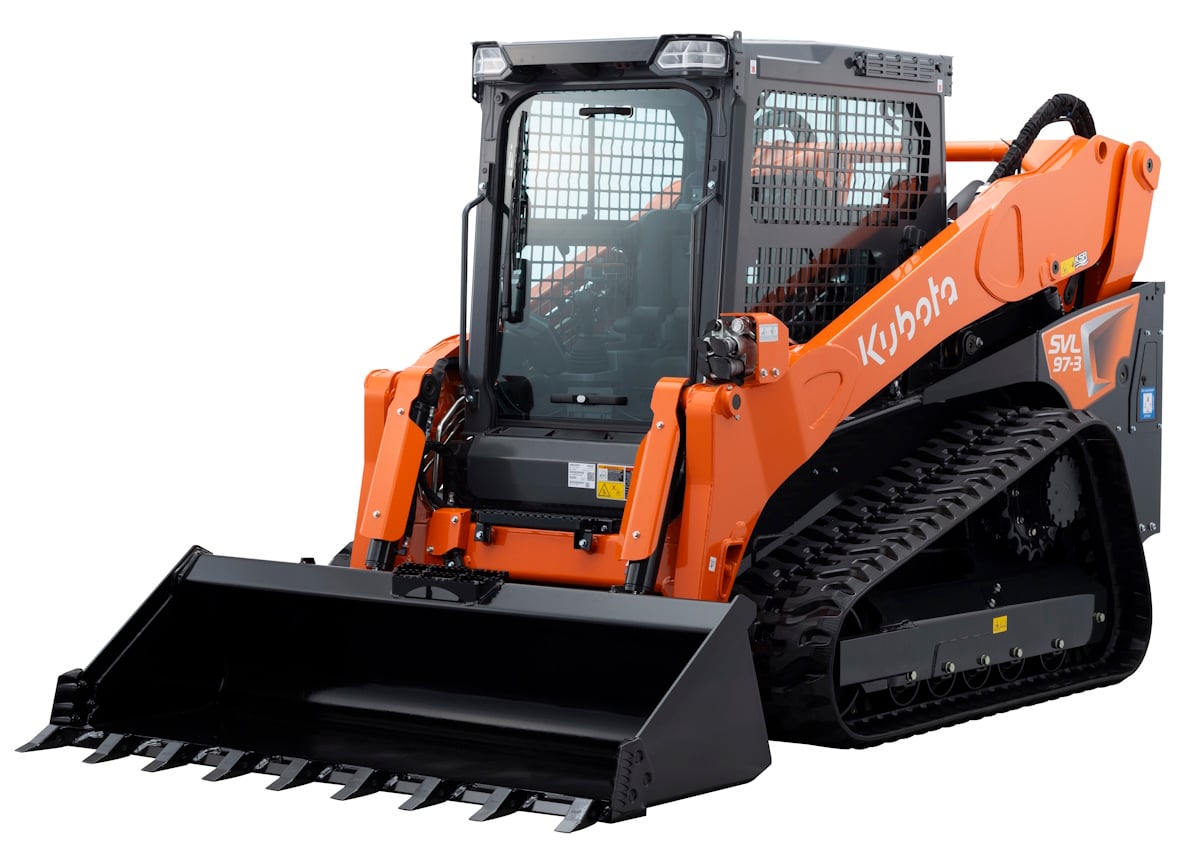

Kubota SVL97-3
Thank you!
Your quote request has been received. We'll be in touch shortly.
Specifications
- Horsepower (gross) 96.4
- Displacement cu. in. (cc) 230 (3769)
- Overall Length, in (mm) 123.7 (3142)
- Overall Height, in (mm) 83.1 (2111)
- Overall Width, in (mm) 77.2 (1961)
- Operating Weight, lbs (kg) 11676 (5296) / 11989 (5411)
- Operator Station Open cab / closed cab
- Rated Operating Capacity (ROC), lbs (kg) 3459 (1569)
- Tipping Load, lbs (kg) 9884 (4483)
- Bucket Breakout Force, lbf (kg) 7650 (37)
- Lift Arm Breakout Force, lbf (kg) 5288 (25)
- Lift Arm Path Vertical
- Track Width (standard/wide), in. (mm) 17.7 (450) / N/A
- Ground Contact Pressure, psi (kPa) 4.7 / 4.8
- Track Rollers (per side) 5
- Track Ground Contact Length, in. (mm) 65.6 (1667)
- Traveling Speed: High, mph (kph) 8.4 (13.5)
- Traveling Speed: Low, mph (kph) 5.5 (8.9)
- Traction Force, lbf (kgf) 13175 (59)
- Ground Clearance, in (mm) 11 (279)
- Auxiliary Hydraulic Pressure, psi (bar) 3553 (249.8)
- Auxiliary Hydraulics Flow Rate, GPM (LPM) 40.0 (152)
- Height to Hinge Pin, in (mm) 128.5 (3263.9)
- Ground Pressure, (psi) 4.6 (0.32 bar)
