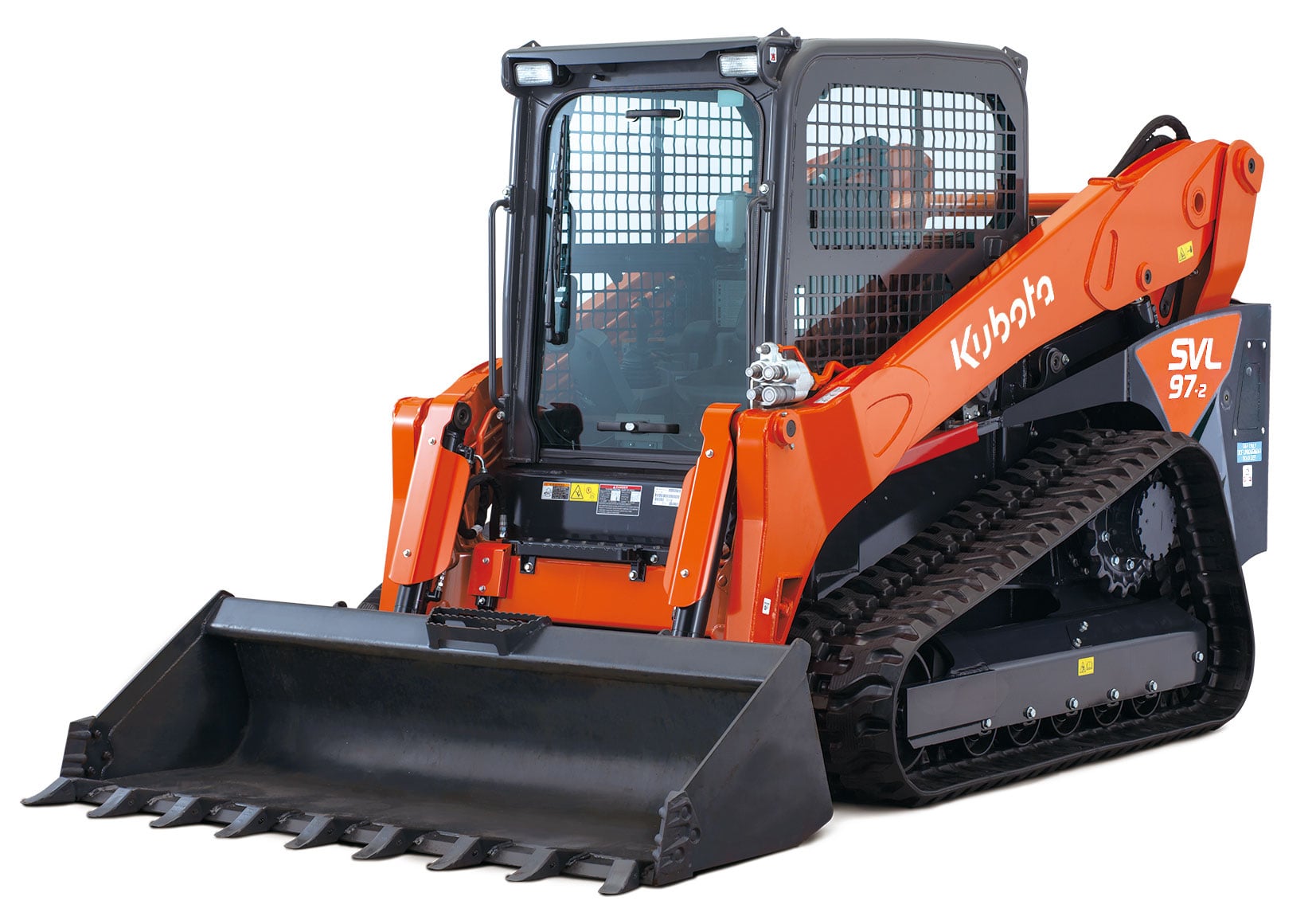

Kubota SVL97-2
Thank you!
Your quote request has been received. We'll be in touch shortly.
Specifications
- Horsepower (gross) 96.4
- Displacement cu. in. (cc) 230.0 (3769)
- Overall Length, in (mm) 154.6 (3929)
- Overall Height, in (mm) 83.3 (2116)
- Overall Width, in (mm) Vehicle Width: 77.2 (1962) Width With Bucket: 80 (2032)
- Operating Weight, lbs (kg) 11277 (5115) / 11552 (5240)
- Operator Station Open cab / closed cab
- Rated Operating Capacity (ROC), lbs (kg) 3200 (1451)
- Tipping Load, lbs (kg) 9143 (4147)
- Bucket Breakout Force, lbf (kg) 7623 (3458)
- Lift Arm Breakout Force, lbf (kg) 5530 (2509)
- Lift Arm Path Vertical
- Track Width (standard/wide), in. (mm) 17.7 (450) / N/A
- Ground Contact Pressure, psi (kPa) Standard: 4.4 (30.3) / 4.5 (31.0) Wide: N/A
- Track Rollers (per side) 5
- Track Ground Contact Length, in. (mm) 65.6 (1667)
- Traveling Speed: High, mph (kph) 7.3 (11.7)
- Traveling Speed: Low, mph (kph) 5 (8.0)
- Traction Force, lbf (kgf) 12178 (5524)
- Ground Clearance, in (mm) 11.5 (293)
- Auxiliary Hydraulic Pressure, psi (bar) 3553 (249.8)
- Auxiliary Hydraulics Flow Rate, GPM (LPM) 23.1 (87.6) / 40.0 (152)
- Height to Hinge Pin, in (mm) 128.5 (3263.9)
- Ground Pressure, (psi) Standard: 4.4 / 4.5 Wide: N/A
