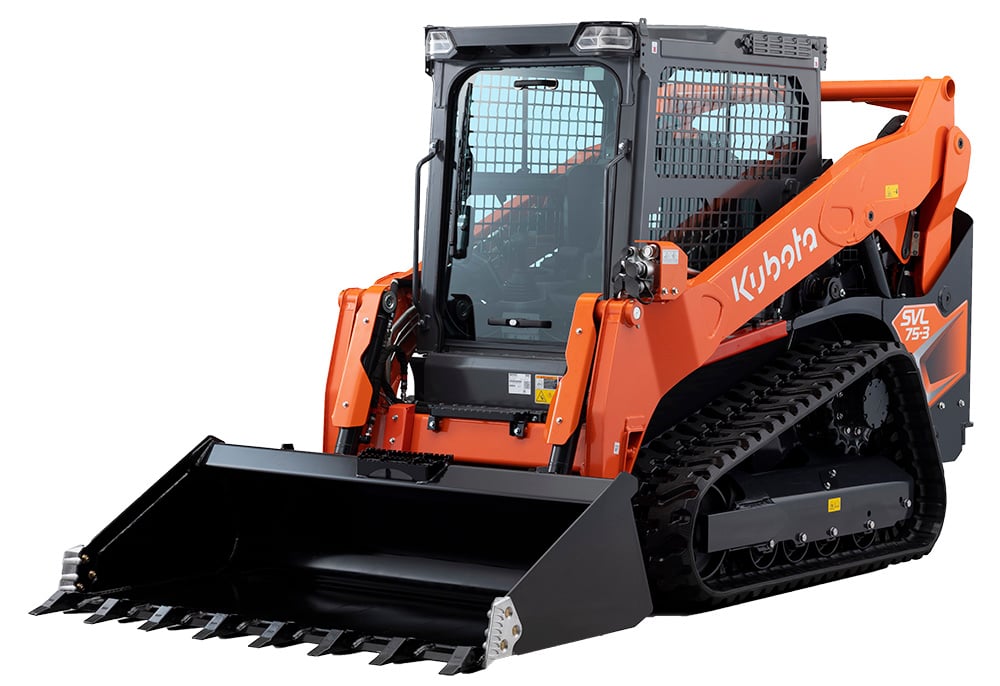

Kubota SVL75-3
Thank you!
Your quote request has been received. We'll be in touch shortly.
Specifications
- Horsepower (gross) 71.6
- Displacement cu. in. (cc) 203.3
- Overall Length, in (mm) 142.1 (3609)
- Overall Height, in (mm) 81.8 (2078)
- Overall Width, in (mm) Vehicle Width Standard Track / Wide Track, in (mm): 65.9 (1675) / 69.1 (1755), Width with Bucket, in (mm): 68 (1727)
- Operating Weight, lbs (kg) 9190 (4169) / 9420 (4273)
- Operator Station Open cab / closed cab
- Rated Operating Capacity (ROC), lbs (kg) 2490 (1043)
- Tipping Load, lbs (kg) 7112 (3226)
- Bucket Breakout Force, lbf (kg) 6191 (2808)
- Lift Arm Breakout Force, lbf (kg) 4723 (2142)
- Lift Arm Path Vertical
- Track Width (standard/wide), in. (mm) 12.6 (320) / 15.8 (400)
- Ground Contact Pressure, psi (kPa) Standard: 5.8 (40) / 5.9 (40.7) Wide: 4.7/4.8
- Track Rollers (per side) 4
- Track Ground Contact Length, in. (mm) 56.5 (1436)
- Traveling Speed: High, mph (kph) 8.6 (13.7)
- Traveling Speed: Low, mph (kph) 5.6 (9.0)
- Traction Force, lbf (kgf) 9678 (4390)
- Ground Clearance, in (mm) 11.7 (296)
- Auxiliary Hydraulic Pressure, psi (bar) 3185 (224.0)
- Auxiliary Hydraulics Flow Rate, GPM (LPM) 19.2 (72.7) / 29.8 (112.8)
- Height to Hinge Pin, in (mm) 122.7 (3117)
- Ground Pressure, (psi) Standard: 5.8/5.9 Wide: 4.7/4.8
