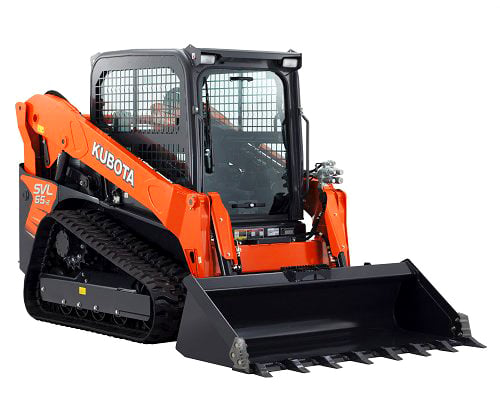

Kubota SVL65-2s
Thank you!
Your quote request has been received. We'll be in touch shortly.
Specifications
- Horsepower (gross) 68.4
- Displacement cu. in. (cc) 159.6 (2615)
- Overall Length, in (mm) 136.4 (3465)
- Overall Height, in (mm) 79.9 (2029)
- Overall Width, in (mm) 68 (1727) / 74 (1880)
- Operating Weight, lbs (kg) 8135 (3690) / 8631 (3915)
- Operator Station Open cab / closed cab
- Rated Operating Capacity (ROC), lbs (kg) 35% Tipping Load: 2100 (953) / 50% Tipping Load: 3000 (1361)
- Tipping Load, lbs (kg) 6000 (2722)
- Bucket Breakout Force, lbf (kg) 4614 (2093)
- Lift Arm Breakout Force, lbf (kg) 4266 (1935)
- Lift Arm Path Vertical
- Track Width (standard/wide), in. (mm) 12.6 (320) / 15.0 (380)
- Ground Contact Pressure, psi (kPa) Standard: 5.0 (34.5) Wide: 4.2 (30)
- Track Rollers (per side) 4
- Track Ground Contact Length, in. (mm) 57.9 (1470)
- Traveling Speed: High, mph (kph) 7.1 (11.5)
- Traveling Speed: Low, mph (kph) 4.9 (7.8)
- Traction Force, lbf (kgf) 8406 (3813)
- Ground Clearance, in (mm) 9.1 (233)
- Auxiliary Hydraulic Pressure, psi (bar) 3263 (229.4)
- Auxiliary Hydraulics Flow Rate, GPM (LPM) 17.4 (65.8) / 27.0 (102.2)
- Height to Hinge Pin, in (mm) 118.5 in (3009.9)
- Ground Pressure, (psi) Standard: 5.0 Wide: 4.2
