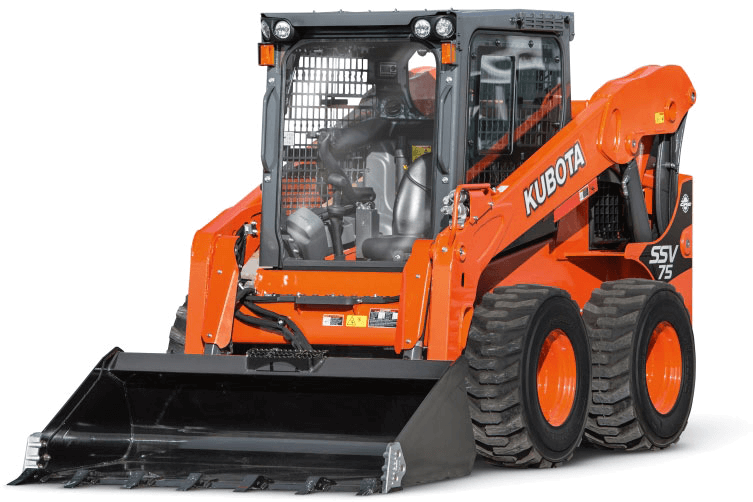

Kubota SSV75
Thank you!
Your quote request has been received. We'll be in touch shortly.
Specifications
- Engine V3307-CR-TE4
- Emission Certification Tier 4
- Horsepower (gross) 71.6
- Displacement (cu. in.) 203.3
- Cylinders 4
- Bore Stroke, in. (mm) 3.8 (94) × 4.8 (120)
- Aspiration Turbocharged
- Tipping Load, lbs (kg) 5380 (2440)
- Bucket Breakout Force, lbf (kgf) 5884 (2669)
- Lift Arm Breakout Force, lbf (kgf) 4850 (2200)
- Lift Arm Path Vertical
- Standard Tire Size, in. 12-16.5-10PR
- Chain Size ASA# 100
- Traveling Speed: High. mph (kph) 11.8 (19.0)
- Traveling Speed: Low, mph (kph) 7.4 (11.9)
- Traction Force, lbs (kg) 8494 (3853)
- Ground Clearance, in. (mm) 8.1 (207)
- Loader Hydraulic Flow, GPM (LPM) 20.9 (79.0)
- Loader Hydraulic Pressure psi, kgf (cm2) 3271 (230)
- Auxiliary Hydraulics Flow Rate, GPM (LPM) 20.9 (79.0) / 30.4 (115.0)
- Hydraulic Tank, gal (l) 4.2 (16.0)
- Fuel Tank, gal (l) 26.9 (102.0)
- Operating Weight, lbs (kg) 8245 (3740) / 8466 (3840)
- Overall Height, in. (mm) 81.3in (2065)
- Overall Width, in. (mm) Width over Wheels: 71.8in (1823), Width with Standard Bucket: 75in (1905)
- Overall Length, in. (mm) Without Bucket: 115.0in (2920), With Bucket: 144.1in (3660)
- Reach at Maximum Height, in. (mm) 36.9in (936)
- Height to Hinge Pin, in. (mm) 128.3in (3258)
