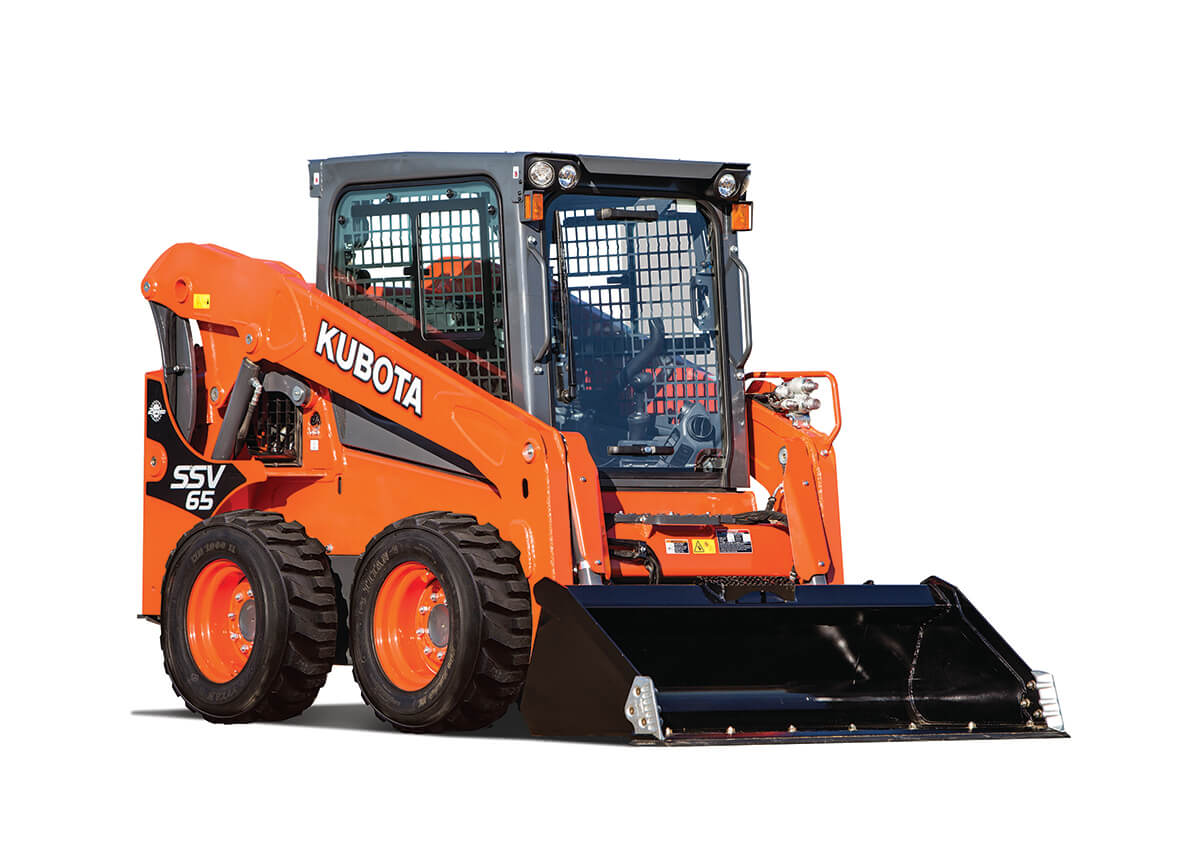

Kubota SSV65
Thank you!
Your quote request has been received. We'll be in touch shortly.
Specifications
- Engine V3307-CR-TE4
- Emission Certification Tier 4
- Horsepower (gross) 60.4
- Displacement (cu. in.) 159.7
- Cylinders 4
- Bore Stroke, in. (mm) 3.5 × 4.4
- Aspiration Turbocharged
- Tipping Load, lbs (kg) 3900 (1770)
- Bucket Breakout Force, lbf (kgf) 4839 (2195)
- Lift Arm Breakout Force, lbf (kgf) 3858 (1750)
- Lift Arm Path Vertical
- Standard Tire Size, in. 10-16.5-8PR
- Chain Size ASA# 80
- Traveling Speed: High. mph (kph) 11.1 (17.8)
- Traveling Speed: Low, mph (kph) 6.9 (11.1)
- Traction Force, lbs (kg) 7339 (3329)
- Ground Clearance, in. (mm) 7.6 (193.0)
- Loader Hydraulic Flow, GPM (LPM) 18.0 (68.0)
- Loader Hydraulic Pressure psi, kgf (cm2) 3271 (230)
- Auxiliary Hydraulics Flow Rate, GPM (LPM) 18.0 (68.0) / 28.0 (106.0)
- Hydraulic Tank, gal (l) 4.2 (16.0)
- Fuel Tank, gal (l) 25.4 (96.0)
- Operating Weight, lbs (kg) 7099 (3220) / 7319 (3320)
- Overall Height, in. (mm) 79.9 (2029)
- Overall Width, in. (mm) Width over Wheels: 66.5 (1689), Width with Standard Bucket: 69 (1753)
- Overall Length, in. (mm) Without Bucket: 106.3 (2700), With Bucket: 135.4 (3439)
- Reach at Maximum Height, in. (mm) 32.7 (831)
- Height to Hinge Pin, in. (mm) 121.5 (3085)
