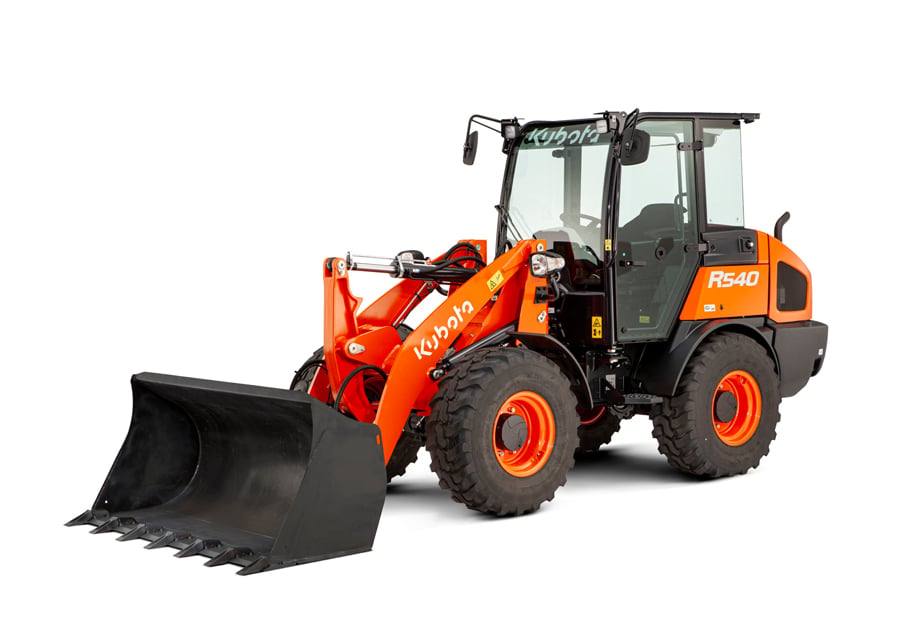

Kubota R540
Thank you!
Your quote request has been received. We'll be in touch shortly.
Specifications
- Engine V2607
- Emission Certification Tier 4 Final
- Output (SAE J1995 gross) HP/(kW)/rpm 50.9 (38) / 2400
- Output (SAE J1349 net) HP/(kW)/rpm 47.9 (35.7) / 2400
- Displacement (cu. in.) 160
- Transmission Type Hydrostatic transmission
- Overall Length, ft (mm) 17ft 8in (5395)
- Overall Width, ft (mm) 5ft 7in (1712)
- Overall Height, ft (mm) 8ft 1in (2453) / 8ft 2in (2473)
- Ground Clearance, in (mm) 13in (330)
- Auxiliary Hydraulics Flow Rate, GPM (LPM) 14.2 (53.8)
- Auxiliary Hydraulic Pressure psi, kgf (cm2) 2683 (18.5)
- Standard Tire Size, in 12.5-18
- Traveling Speed: High, mph (kph) 12.4 (20.0)
- Traveling Speed: Low, mph (kph) 3.0 (4.8)
- Traction Force, lbs (kgf) 6541 (29.1)
- Front/Rear Axle Traction Lock Diff-lock (both axles)
- Articulation Angle (deg.) 40 (each direction)
- Angle of Rear Frame Oscillation (deg.) ±8
- Loader Clearance Circle, ft (mm) 13ft 8in (4175)
- Turning Radius Track Circle, ft (mm) 11ft 11in (3620)
- Brakes (Service) Enclosed wet disc
- Tipping Load- Full Turn, lbs (kg) 5644 (2560)/5930 (2690) / 4365 (1980)/4586 (2080)
- Tipping Load - Straight, lbs (kg) 6437 (2920)/6768 (3070) / 4960 (2250)/5202 (2360)
- Rated Operating Capacity, (ROC) 2822/2968/2183/2293
- Standard Bucket Capacity, yd3 0.85
- Bucket Breakout Force, lbs (kN) 8183 (36.4)
- Lifting Capacity at Ground Level, lbs (kN) 6767 (30.1)
- Loader Raise / Lower Time, sec 6.5 / 4.5
- Fuel Tank, gal (l) 18.5 (70)
- Hydraulic System, gal (l) 15.1 (57)
- Hydraulic Reservoir, gal (l) 10.3 (39)
- Operating Weight, lbs (kg) 9888 (4485) / 10285 (4665)
- Hinge Pin Height, ft 10ft 7in
- Dump Height at Fully Raised Position, ft 8ft 3in
- Maximum Dump Angle 45 degrees
- Reach Fully Raised at Maximum Dump Angle, ft 2ft 6in
- Steering Angle 40 degrees
- Frame Oscillation Angle 8 degrees
