Description
Compact design with impressive power allows the R430 to get the work done where larger loaders cannot fit. The R430 also delivers big on comfort in every season with an available enclosed cab featuring heat and A/C.
Request a Quote

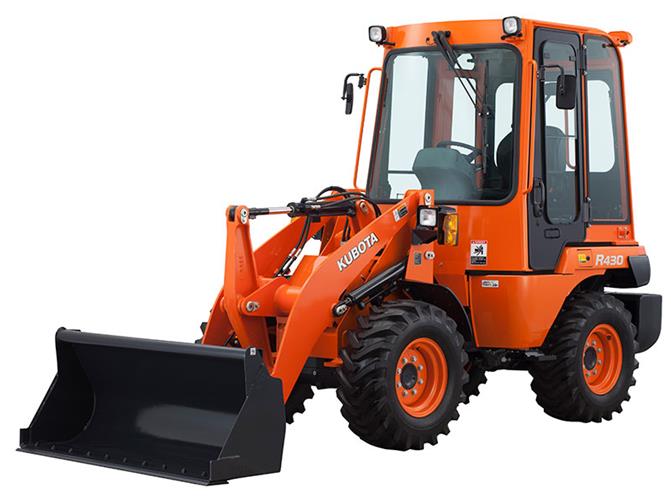

Kubota R430
Thank you!
Your quote request has been received. We'll be in touch shortly.
Specifications
- Engine D1830-CR-TIE4-WL5
- Emission Certification Tier 4
- Output (SAE J1995 gross) HP/(kW)/rpm 47.6 (35.5) / 2600
- Output (SAE J1349 net) HP/(kW)/rpm 44.5 (33.2) / 2600
- Displacement (cu. in.) 11
- Transmission Type Hydrostatic transmission
- Overall Length, ft (mm) 14' 4" (4355)
- Overall Height, ft (mm) 8' 3" (2515)
- Overall Width, ft (mm) 4' 12" (1520)
- Ground Clearance, in (mm) 11" (280)
- Auxiliary Hydraulics Flow Rate, GPM (LPM) 11.1 (42.1)
- Auxiliary Hydraulic Pressure psi, kgf (cm2) 2697 (18.6)
- Standard Tire Size, in 12.5/70-16-8PR
- Traveling Speed: High, mph (kph) 12.4 (20.0)
- Traveling Speed: Low, mph (kph) 3.0 (4.8)
- Traction Force, lbs (kgf) 5485 (24.4)
- Front/Rear Axle Traction Lock Limited slip differential
- Articulation Angle (deg.) 40 (each direction)
- Angle of Rear Frame Oscillation (deg.) ±8
- Loader Clearance Circle, ft (mm) Loader Clearance Circle, ft (mm) 12' 1" (3695)
- Turning Radius Track Circle, ft (mm) 10' 1" (3085)
- Brakes (Service) Enclosed wet disc
- Tipping Load - Straight, lbs (kg) 5335 (2420)/5743 (2605) / 3494 (1585)/3770 (1710)
- Tipping Load- Full Turn, lbs (kg) 4596 (2085)/4949 (2245) / 3009 (1365)/3251 (1475)
- Rated Operating Capacity, (ROC) 2298/2474/504/1625
- Standard Bucket Capacity, yd3 0.5
- Bucket Breakout Force, lbs (kN) 5215 (23.2)
- Lifting Capacity at Ground Level, lbs (kN) 3687 (16.4)
- Loader Raise / Lower Time, sec 4.4 / 3.3
- Fuel Tank, gal (l) 14.3 (54)
- Hydraulic System, gal (l) 15.3 (58)
- Hydraulic Reservoir, gal (l) 11.1 (42)
- Operating Weight, lbs (kg) 7758 (3519) / 8232 (3734)
- Hinge Pin Height, ft 9ft2in
- Dump Height at Fully Raised Position, ft 7ft2in
- Maximum Dump Angle 44 degrees
- Reach Fully Raised at Maximum Dump Angle, ft 2ft9in
- Steering Angle 40 degrees
- Frame Oscillation Angle 8 degree
