Description
When you get to your toughest jobs, you need the KX080-5. Equipped with a 66.6 horsepower Kubota diesel engine, a 14,660 lbf. bucket breakout force and jam-packed with all the features you need in a compact excavator, the KX080-5 makes any job seem easy. Get the job done right with a KX080-5. Kubota is the world’s #1 selling compact excavator for 20 years.*
Request a Quote

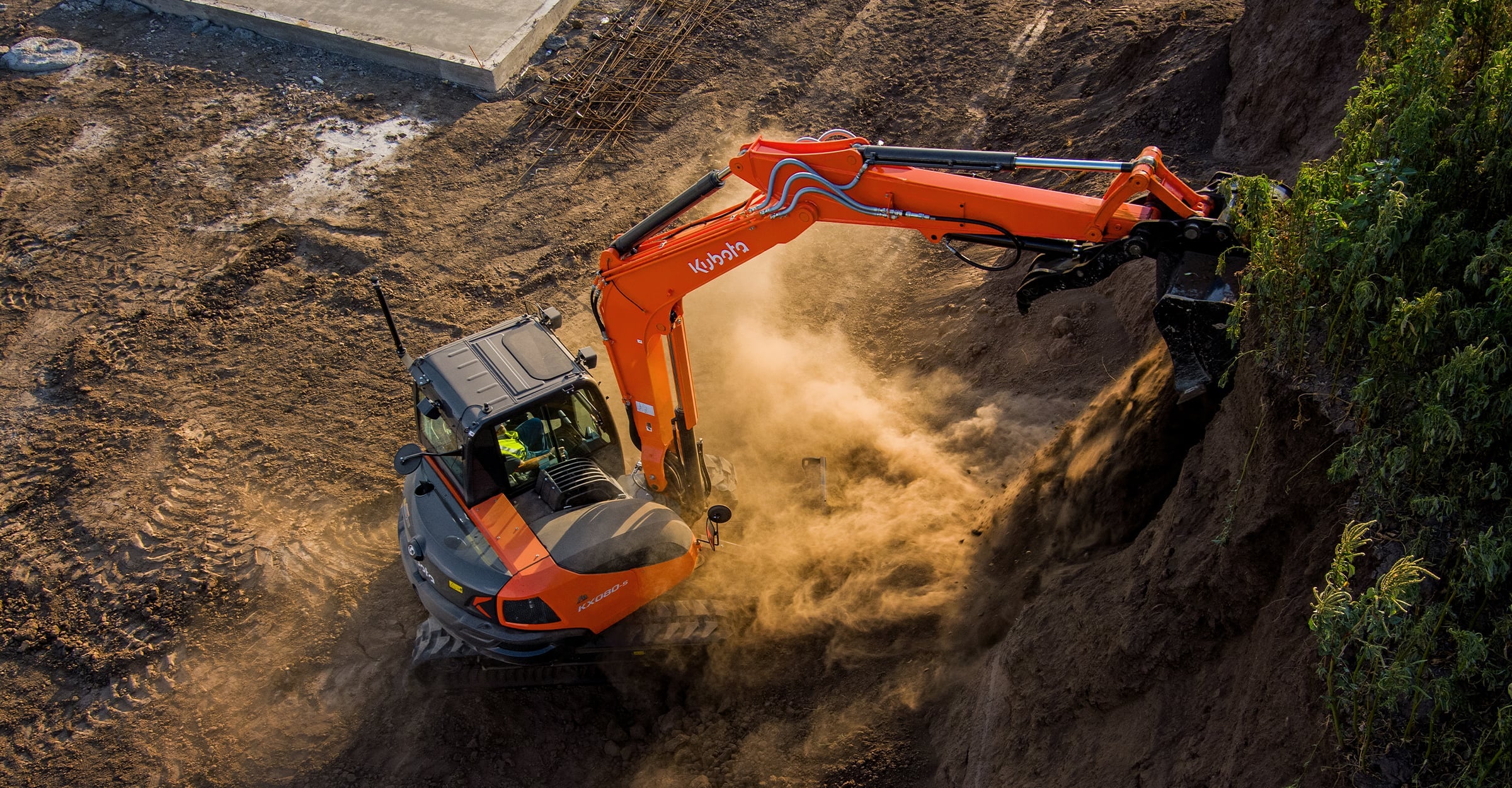

Kubota KX080-5 Angle Blade
Thank you!
Your quote request has been received. We'll be in touch shortly.
Specifications
- Engine Model Kubota V3307-CR-TE5
- Horsepower (gross) 66.6
- Displacement (cu. in.) 203.3
- Overall Length, ft (mm) 21ft 1.9in (6450)
- Overall Height, ft (mm) 8ft 4in (2450)
- Overall Width, ft (mm) 7ft 2.6in (2200)
- Min. Ground Clearance, in (mm) 14.0in (355)
- Crawler Length, ft (mm) 9ft 6.2in (2900)
- Pump Capacity, GPM (LPM) 22.3 (84.6) Variable x 2
- Auxiliary Hydraulics Flow Rate, GPM (LPM) 26.4 (100) / 14.7 (55.8)
- Bucket Breakout Force, lbs (kgf) 14660 (6650)
- Arm Breakout Force, lbs (kgf) 8554 (3880)
- Traveling Speed: High, mph (kph) 3.0 (4.8)
- Traveling Speed: Low, mph (kph) 1.7 (2.7)
- Ground Contact Pressure psi, kgf (cm2) Rubber/steel: 5.29 (0.372) / 5.35 (0.376), Angle blade rubber/steel: 5.56 (0.391) / 5.60 (0.394)
- Blade Width, ft (mm) 7ft 2.6in (2200)
- Blade Height, in (mm) 19.7in (500), Angle Blade: 20.1in (510)
- Hydraulic Oil Reservoir / System, gal (l) 19.8 (75) / 38.6 (146)
- Fuel Reservoir, gal (l) 30.4 (115)
- Operating Weight, lbs (kg) Rubber/steel: 18520 (8400) / 18760 (8510), Angle blade rubber/steel: 19470 (8830) / 19620 (8900)
