Description
The Kubota KX057-5 gives you the best in durability, comfort and performance. Rated at 47.6 horsepower, the compact excavator is built to help you dig deeper, lift higher and dominate whatever task you throw its way. Let’s get to work. Kubota is the world’s #1 selling compact excavator for 20 years. *
Request a Quote

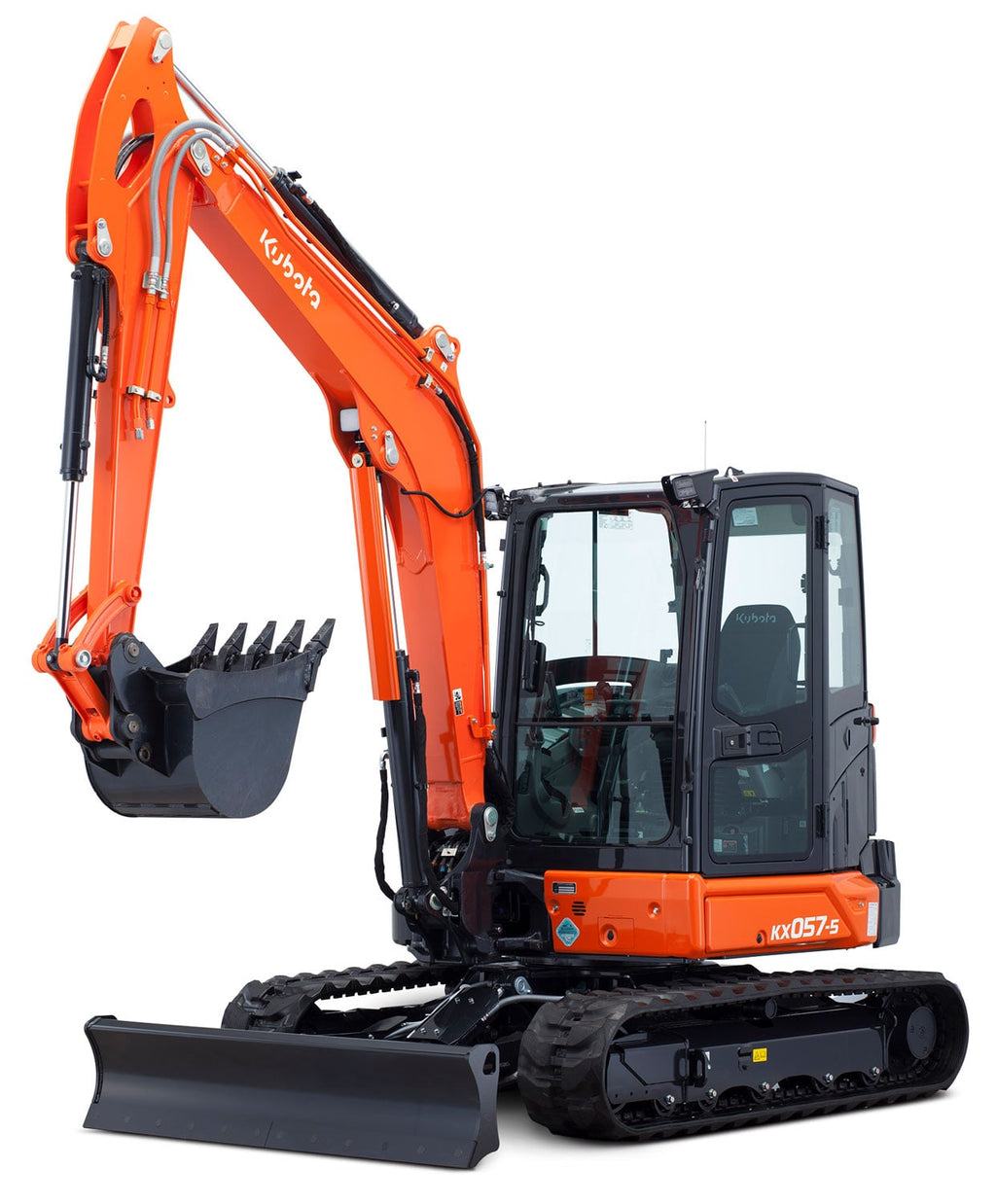

Kubota KX057-5
Thank you!
Your quote request has been received. We'll be in touch shortly.
Specifications
- Engine Model Kubota V2607-CR-E5
- Horsepower (gross) 47.6
- Displacement (cu. in.) 159.6
- Overall Length, ft (mm) 18ft 1in (5520)
- Overall Height, ft (mm) 8ft 4in (2550)
- Overall Width, ft (mm) 6ft 5in (1960)
- Min. Ground Clearance, in (mm) 12.2in (310)
- Crawler Length, ft (mm) 8ft 2in (2500)
- Pump Capacity, GPM (LPM) 14.8 (56.1) Variable x 2 / 9.8 (37.0) Gear x 1
- Auxiliary Hydraulics Flow Rate, GPM (LPM) 19.8 (75) / 9.8 (37)
- Bucket Breakout Force, lbs (kgf) 10172 (4614)
- Arm Breakout Force, lbs (kgf) 5463 (2478)
- Traveling Speed: High, mph (kph) 3.0 (4.8)
- Traveling Speed: Low, mph (kph) 1.7 (2.8)
- Ground Contact Pressure psi, kgf (cm2) Rubber canopy/cab: 4.6 (0.32) / 4.7 (0.33), Angle blade rubber canopy/cab: 4.8 (0.33) / 4.9 (0.34), Angle blade steel canopy/cab: 4.9 (0.34) / 4.9 (0.34)
- Blade Width, ft (mm) 6ft 5.2in (1960)
- Blade Height, in (mm) 16.1in (410), Angle Blade: 25/25
- Hydraulic Oil Reservoir / System, gal (l) 11.1 (41.9) / 20.3 (77.0)
- Fuel Reservoir, gal (l) 19.3 (73)
- Operating Weight, lbs (kg) Rubber: 12200 (5535) / 12400 (5625), Angle blade rubber: 12346 (5600) / 12577 (5705) Angle blade steel: 13106 (5945) / 13338 (6050)
