Description
The KX040-5 replaces the popular KX040-4 with a wide range of performance, comfort and productivity features. Updated with all new interior design and added productivity features like engine speed sensing, you'll be equipped get the job done right, while operating in comfort. But that's not all, with the option of a straight, angle, or 6-in-1 blade this machine can fit any job site. To top it all off this compact excavator comes standard with KubotaNOW telematics, giving you complete visibility of your machine. Kubota is the world’s #1 selling compact excavator for 20 years.*
Request a Quote

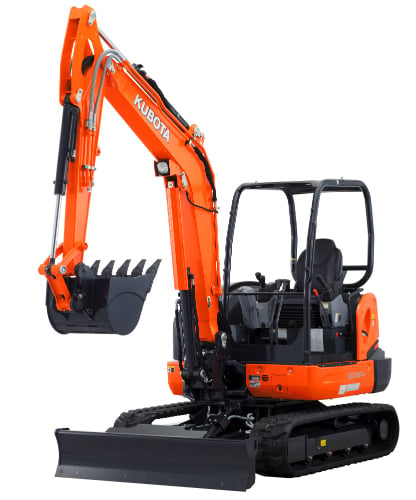

Kubota KX040-5
Thank you!
Your quote request has been received. We'll be in touch shortly.
Specifications
- Engine Model Kubota D1803-CR-TE5-BH5 / D1803-CR-TE5-BH6
- Horsepower (gross) 40.3
- Displacement (cu. in.) 111.4
- Overall Length, ft (mm) 16ft 8.2in (5085)
- Overall Height, ft (mm) 8ft 1.6in (2480) / 8ft 2in (2490)
- Overall Width, ft (mm) 5ft 6.9in - 5ft 10.9in (1700-1800)
- Min. Ground Clearance, in (mm) 13in (330)
- Crawler Length, ft (mm) 7'1.6in (2175)
- Pump Capacity, GPM (LPM) 29.1 (110.0)
- Auxiliary Hydraulics Flow Rate, GPM (LPM) 17.2 (65) / 9.8 (37)
- Bucket Breakout Force, lbs (kgf) 9397 (4262)
- Arm Breakout Force, lbs (kgf) 4114 (1866)
- Traveling Speed: High, mph (kph) 3.1 (5.0)
- Traveling Speed: Low, mph (kph) 1.7 (2.7)
- Ground Contact Pressure psi, kgf (cm2) Rubber: 4.5 (31.1) / 4.7 (32.1), Steel: 4.6 (31.5) / 4.7 (32.5), Angle Blade Rubber: 4.7 (32.6) / 4.9 (33.6), Angle Blade Steel: 4.8 (32.9) / 4.9 (33.9), Rubber canopy/cab: 4.9 (33.8) / 5.0 (34.8), Steel canopy/cab: 4.9 (34.1) / 5.1 (35.1)
- Blade Width, ft (mm) 5ft 6.9in (1700) / 5ft 10.9in (1800), Angle blade: 5ft 10.9in (1800)
- Blade Height, in (mm) 13.8in (350) / 1ft 3.2in (385), Angle Blade: 1ft 3.2in (385)
- Hydraulic Oil Reservoir / System, gal (l) 9.8 (37) / 17.7 (65)
- Fuel Reservoir, gal (l) 17.4 (66)
- Operating Weight, lbs (kg) Rubber: 9182-9480 (4165-4300) / 9965-10251 (4520-4650) Steel: 9348-9645 (4240-4375) / 10119-10417 (4590-4725), Angle Blade Rubber: 9623 (4365) / 9910 (4495), Angle Blade Steel: 9777 (4435) / 10075 (4570)
