Description
Digging isn’t easy, but the Kubota KX040-4 will make it feel like it is. With 40.4 horsepower and an available cab for ultimate comfort, you don't want to ignore the KX040-4. Experience elite versatility, maneuverability and power like never before, and you’ll know what we mean when we talk about the Kubota difference. Kubota is the world’s #1 selling compact excavator for 20 years.*
Request a Quote

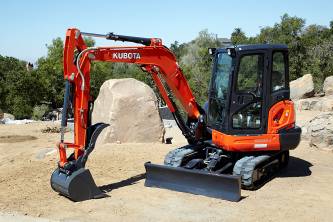

Kubota KX040-4 Angle Blade
Thank you!
Your quote request has been received. We'll be in touch shortly.
Specifications
- Engine Model Kubota D1803-CR-TE4
- Horsepower (gross) 40.4
- Displacement (cu. in.) 111.4
- Overall Length, ft (mm) 16ft 8.2in (5085)
- Overall Height, ft (mm) 8ft 1.8in (2485) / 8ft 1.8in (2485)
- Overall Width, ft (mm) 5ft 6.9in - 5ft 10.9in (1700-1800)
- Min. Ground Clearance, in (mm) 12.99in (330)
- Crawler Length, ft (mm) 7'1.6in (2175)
- Pump Capacity, GPM (LPM) 24.4 (92.4)
- Auxiliary Hydraulics Flow Rate, GPM (LPM) 17.2 (65) / 9.8 (37)
- Bucket Breakout Force, lbs (kgf) 9535 (4325)
- Arm Breakout Force, lbs (kgf) 4112 (1865)
- Traveling Speed: High, mph (kph) 1.8 (2.9)
- Traveling Speed: Low, mph (kph) 3.1 (5.0)
- Ground Contact Pressure psi, kgf (cm2) Rubber: 4.53 (31.2) / 4.68 (32.3), Steel: 4.61 (31.8) / 4.76 (32.8), Angle Blade Rubber: 4.70 (32.4) / 4.86 (33.5), Angle Blade Steel: 4.78 (33.0) / 4.93 (34.0), Rubber canopy/cab: 4.87 (33.6) / 5.02 (34.6), Steel canopy/cab: 4.95 (34.1) / 5.10 (35.2)
- Blade Width, ft (mm) 5ft 6.9in (1700) / 5ft 10.9in (1800), Angle blade: 5ft 10.9in (1800)
- Blade Height, in (mm) 13.8in (350) / 1ft 3.2in (385), Angle Blade: 1ft 3.2in (385)
- Hydraulic Oil Reservoir / System, gal (l) 11.1 (42) / 19.6 (74)
- Fuel Reservoir, gal (l) 16.9 (64)
- Operating Weight, lbs (kg) Rubber: 9195-9900 (4170-4490) / 9500-10210 (4310-4630) Steel: 9350-10050 (4240-4560) / 9655-10360 (4380-4700), Angle Blade Rubber: 9900 (4490) / 10210 (4630), Angle Blade Steel: 10050 (4560) / 10360 (4700)
