Description
With an available Extended Dipper and optional hydraulic angle blade, the Kubota KX033-4 is unlike any Kubota compact excavator you’ve ever seen before. Dig comfortably, with a spacious cab, and make sure that you can get the job done the right way, every time. Once you sit down behind the controls of the KX033-4, you’ll never want to step away. Kubota is the world’s #1 selling compact excavator for 20 years.*
Request a Quote

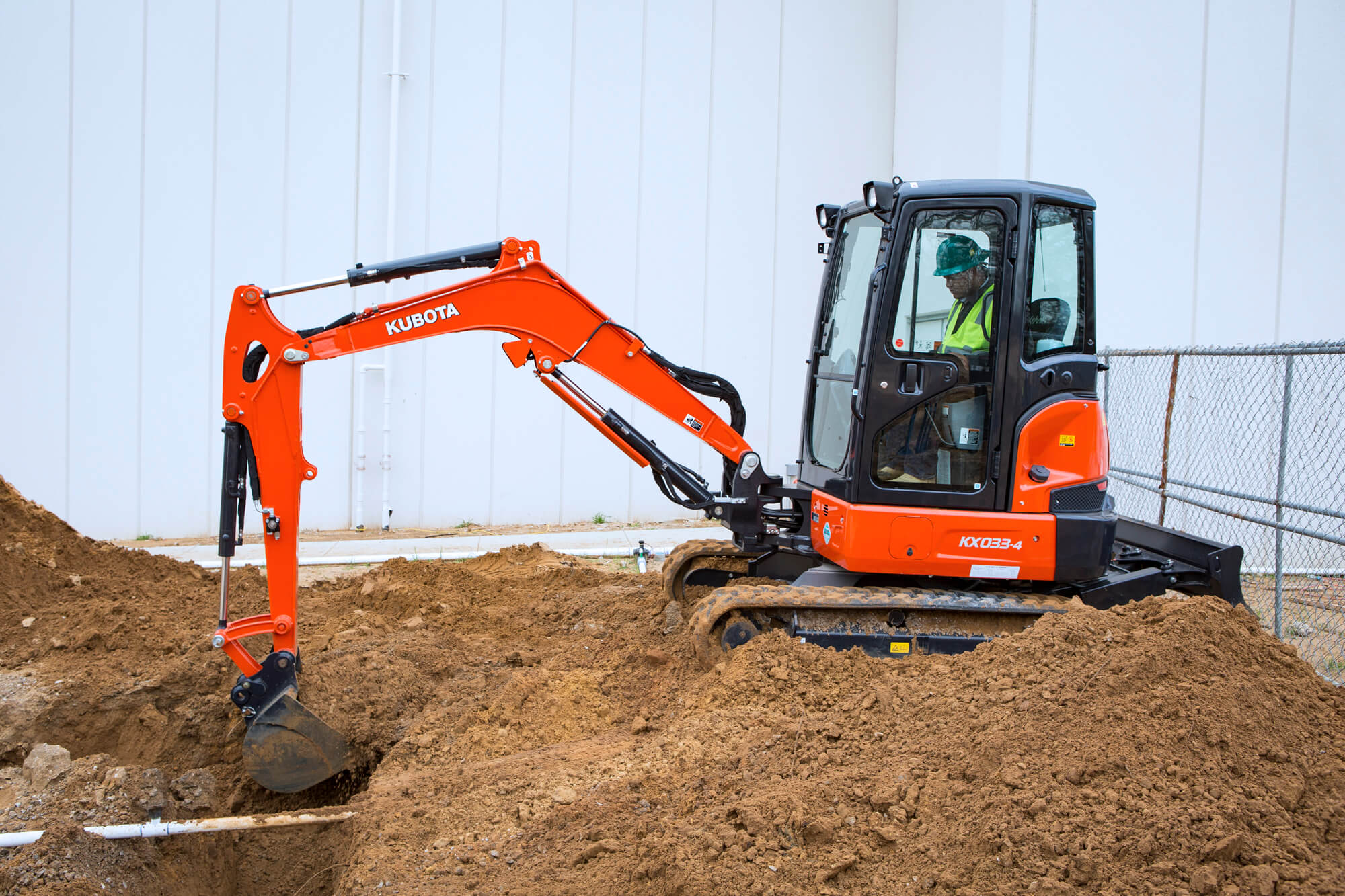

Kubota KX033-4 Angle Blade
Thank you!
Your quote request has been received. We'll be in touch shortly.
Specifications
- Engine Model Kubota D1703M-DI-E4
- Horsepower (gross) 23.3
- Displacement (cu. in.) 100.5
- Overall Length, ft (mm) 15 ft 6 in (4730)
- Overall Height, ft (mm) 8 ft 1 in (2480)
- Overall Width, ft (mm) 5'1" (1550)
- Min. Ground Clearance, in (mm) 11.4 (290)
- Crawler Length, ft (mm) 6 ft 10.6 in (2100)
- Pump Capacity, GPM (LPM) 10.5 (39.6) x 2 / 5.5 (20.9) x 1
- Auxiliary Hydraulics Flow Rate, GPM (LPM) 15.8 (60)
- Bucket Breakout Force, lbs (kgf) 8138 (3694)
- Arm Breakout Force, lbs (kgf) 3867 (1756)
- Traveling Speed: High, mph (kph) 1.9 (3.0)
- Traveling Speed: Low, mph (kph) 2.9 (4.6)
- Ground Contact Pressure psi, kgf (cm2) Canopy rubber/steel: 4.365 (0.307) / 4.482 (0.315), Cab rubber/steel: 4.559 (0.321) / 4.676 (0.329), Angle Blade canopy rubber/steel: 4.583 (0.322) / 4.700 (0.331) Angle Blade cab rubber/steel: 4.776 (0.336) / 4.894 (0.344)
- Blade Width, ft (mm) 5 ft 1 in (1550)
- Blade Height, in (mm) 13.5 in (345), Angle Blade: 1'3.2" (385)
- Hydraulic Oil Reservoir / System, gal (l) 11.8 (44.6) / 16.1 (61)
- Fuel Reservoir, gal (l) 12.4 (46.9)
- Operating Weight, lbs (kg) Canopy rubber/steel: 7420 (3365) / 7616 (3454) Cab rubber/steel: 7742 (3511) / 7938 (3600), Angle Blade canopy rubber/steel: 7781 (3529) / 7978 (3618), Angle Blade cab rubber/steel: 8104 (3675) / 8300 (3764)
