Description
With 23.3 horsepower the KX030-4 gets the job done where larger excavators cannot maneuver. Powerful breakout forces combined with the ability to simultaneously operate the pilot controlled hydraulic functions makes the work day more production. Kubota is the world’s #1 selling compact excavator for 20 years.*
Request a Quote

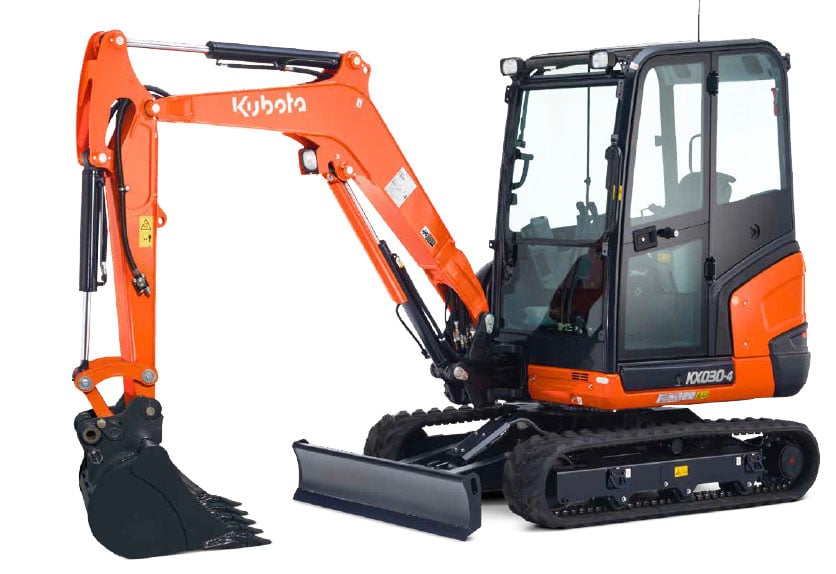

Kubota KX030-4
Thank you!
Your quote request has been received. We'll be in touch shortly.
Specifications
- Engine Model V1505-BH
- Horsepower (gross) 23.3
- Displacement (cu. in.) 91.4
- Overall Length, ft (mm) 15ft 1.1in (4600)
- Overall Height, ft (mm) 7ft 11in (2420)
- Overall Width, ft (mm) 4ft 11in (1500)
- Min. Ground Clearance, in (mm) 11.6in (295)
- Crawler Length, ft (mm) 6ft 5.9in (1980)
- Pump Capacity, GPM (LPM) 8.3 (31.5) Piston x 2 / 4.7 (18) Gear x 1
- Auxiliary Hydraulics Flow Rate, GPM (LPM) 13. (49.5)
- Bucket Breakout Force, lbs (kgf) 6924 (3140.7)
- Arm Breakout Force, lbs (kgf) 3484 (1580.6)
- Traveling Speed: Low, mph (kph) 1.7 (2.7)
- Traveling Speed: High, mph (kph) 2.7 (4.3)
- Ground Contact Pressure psi, kgf (cm2) 3.9 (0.27) / 4.0 (0.28)
- Blade Width, ft (mm) 4ft 11in (1500)
- Blade Height, in (mm) 11.8in (300)
- Hydraulic Oil Reservoir / System, gal (l) 9.0 (33.9) / 13.7 (52.0)
- Fuel Reservoir, gal (l) 12.7 (48)
- Operating Weight, lbs (kg) 6272 / 6426 (2845 / 2915)
