Description
Digging has never been easier than with the Kubota KX018-4 compact excavator. Combine the KX018-4’s 16.1 horsepower with superior maneuverability and versatility, and you’ll never worry about whether or not you can get the job done. Dig to your heart’s desire and do it comfortably, in the KX018-4’s spacious optional cab. There’s never been a better way to move ground. Kubota is the world’s #1 selling compact excavator for 20 years.*
Request a Quote

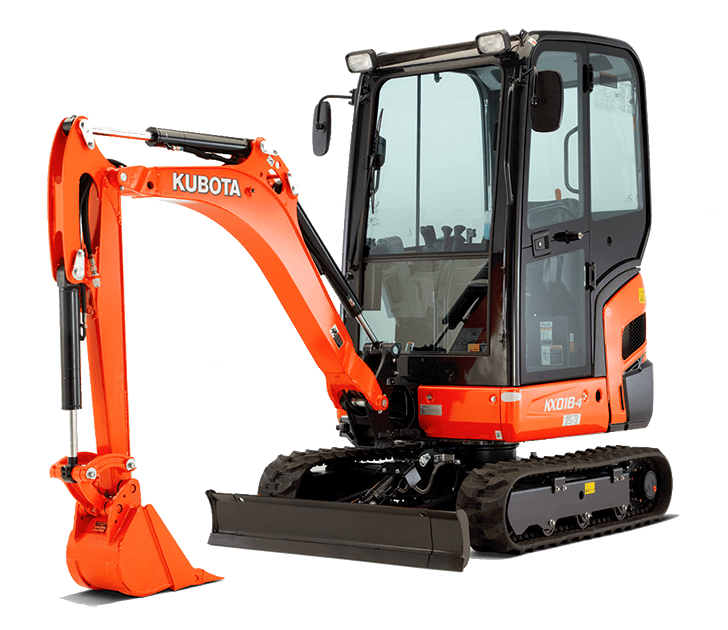

Kubota KX018-4
Thank you!
Your quote request has been received. We'll be in touch shortly.
Specifications
- Engine Model Kubota D902-BH-E4
- Horsepower (gross) 16.1
- Displacement (cu. in.) 54.80
- Overall Length, ft (mm) 12ft 2.1in (3710)
- Overall Height, ft (mm) 7ft 7.7in (2330) / 7ft 8.5in (2350)
- Overall Width, ft (mm) 4ft 3.2in (1300) / 3ft 3.0in (990)
- Min. Ground Clearance, in (mm) 6.3in (160)
- Crawler Length, ft (mm) 5ft 2.6in (1590)
- Pump Capacity, GPM (LPM) 4.6 (17.3) × 2 / 2.8 (10.4) × 1 / 1.7 (6.2) × 1
- Auxiliary Hydraulics Flow Rate, GPM (LPM) 7.4 (27.7)
- Bucket Breakout Force, lbs (kgf) 3594 (1630)
- Arm Breakout Force, lbs (kgf) 1852 (840)
- Traveling Speed: High, mph (kph) 1.4 (2.2)
- Traveling Speed: Low, mph (kph) 2.5 (4.0)
- Ground Contact Pressure psi, kgf (cm2) 3.7 (0.26) / 3.8 (0.27)
- Blade Width, ft (mm) 4ft 3.2in (1300) / 3ft 3.0in (990)
- Blade Height, in (mm) 9.1in (230)
- Hydraulic Oil Reservoir / System, gal (l) 4.1 (15.5) / 7.4 (28)
- Fuel Reservoir, gal (l) 5.6 (21)
- Operating Weight, lbs (kg) 3748 (1700) / 3968 (1800)
