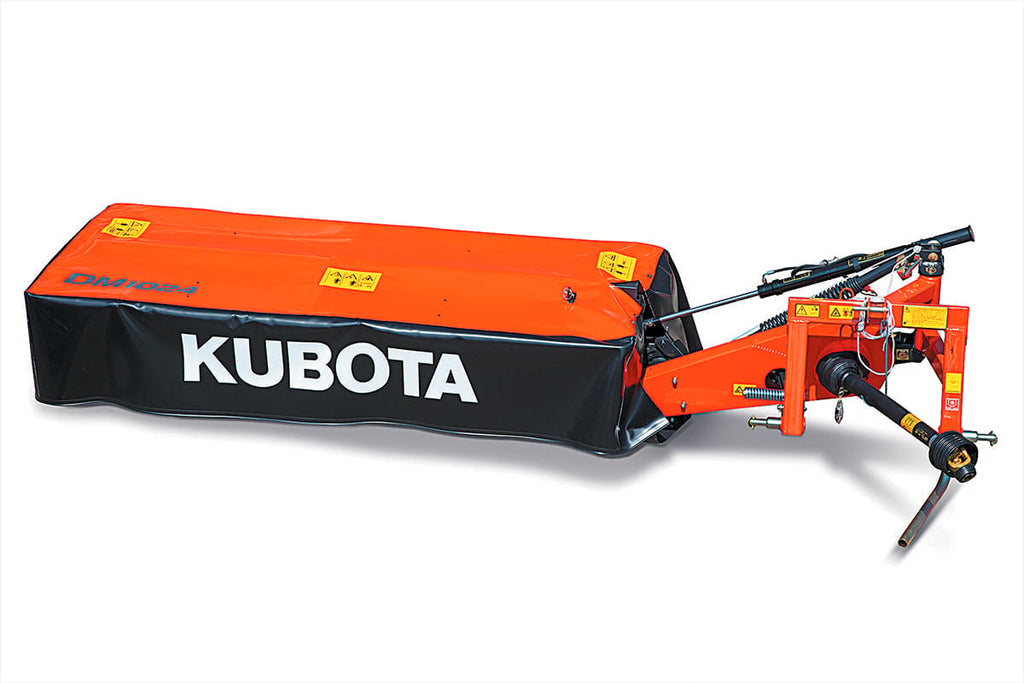

Kubota DM1024
Thank you!
Your quote request has been received. We'll be in touch shortly.
Specifications
- Cutting Width ft. (m) 7' 9" (2.4)
- Weight lbs. (kg) 1091 (495) w/ PTO shaft
- Transport Width ft. (m) 3' 9" (1.2)
- Hitch (CAT) 2
- Pin Hitch Not Available
- PTO RPM 540
- Minimum PTO Horsepower Required HP/KW 46/34
- Number of Disc and Knives 6/18
- Remotes 1
- Cutterbar Operating Angle -45/+45
- Stubble Height in. (mm) 0.75“ - 2“ (19-51)
- BreakAway Standard
- Non-Stop BreakAway N/A
- Overrun Clutch Standard
- Swath Board (RH/LH) Standard/Optional
- Swath Rollers (RH/LH) Optional (RH)
- High Skids +20/+40/+80 mm 20 Standard, 40 & 80 Optional
- Lighting Kit Optional
