Description
The Kubota BV5200 SC-14 series of balers are fully ISOBUS ready and come standard with a rotary intake 14 knife precutting system. These balers have been designed with silage in mind, but can handle all types of crops and conditions. The unique bale chamber design ensures the least amount of air in your silage bales, which increases your silage quality and bale density! Combine that with a hydraulic drop floor, endless belts, auto chain oilers, and the optional moisture sensor and the BV5200 is a great choice for your high capacity operation!
Request a Quote

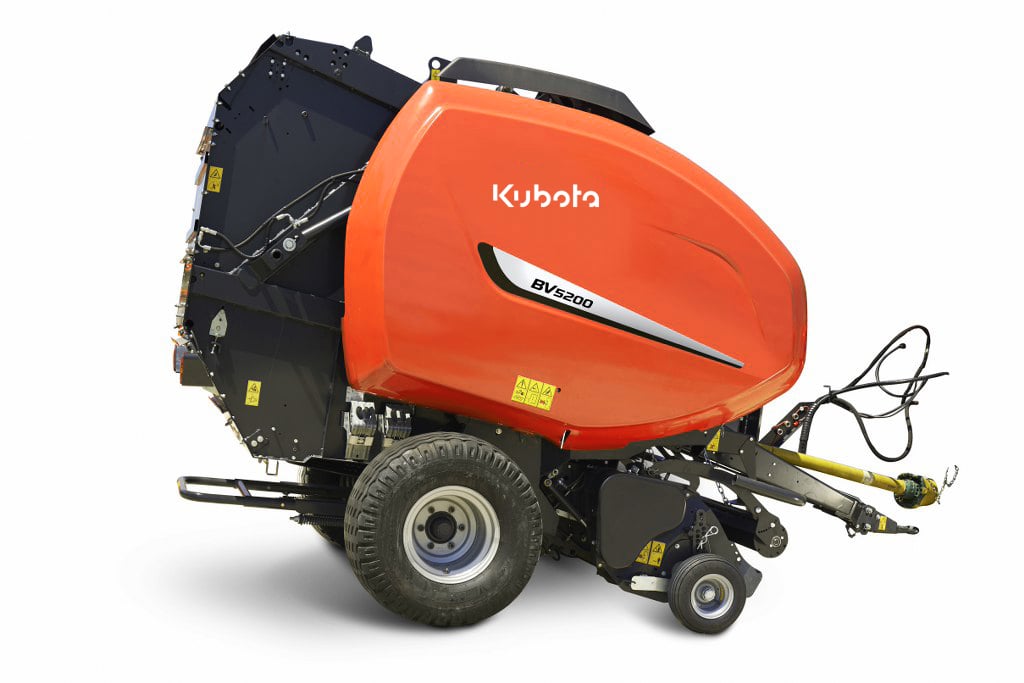

Kubota BV5200
Thank you!
Your quote request has been received. We'll be in touch shortly.
Specifications
- Length in. 187"
- Width in. 99"
- Height in. 111"
- Weight lbs. (kg) 7275
- Diameter Min in. 24"
- Diameter Max in. 79"
- Bale Width in. 47"
- Bale Height in. 60"
- Bale Formation 5 Belts + 3 Rollers
- Endless Belts Standard
- Bale Ramp Standard
- Working Width in. 86"
- Number of Tine Rows 5
- Tine Spacing in. 2.36"
- Windguard Roller wind guard
- Pneumatic Gauge Wheel Standard
- Flare to Flare Pickup 86"
- Lift Hydraulic
- Pickup Protection Radial Clutch
- Fork Feeder N/A
- Protection, Cam Clutch N/A
- SuperCut-14 Knives Standard
- Single Knife Protection Standard
- Unblocking System Hydraulic Drop floor
- 1 Main Chain 1.25"
- 1 1/4" Main Drive Chain Standard
- Wide Angle PTO Shaft Standard
- Shear Bolt Protection N/A
- Cam Clutch Protection Standard
- Binding Net / Twine
- Monitor TellusGO/IsoMatch
- Twine Double Arm
- ISOBUS Standard
- Focus Terminal Standard
- IsoMatch Tellus Optional
- Hydraulic Outlets 1SA + 1DA
- Wheels and Axles | 11.5/80-15 N/A
- Wheels and Axles | 15.0/55-17 Standard
- Wheels and Axles | 19.0/45-17 Optional
- Wheels and Axles | 500/45-22.5 Optional
- PTO rpm 540CV
- PTO Protection CamClutch
- Minimum PTO Horsepower Required HP/KW 70
