Description
The Kubota BV5160 SC-14 series of balers are fully ISO ready and come standard with a 14 knife cutting system. These balers have been designed with silage in mind, but can handle all types of crops and conditions. The unique bale chamber design ensures the least amount of air in your silage bales, which increases your silage quality and bale density!
Request a Quote

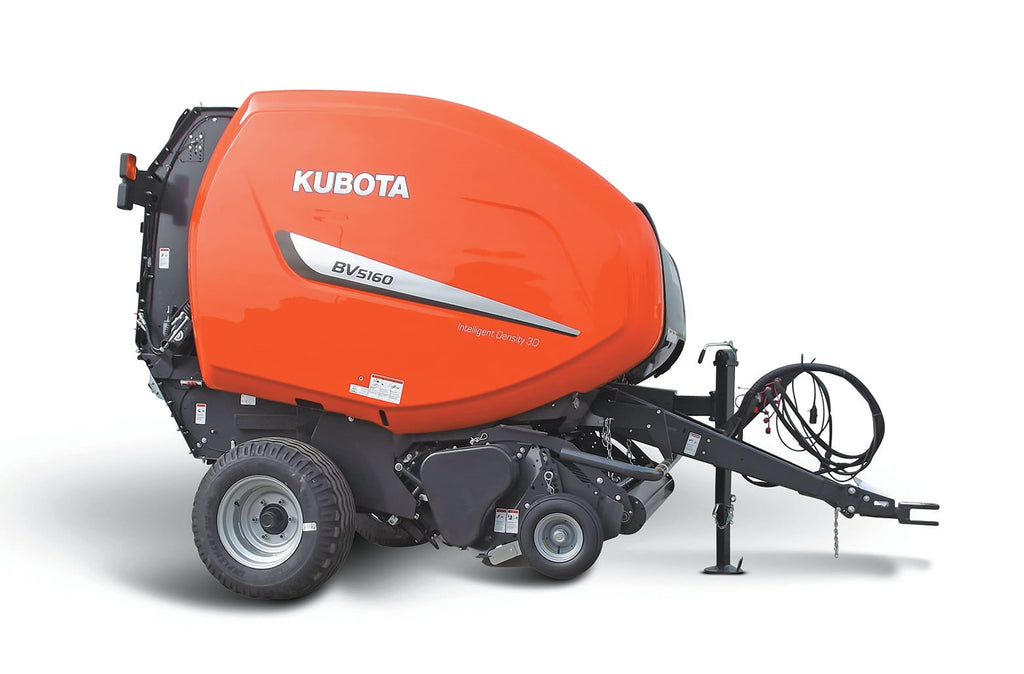

Kubota BV5160 SC-14
Thank you!
Your quote request has been received. We'll be in touch shortly.
Specifications
- Length in. 176"
- Width in. 99"
- Height in. 106"
- Weight lbs. (kg) 7165
- Diameter Min in. 24"
- Diameter Max in. 65"
- Bale Width in. 47"
- Bale Height in. 60"
- Bale Formation 5 Belts + 3 Rollers
- Endless Belts Standard
- Bale Ramp Standard
- Working Width in. 86"
- Number of Tine Rows 5
- Tine Spacing in. 2.36"
- Windguard Roller wind guard
- Pneumatic Gauge Wheel Standard
- Flare to Flare Pickup 86"
- Lift Hydraulic
- Pickup Protection Radial Clutch
- Fork Feeder N/A
- Protection, Cam Clutch N/A
- SuperCut-14 Knives Standard
- Single Knife Protection Standard
- Unblocking System Hydraulic Drop floor
- 1 Main Chain 1.25"
- 1 1/4" Main Drive Chain Standard
- Wide Angle PTO Shaft Standard
- Shear Bolt Protection N/A
- Cam Clutch Protection Standard
- Binding Net / Twine
- Monitor TellusGO
- Twine Double Arm
- ISOBUS Standard
- Focus Terminal Standard
- IsoMatch Tellus NA / Standard
- Hydraulic Outlets 1SA + 1DA
- Wheels and Axles | 11.5/80-15 N/A
- Wheels and Axles | 15.0/55-17 Standard
- Wheels and Axles | 19.0/45-17 Optional
- Wheels and Axles | 500/45-22.5 Optional
- PTO rpm 540CV
- PTO Protection CamClutch
- Minimum PTO Horsepower Required HP/KW 75
