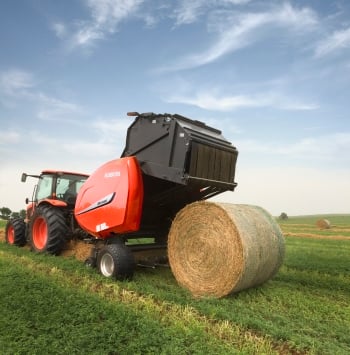

Kubota BV4580Net
Thank you!
Your quote request has been received. We'll be in touch shortly.
Specifications
- Length in. 176"
- Width in. 116"
- Height in. 112"
- Weight lbs. (kg) 7275 / 7175
- Diameter Min in. 24"
- Diameter Max in. 71"
- Bale Width in. 62"
- Bale Formation 8 belts + 3 rollers
- Types of Belts Mato Plate
- Bale Ramp Standard
- Working Width in. 86"
- Number of Bars 5
- Number of Tine Rows 160
- Tine Spacing in. 2.36"
- Windguard Roller wind guard
- Pneumatic Gauge Wheel Standard
- Flare to Flare Pickup 86
- Lift Hydraulic
- Lift Protection Radial Clutch
- Rotor Feeder Standard
- Protection, Cam Clutch Standard
- 1 Main Chain 100
- 1 1/4" Main Drive Chain Standard
- Wide Angle PTO Shaft Standard
- Shear Bolt Protection Standard
- Cam Clutch Protection Standard
- Binding Net/Twine
- Monitor Focus
- Twine Double arm / NA
- ISOBUS Optional
- Focus Terminal Standard
- IsoMatch Tellus Optional
- Hydraulic Outlets 1SA + 1DA
- Wheels and Axles | 14L-16.1SL Standard
- Wheels and Axles | 16.5-16.1SL Optional
- PTO rpm 540
- PTO Protection Slipclutch
- Minimum PTO Horsepower Required HP/KW 70
