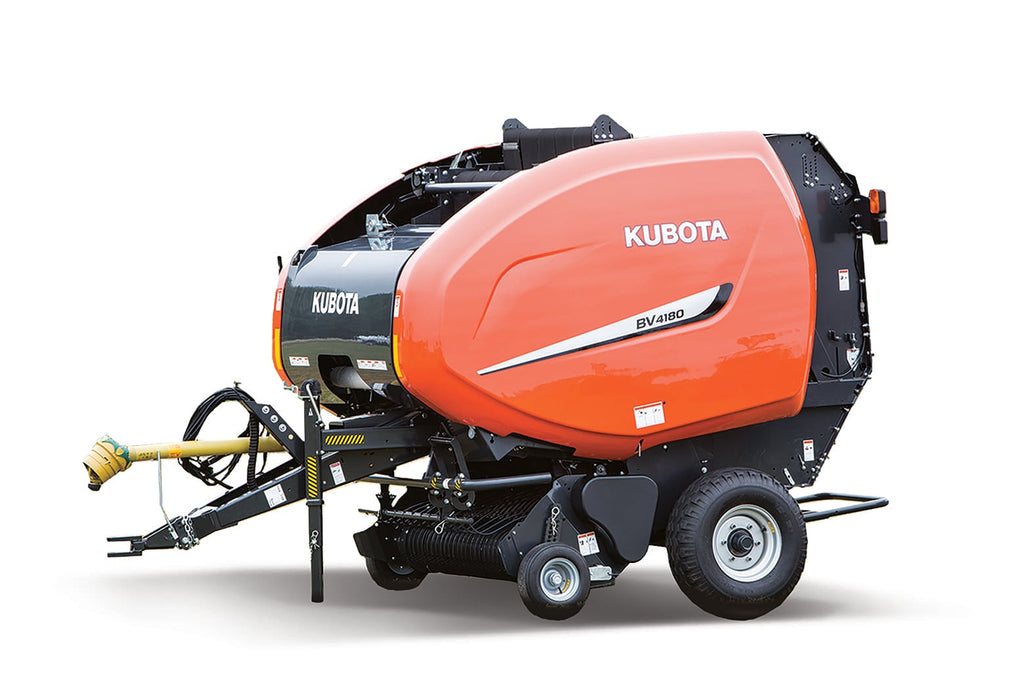

Kubota BV4180SS
Thank you!
Your quote request has been received. We'll be in touch shortly.
Specifications
- Length in. 176" (4.5)
- Width in. 99" (2.5)
- Height in. 112" (2.8)
- Weight lbs. (kg) 5752-5952 (2609-2700)
- Diameter Min in. 31" (.8)
- Diameter Max in. 71" (1.8)
- Bale Width in. 47" (1.2)
- Bale Formation 5 Belts + 3 Rollers
- Types of Belts Mato Plate
- Bale Ramp Standard
- Working Width in. 79"
- Number of Tine Rows 112
- Tine Spacing in. 2.36"
- Windguard Crop deflector
- Pneumatic Gauge Wheel Standard
- Tine to Tine Pickup 65
- Flare to Flare Pickup 79
- Lift Hydraulic
- Lift Protection Radial Clutch
- Fork Feeder Standard
- Protection, Cam Clutch Standard
- Driveline Chain 100
- 1 1/4" Main Drive Chain Standard
- Wide Angle PTO Shaft Standard
- Shear Bolt Protection Standard
- Cam Clutch Protection Standard
- Binding Net/Twine
- Monitor Focus
- Twine Double arm / N/A
- ISOBUS Optional
- Focus Terminal Standard
- IsoMatch Tellus Optional
- Hydraulic Outlets 1SA + 1DA
- Wheels and Axles | 31x13.5-15 Standard
- Wheels and Axles | 19.0/45-17 Optional
- PTO rpm Wide angle / 540
- PTO Protection Slip clutch
- Minimum PTO Horsepower Required HP/KW 40 - 60
