Description

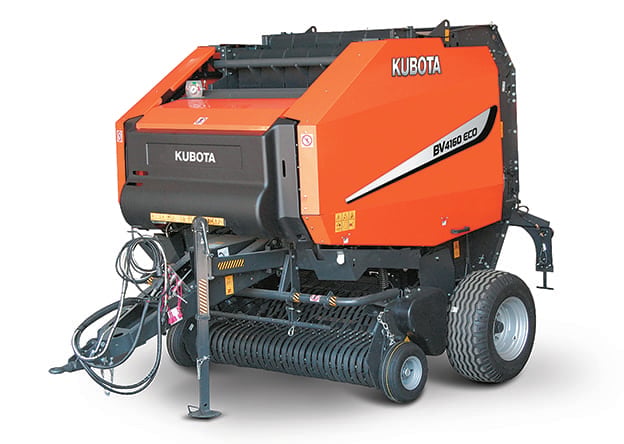

For great looking bales, season after season, you can’t go wrong with the Kubota BV4160. The high capacity pickup baler features a 4-bar 79” working width and low profile, perfect for working with efficiency and keeping crop loss at a minimum. Kubota’s PowerBind net wrap system brings you a tight wrap and is easily loaded without any tools. You’ll even control your baler from the comfort of your operator station with the Focus III terminal. Reliable and simple, the BV4160 is ready to bring you high quality bales and nothing less.
Request a Quote
Kubota BV4160SS
Thank you!
Your quote request has been received. We'll be in touch shortly.
Specifications
- Length in. 176" (4.5)
- Width in. 99" (2.5)
- Height in. 106" (2.7)
- Weight lbs. (kg) 5642-5842 (2559-2650)
- Diameter Min in. 31" (.8)
- Diameter Max in. 65" (1.7)
- Bale Width in. 47" (1.2)
- Bale Formation 5 Belts + 3 Rollers
- Types of Belts Mato Plate
- Bale Ramp Standard
- Working Width in. 79"
- Number of Tine Rows 112
- Tine Spacing in. 2.36"
- Windguard Crop deflector
- Pneumatic Gauge Wheel Standard
- Tine to Tine Pickup 65
- Flare to Flare Pickup 79
- Lift Hydraulic
- Lift Protection Radial Clutch
- Fork Feeder Standard
- Protection, Cam Clutch Standard
- Driveline Chain 100
- 1 1/4" Main Drive Chain Standard
- Wide Angle PTO Shaft Standard
- Shear Bolt Protection Standard
- Cam Clutch Protection Standard
- Binding Net/Twine
- Monitor Focus
- Twine Double arm / N/A
- ISOBUS Optional
- Focus Terminal Standard
- IsoMatch Tellus Optional
- Hydraulic Outlets 1SA + 1DA
- Wheels and Axles | 31x13.5-15 Standard
- Wheels and Axles | 19.0/45-17 Optional
- PTO rpm Wide angle / 540
- PTO Protection Slip clutch
- Minimum PTO Horsepower Required HP/KW 40 - 60
