Description
423 gal./min capacity
Solid handling capability up to 1 1/16"
Cast iron volute and impeller
Quick clean out port
Request a Quote

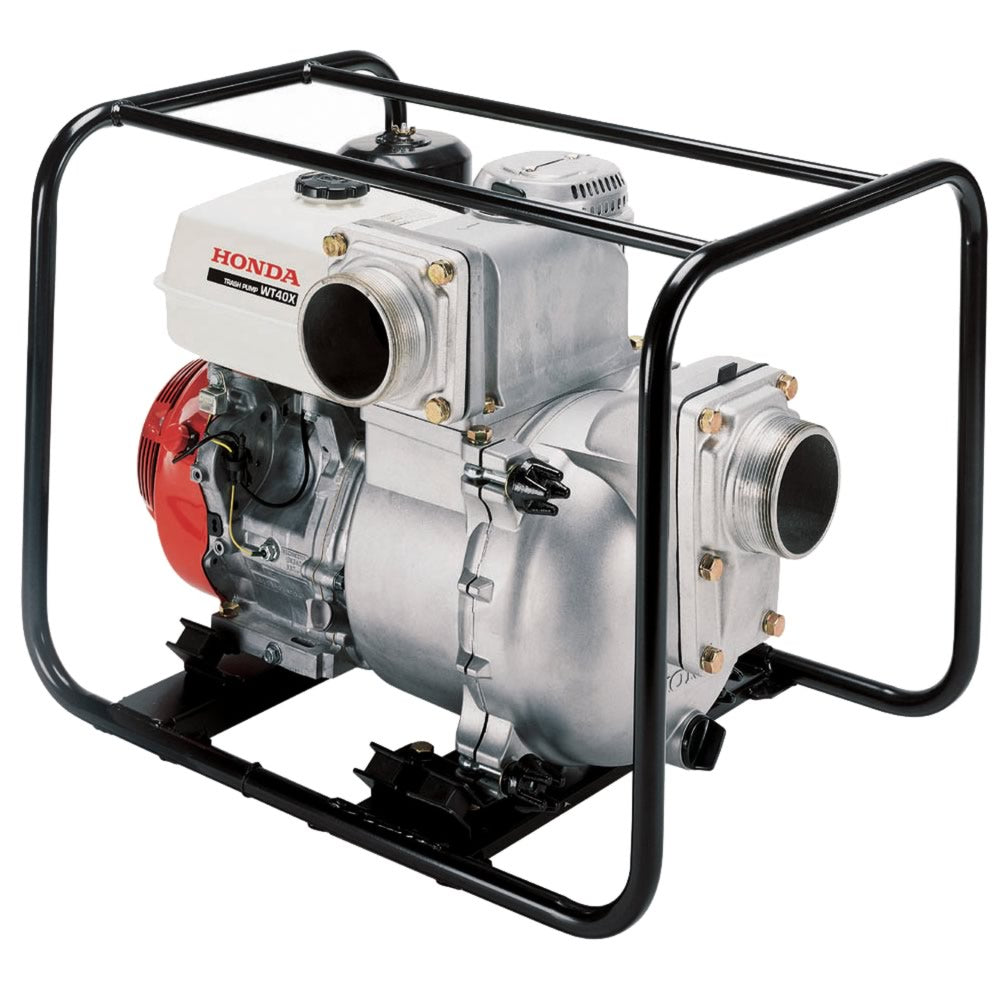

Honda WT40
Thank you!
Your quote request has been received. We'll be in touch shortly.
Specifications
Specifications
Engine GX390
Displacement 389 cc
Bore and stroke 3.5" x 2.5"
Compression Ratio 8.2:1
Oil Alert Std
Pump Type Trash Centrifugal Self-priming
Volute Rigid Mounted Cast Iron w/ Stainless Wear Plate
Impeller Conical Cast Iron
Mechanical Seal (Pump case / impeller) Silicon Carbide/Silicon Carbide
Priming time 150 sec. @16.4 ft.
Drive system Direct
Discharge capacity 423 gal/min
Suction port diameter 4"
Discharge port diameter 4"
Total head lift 82 ft.
Suction head lift 26 ft.
Maximum pressure 36 psi
Solids handling 1 1/16 inches
Dimensions (LxWxH) 28.9" x 21.1" x 22.2"
Dry weight 172 lbs.
Fuel Capacity 1.6 gal
Run Time @ Max Discharge 1.5 hr
Strainer Part # 78325-YG2-003
Residential Warranty 24 months
Commercial Warranty 12 months
