Description
317 gal./min capacity
Solid handling capability up to 1 1/16"
Cast iron volute and impeller
Quick clean out port
Request a Quote

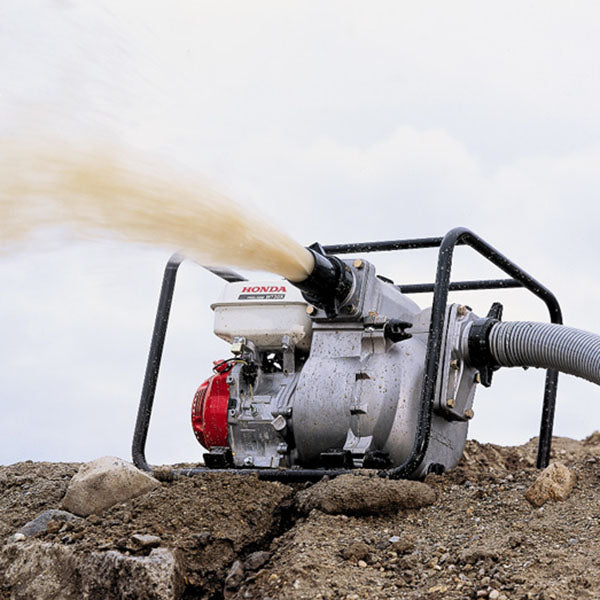

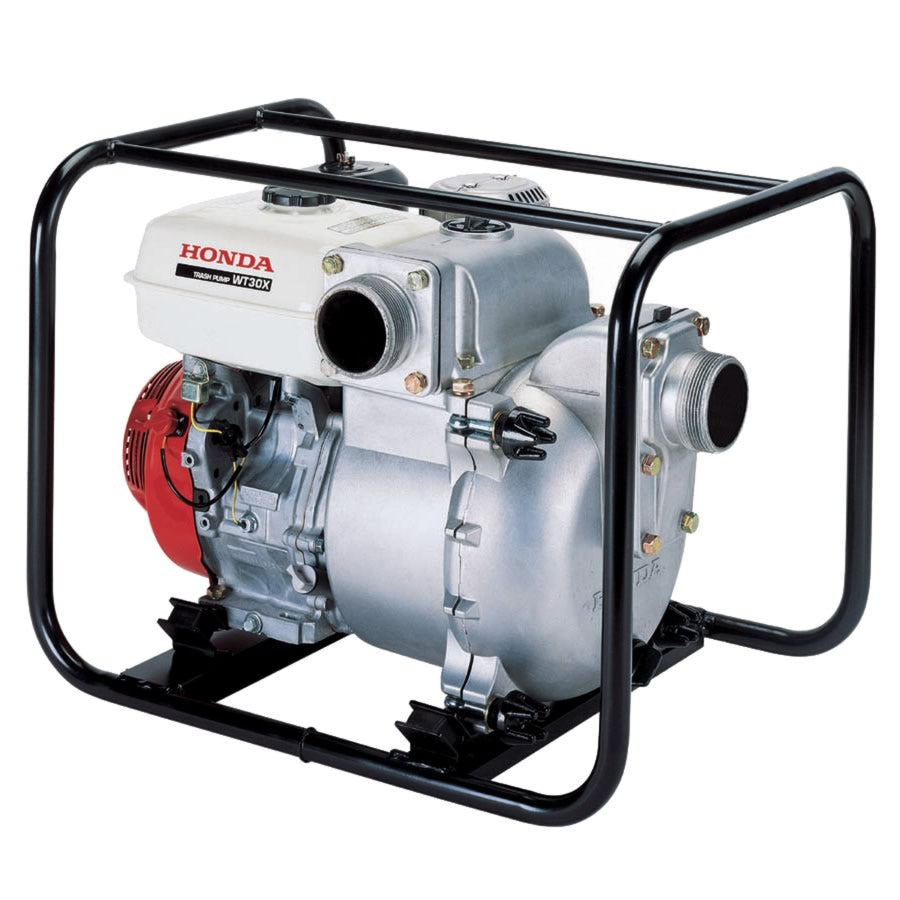

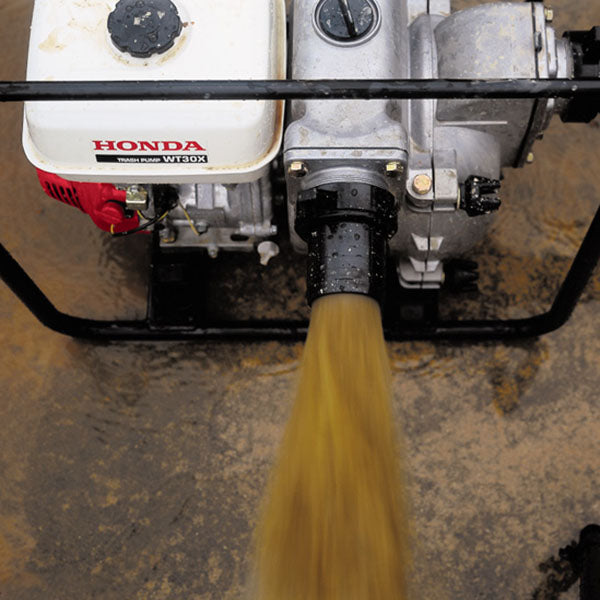

Honda WT30
Thank you!
Your quote request has been received. We'll be in touch shortly.
Specifications
Specifications
Engine GX270
Displacement 270 cc
Bore and stroke 3.0" x 2.3"
Compression Ratio 8.5:1
Oil Alert Std
Pump Type Trash Centrifugal Self-priming
Volute Rigid Mounted Cast Iron w/ Stainless Wear Plate
Impeller Conical Cast Iron
Mechanical Seal (Pump case / impeller) Silicon Carbide/Silicon Carbide
Priming time 90 sec. @ 16.4 ft.
Drive system Direct
Discharge capacity 317 gal/min
Suction port diameter 3"
Discharge port diameter 3"
Total head lift 82 ft.
Suction head lift 26 ft.
Maximum pressure 36 psi
Solids handling 1 1/16 inches
Dimensions (LxWxH) 26.0" x 19.5" x 20.3"
Dry weight 134 lb.
Fuel Capacity 1.4 gal
Run Time @ Max Discharge 1.5 hr
Strainer Part # 78325-YG1-003
Residential Warranty 24 months
Commercial Warranty 12 months
