Description
98 gal./min. capacity
57 psi max.
Cast iron volute and impeller
Request a Quote

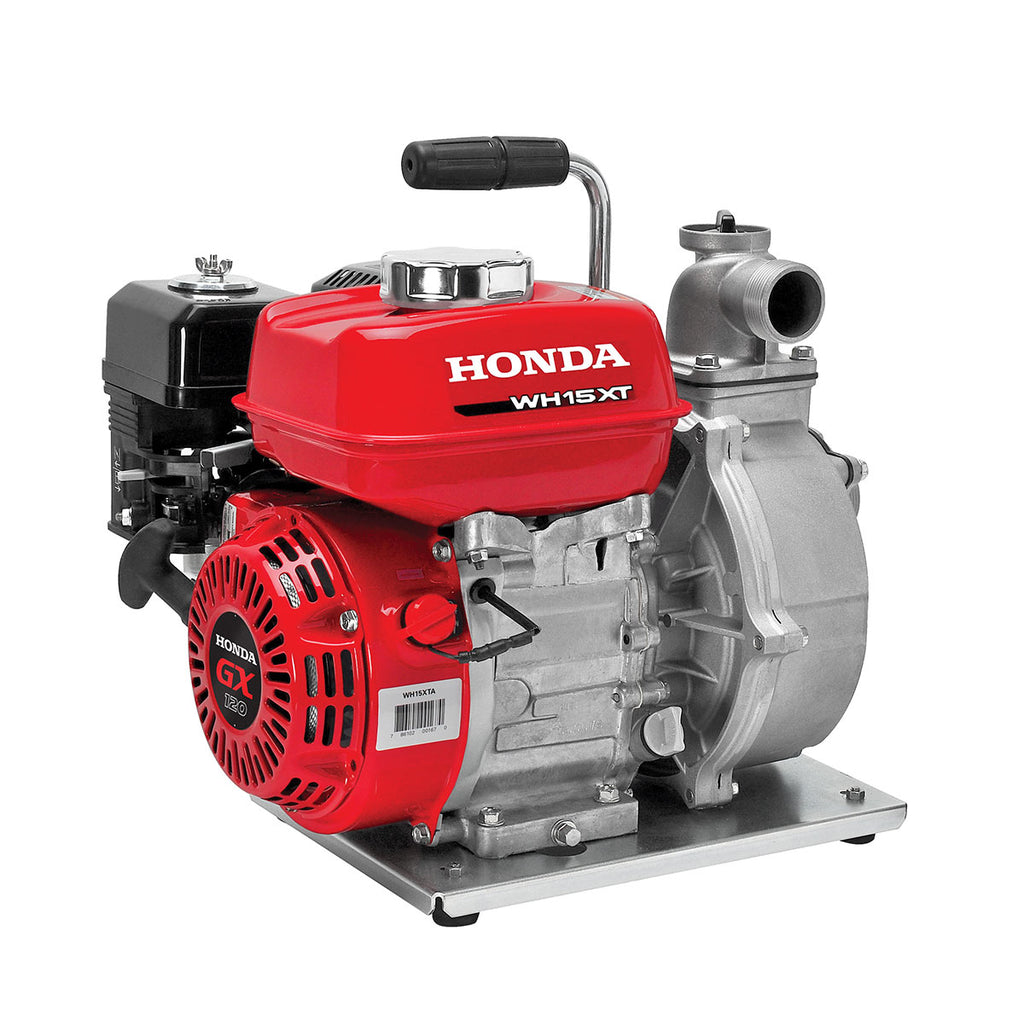

Honda WH15
Thank you!
Your quote request has been received. We'll be in touch shortly.
Specifications
Specifications
Engine GX120
Displacement 118cc
Bore and stroke 2.4" x 1.7"
Compression Ratio 8.5:1
Oil Alert N/A
Pump Type High Pressure, Centrifugal, Self-priming
Volute Rigid Mounted Cast Iron
Impeller Cast Iron
Mechanical Seal (Pump case / impeller) Carbon/Ceramic
Priming time 80 sec. at 16.4 ft.
Drive system Direct
Discharge capacity 98 gals./min.
Suction port diameter 1.5" NPT
Discharge port diameter 1.5" NPT
Total head lift 131 ft.
Suction head lift 26 ft.
Maximum pressure 57 psi
Solids handling N/A
Dimensions (LxWxH) 16.3" x 14.2" x 16.3"
Dry weight 49 lbs.
Fuel Capacity 0.53 gal
Run Time @ Max Discharge 1.5 hr
Strainer Part # 78325-YB7-020
Residential Warranty 24 months
Commercial Warranty 12 months
