Description
290 gal./min. capacity
Silicon carbide mechanical seal
Cast iron volute and impeller
Request a Quote

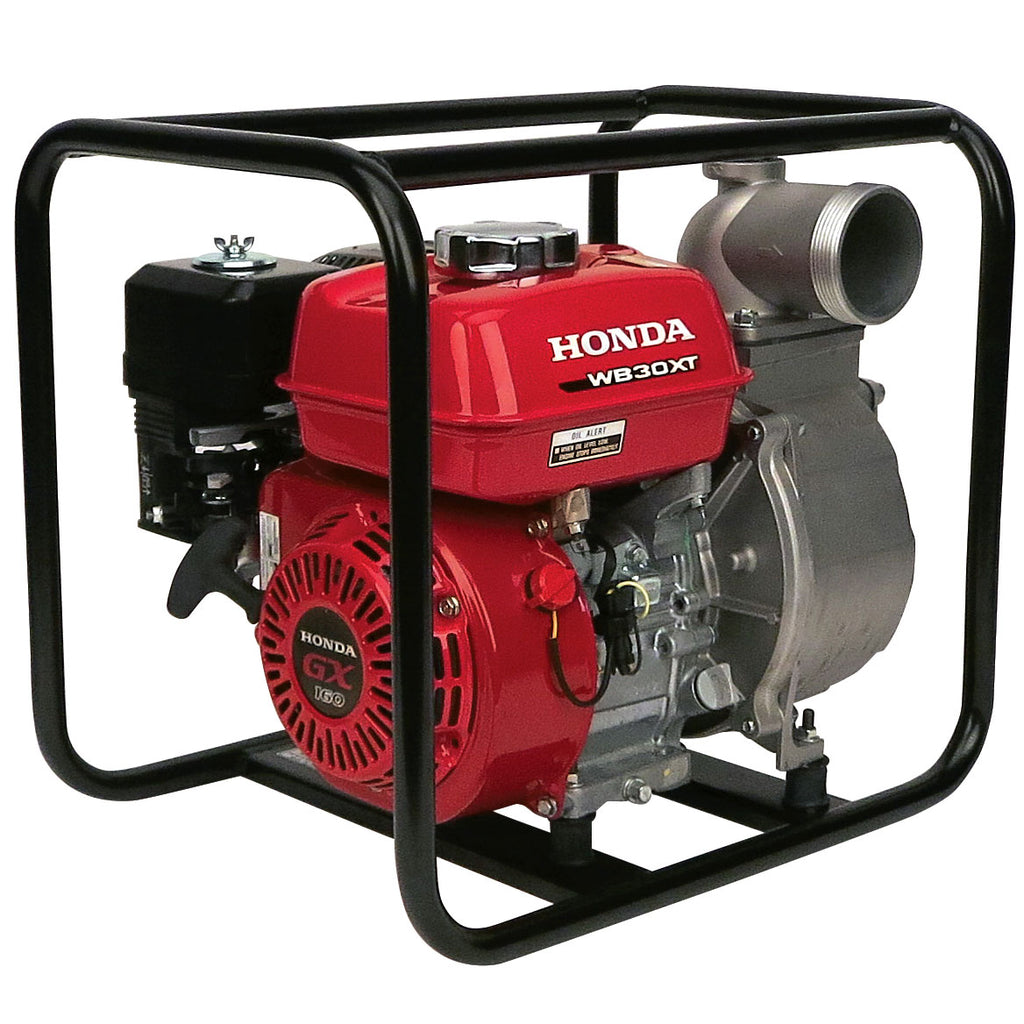

Honda WB30
Thank you!
Your quote request has been received. We'll be in touch shortly.
Specifications
Specifications
Engine GX160
Displacement 163cc
Bore and stroke 2.7" x 1.8"
Compression Ratio 9.0:1
Oil Alert Std
Pump Type Centrifugal, Self-priming
Volute Rigid Mounted Cast Iron
Impeller 4 Vane Cast Iron
Mechanical Seal (Pump case / impeller) Silicon Carbide/Silicon Carbide
Priming time 150 sec @16.4 ft.
Drive system Direct
Discharge capacity 290 gal/min
Suction port diameter 3" NPT
Discharge port diameter 3" NPT
Total head lift 85 ft.
Suction head lift 25 ft.
Maximum pressure 37 psi
Solids handling N/A
Dimensions (LxWxH) 20.1"x 15.2" x 17.9"
Dry weight 57 lb.
Fuel Capacity 0.82 gal
Run Time @ Max Discharge 1.9 hr
Strainer Part # 78325-YG4-000
Residential Warranty 24 months
Commercial Warranty 12 months
