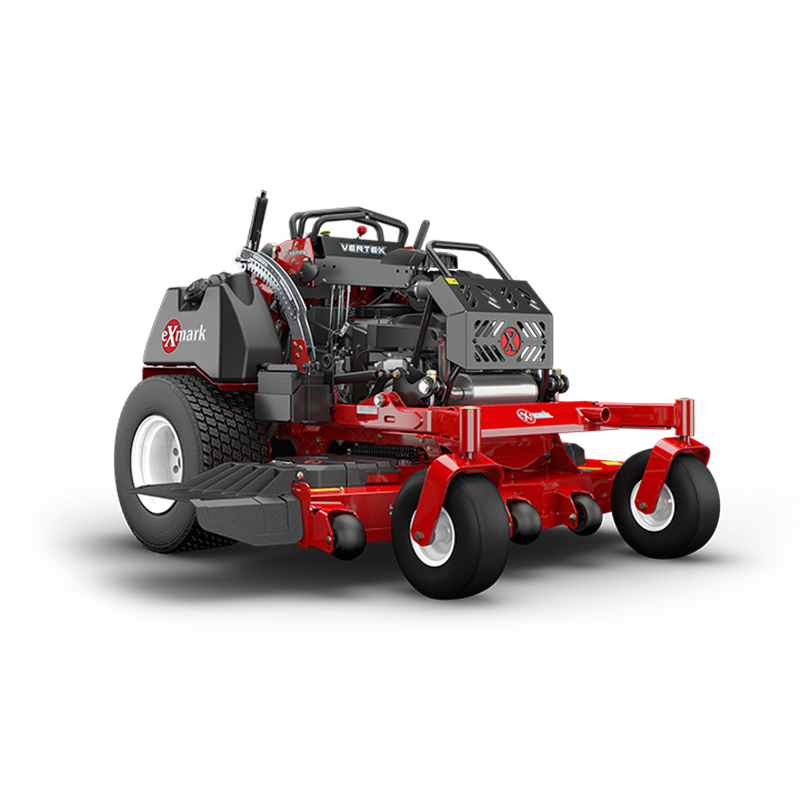

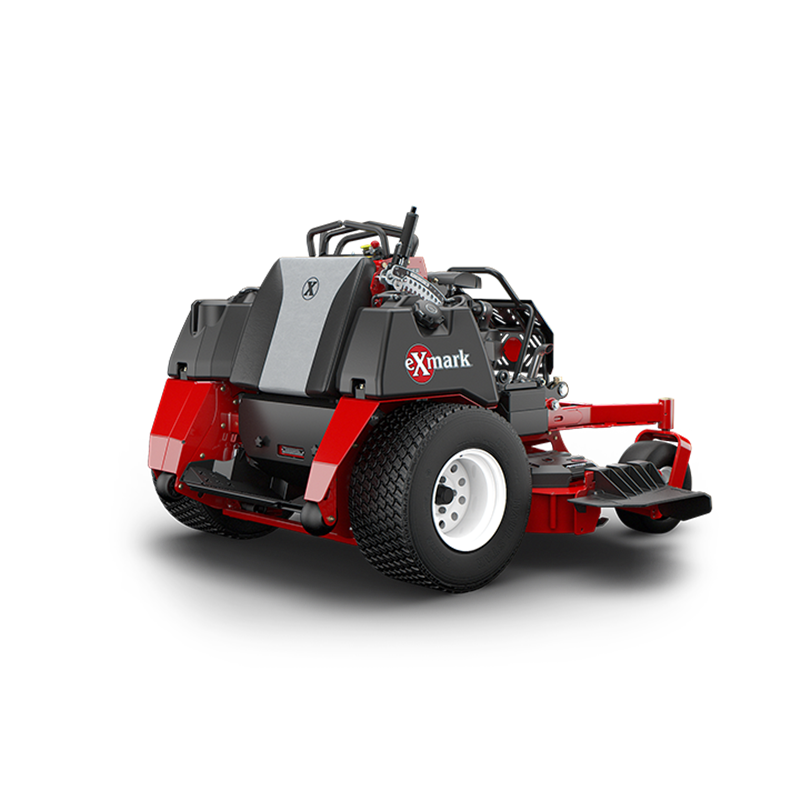

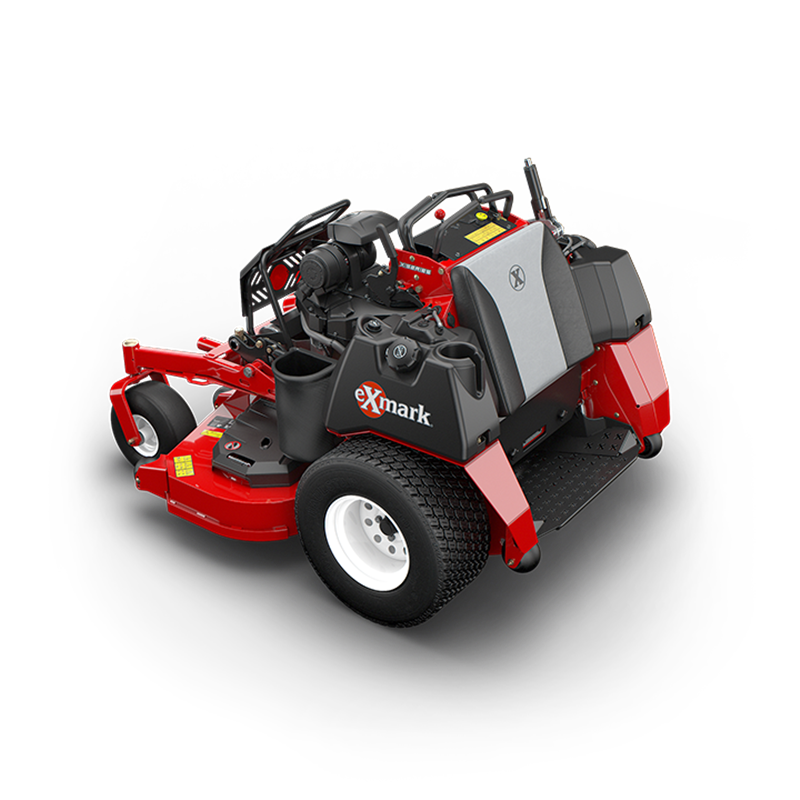

Exmark Vertex X-Series with 38.5 HP* Kawasaki FX1000V Engine and 72" UltraCut Series 6 Deck
Exmark Vertex X-Series with 38.5 HP* Kawasaki FX1000V Engine and 72" UltraCut Series 6 Deck
Exmark Vertex X-Series with 38.5 HP* Kawasaki FX1000V Engine and 72" UltraCut Series 6 Deck
Roll over image to zoom in Click on image to zoom
Exmark Vertex X-Series with 38.5 HP* Kawasaki FX1000V Engine and 72" UltraCut Series 6 DeckExmark Vertex X-Series with 38.5 HP* Kawasaki FX1000V Engine and 72" UltraCut Series 6 DeckExmark Vertex X-Series with 38.5 HP* Kawasaki FX1000V Engine and 72" UltraCut Series 6 Deck

Exmark Vertex X-Series with 38.5 HP* Kawasaki FX1000V Engine and 72" UltraCut Series 6 Deck

Exmark
Title: VXX999EKA72600
Price:
$18,103.98 USD

Request a Quote

Exmark Vertex X-Series with 38.5 HP* Kawasaki FX1000V Engine and 72" UltraCut Series 6 Deck

Thank you!

Your quote request has been received. We'll be in touch shortly.

Description

Designed to raise the bar for stand-on mower performance and productivity, Vertex X-Series uses the same formed and welded tubular steel frame and heavy-duty 15-inch casters as our premier Lazer Z zero-turn riding mowers. With carbureted Kawasaki FX1000 engines, you'll have the power to finish jobs faster, with a better quality of cut thanks to our unmatched UltraCut cutting decks. One look and it's easy to see why the Vertex X-Series is the next generation of stand-on mowers.

Request a Quote

Exmark Vertex X-Series with 38.5 HP* Kawasaki FX1000V Engine and 72" UltraCut Series 6 Deck

Thank you!

Your quote request has been received. We'll be in touch shortly.

Specifications

UPC

193308240695

Starter

Electric

Steering Control

Twin levers with center fixed reference bar for ease of control forward and reverse

Front Caster Tires

15 x 6.0-6, smooth-tread, semipneumatic tires with tapered roller bearings.

Drive Tires

24 x 12-12 Hoosier Grass Master

Parking Brake

Lever-actuated internal motor brake

Tractor Frame

Welded, heavy-duty 1.5" x 3.0" tubular steel.

Blade Spindles

No maintenance, sealed and nongreasable spindles; 7.75" diameter cutter housing with 1.75" diameter splined blade driver 1.0"-diameter spindle shaft.

Cup Holder

Yes

Electrical

12-volt battery with 30-amp alternator.

Standard Features

Enhanced Engine Hour Meter

Transmission Brand

Hydro-Gear

Transmission Speeds

Infinitely Variable

Engine Brand

Kawasaki

Engine Model

FX1000V

Engine Displacement

999

Speed

Infinitely variable speed selection 0–12.0 mph forward, 0–5.0 mph reverse

Transmission

Hydrostatic

Engine Series

V-Twin

Fuel System

Electronic Fuel Injected

Engine Spec

AR31-R

Engine Speed

3,600 rpm

Fuel Capacity

14-gallon dual fuel tanks on RH and LH side

Air Filter

Heavy-duty canister air filtration system

Drive Description

Two Hydro-Gear 16 cc pumps powering two Hydro gear 17.8 cubic inch motors.

Fuel Type

Gas EFI

PTO Engagement

Warner 250 ft-lb clutch

Drive System

Hydro-Drive

Fuel Indicator

Float gauge

Drive Wheel Release

Allows unit movement without engine running.

Deck Lift

Single point HOC; with mechanical lift-assist springs.

Carb Compliant

NO

Safety Package

Operator Presence Controls (OPC) with safety interlock system indicators

Deck Style

Floating Deck

Deck Style Description

Full-floating UltraCut Series 6. Side discharge standard, with molded discharge chute and option to mulch.

Width / Cutting Deck

72"

Deck Construction

10-gauge top that is formed and continuously seam welded, 7-gauge side skirt

Cutting Heights

1.5" to 5.0" in 0.25" increments

Blade Tip Speed

Approximately 18,500 fpm

Blades

3 Blades at 24.50" Length

Width

84.83"

Height

48.75"

Curb Weight

1400

Length

77.11"
