Description

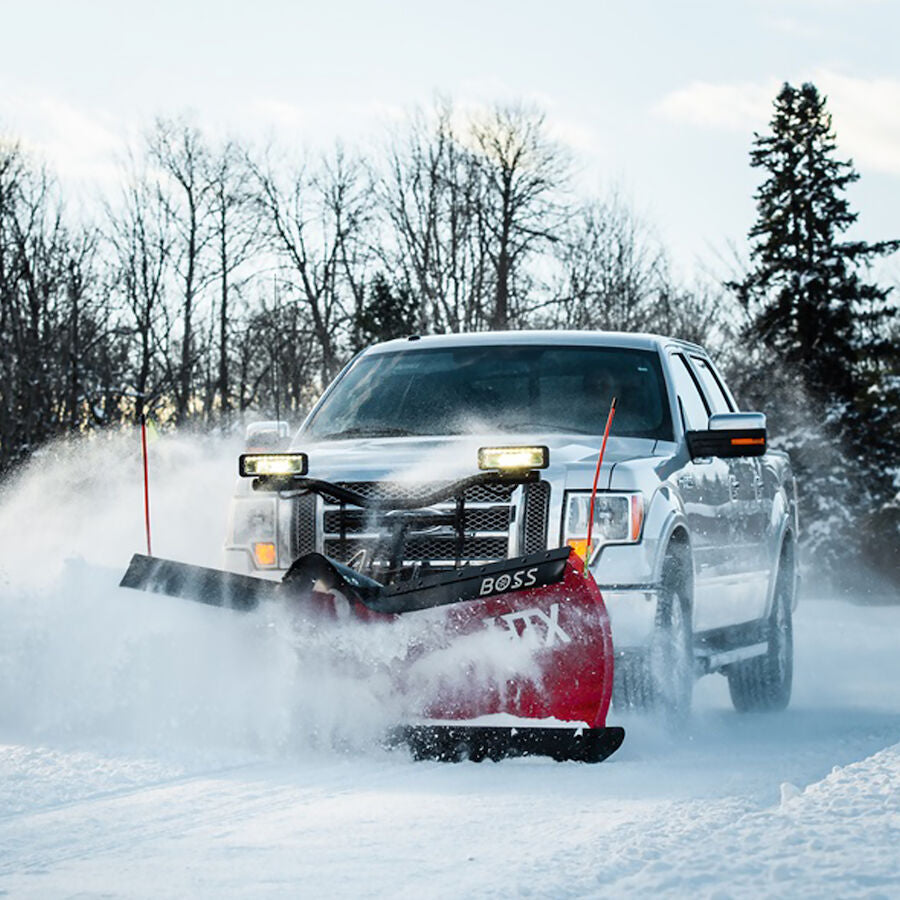

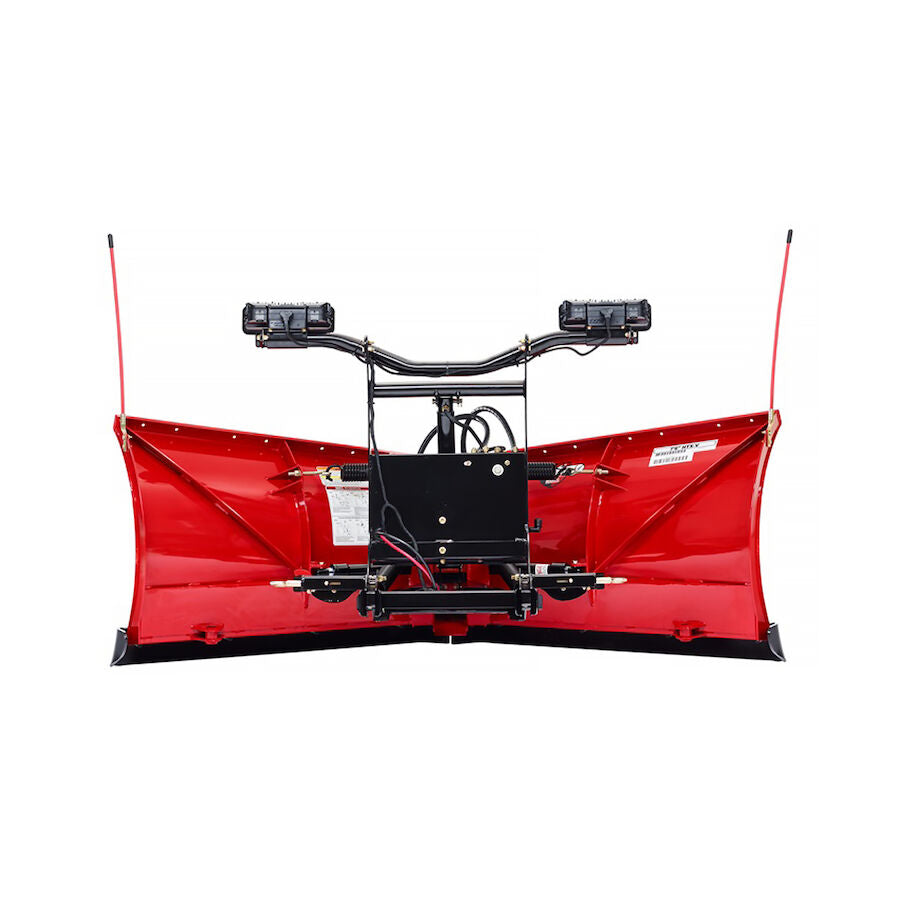

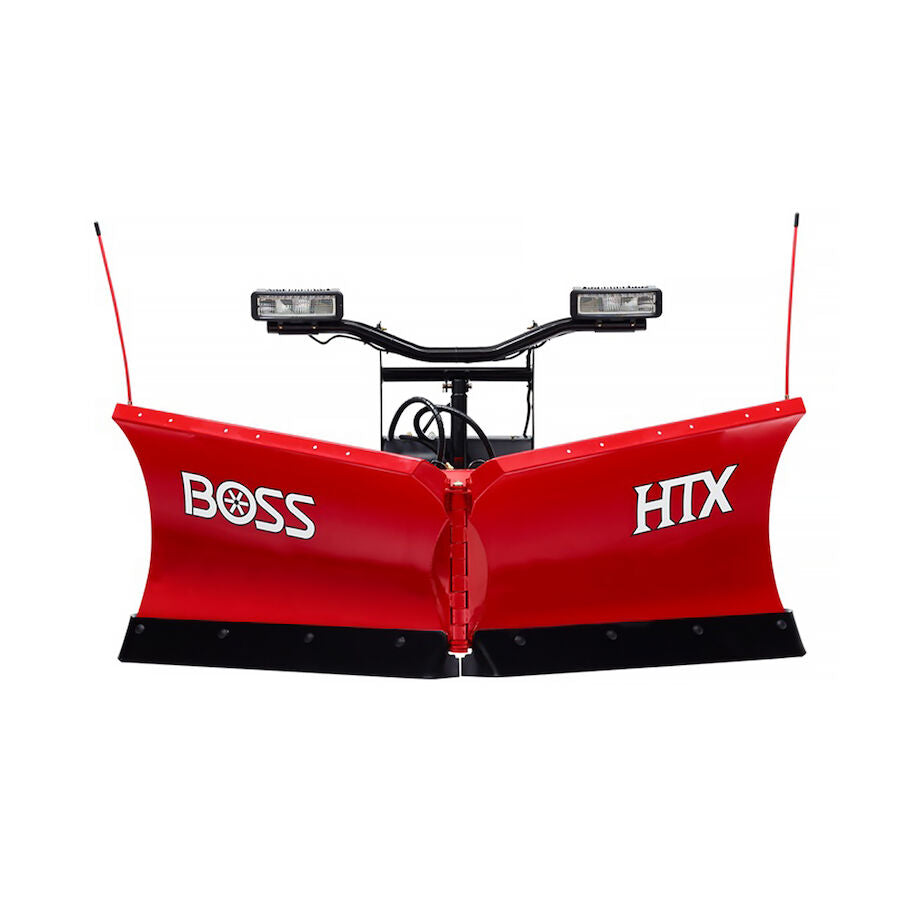

Engineered to bring the power of BOSS full-size v-plows to your half-ton truck, the Steel HTX V delivers unmatched performance in a compact, lightweight design. With flared blade wings and an enhanced curl, it’s built to throw snow higher and farther than conventional straight blades, ensuring maximum efficiency and control. Whether you’re clearing driveways or parking lots, this plow gives you the strength and reliability needed to take on winter’s toughest challenges. The HTX V is equipped with a full moldboard trip system for superior protection. When obstacles are encountered, the entire blade trips forward, absorbing impact and reducing stress on both your truck and plow. This innovative design enhances durability to minimize downtime, allowing you to Restore Order without interruption.
Request a Quote
BOSS Snowplow 7'6" Steel HTX V-Blade
Thank you!
Your quote request has been received. We'll be in touch shortly.
Specifications
| Specifications | 8' Stainless Steel HTX V-Blade | 7'6" Steel HTX V-Blade | 7'6" Stainless Steel HTX V-Blade | 7' Steel HTX | 7'6" Steel HTX | 7' Stainless Steel HTX | 7'6" Stainless Steel HTX | 7' Poly HTX | 7'6" Poly HTX |
|---|---|---|---|---|---|---|---|---|---|
| Attachment System | SmartHitch 2 | SmartHitch 2 | SmartHitch 2 | SmartHitch 2 | SmartHitch 2 | SmartHitch 2 | SmartHitch 2 | SmartHitch 2 | SmartHitch 2 |
| Blade Height | 32.5 in (82.55 cm) at end 25 in (63 cm) at center | 32 in (81 cm) at end 25 in (63 cm) at center | 32 in (81 cm) at end 25 in (63 cm) at center | 26 in (66 cm) | 26 in (66 cm) | 26 in (66 cm) | 26 in (66 cm) | 26 in (66 cm) | 26 in (66 cm) |
| Blade Material | Stainless Steel | Steel | Stainless Steel | Steel | Steel | Stainless Steel | Stainless Steel | Poly | Poly |
| Blade Size | 8 ft. | 7 ft. 6 in. | 7 ft. 6 in. | 7 ft. | 7 ft. 6 in. | 7 ft. | 7 ft. 6 in. | 7 ft. | 7 ft. 6 in. |
| Blade Thickness | 14-ga 304 Stainless | 14-ga (0.19 cm) Mild Steel | 14-ga 304 Stainless | 14-ga (0.19 cm) Mild Steel | 14-ga (0.19 cm) Mild Steel | 14-ga 304 Stainless | 14-ga 304 Stainless | 0.25 in. (0.64 cm) Poly | 0.25 in. (0.64 cm) Poly |
| Blade Width (Scoop) | Curb Guard Width | 82 in (208.28 cm) | 74 in (188 cm) | 74 in (188 cm) | ||||||
| Blade Width (V-Position) | Curb Guard Width | 85 in (215.9 cm) | 81 in (206 cm) | 81 in (206 cm) | ||||||
| Blade Width | Curb Guard Width | 96 in. (244 cm) | 90 in. (229 cm) | 90 in. (229 cm) | 84 in. (213 cm) | 90 in. (229 cm) | 84 in. (213 cm) | 90 in. (229 cm) | 84 in. (213 cm) | 90 in. (229 cm) |
| Cutting Edge | 3/8 in x 6 in (1 cm x 15 cm) | 3/8 in x 6 in (1 cm x 15 cm) | 3/8 in x 6 in (1 cm x 15 cm) | 3/8 in x 6 in (1 cm x 15 cm) | 3/8 in x 6 in (1 cm x 15 cm) | 3/8 in x 6 in (1 cm x 15 cm) | 3/8 in x 6 in (1 cm x 15 cm) | 3/8 in x 6 in (1 cm x 15 cm) | 3/8 in x 6 in (1 cm x 15 cm) |
| D-Force | Not an Option | Not an Option | Not an Option | Optional | Optional | Optional | Optional | Optional | Optional |
| Lift Cylinder | 1 3/4" x 1 1/8 " x 10" (5 cm x 3 cm x 25 cm) | 1 3/4" x 1 1/8 " x 10" (5 cm x 3 cm x 25 cm) | 1 3/4" x 1 1/8 " x 10" (5 cm x 3 cm x 25 cm) | 1 3/4" x 1 1/8 " x 10" (5 cm x 3 cm x 25 cm) | 1 3/4" x 1 1/8 " x 10" (5 cm x 3 cm x 25 cm) | 1 3/4" x 1 1/8 " x 10" (5 cm x 3 cm x 25 cm) | 1 3/4" x 1 1/8 " x 10" (5 cm x 3 cm x 25 cm) | 1 3/4" x 1 1/8 " x 10" (5 cm x 3 cm x 25 cm) | 1 3/4" x 1 1/8 " x 10" (5 cm x 3 cm x 25 cm) |
| Lighting | SL3 L.E.D. with Ice Shield Technology | SL3 L.E.D. with Ice Shield Technology | SL3 L.E.D. with Ice Shield Technology | SL3 L.E.D. with Ice Shield Technology | SL3 L.E.D. with Ice Shield Technology | SL3 L.E.D. with Ice Shield Technology | SL3 L.E.D. with Ice Shield Technology | SL3 L.E.D. with Ice Shield Technology | SL3 L.E.D. with Ice Shield Technology |
| Plow Shoes | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional |
| Plow Type | V-Plow | V-Plow | V-Plow | Straight-Blade | Straight-Blade | Straight-Blade | Straight-Blade | Straight-Blade | Straight-Blade |
| Reinforcement Ribs | 6 Vertical, 2 Diagonal | 6 Vertical, 2 Diagonal | 6 Vertical, 2 Diagonal | 4 Vertical, 2 Diagonal | 6 Vertical, 2 Diagonal | 4 Vertical, 2 Diagonal | 6 Vertical, 2 Diagonal | 4 Vertical, 2 Diagonal | 6 Vertical, 2 Diagonal |
| SmartLock Cylinders | 1 1/4" x 8 1/4" (3 cm x 21 cm) | 1 1/4" x 8 1/4" (3 cm x 21 cm) | 1 1/4" x 8 1/4" (3 cm x 21 cm) | ||||||
| Trip Mechanism | Full-Trip | Full-Trip | Full-Trip | Full-Trip | Full-Trip | Full-Trip | Full-Trip | Full-Trip | Full-Trip |
| Trip Springs | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Truck Applications | 1/2 Ton | 1/2 Ton | 1/2 Ton | 1/2 Ton | 1/2 Ton | 1/2 Ton | 1/2 Ton | 1/2 Ton | 1/2 Ton |
| Vehicle | Truck | Truck | Truck | Truck | Truck | Truck | Truck | Truck | Truck |
| Weight | 550 lbs / 249 kg | 490 lbs / 222.26 kg | 535 lbs / 242.67 kg | 393 lbs / 178 kg | 440 lbs / 200 kg | 393 lbs / 178 kg | 440 lbs / 200 kg | 367 lbs / 166 kg | 416 lbs / 188 kg |
